C0072

DTC C0072 Left TCS Solenoid Inoperative






Conditions for Setting the DTC
^ Solenoid valve circuit open or ground short.
^ Short the solenoid valve circuit to power.

System Conditions When the DTCs Presents
^ ABS/TCS function inoperative.
^ ABS warning lamp ON.
^ TCS warning lamp ON.

Conditions for Clearing the DTC
^ If the conditions that the DTC C0072/74 no longer presents, the DTC can be cleared by scan tool.

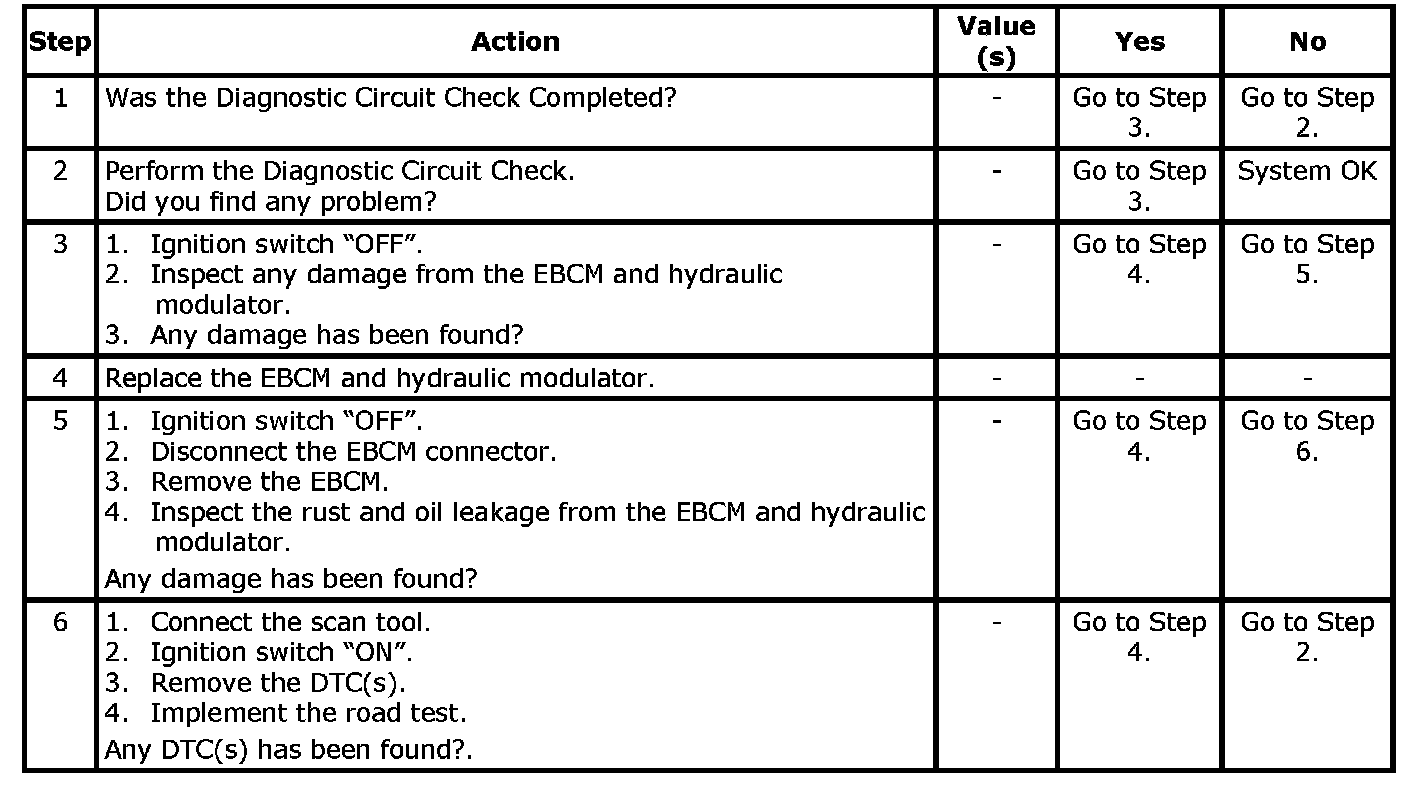

Steps 1-6:

^ The DTC that has not occurred in 100 drive cycles will be cleared from the history data.
