C0017

DTC C0017 Pump Motor Short to Ground

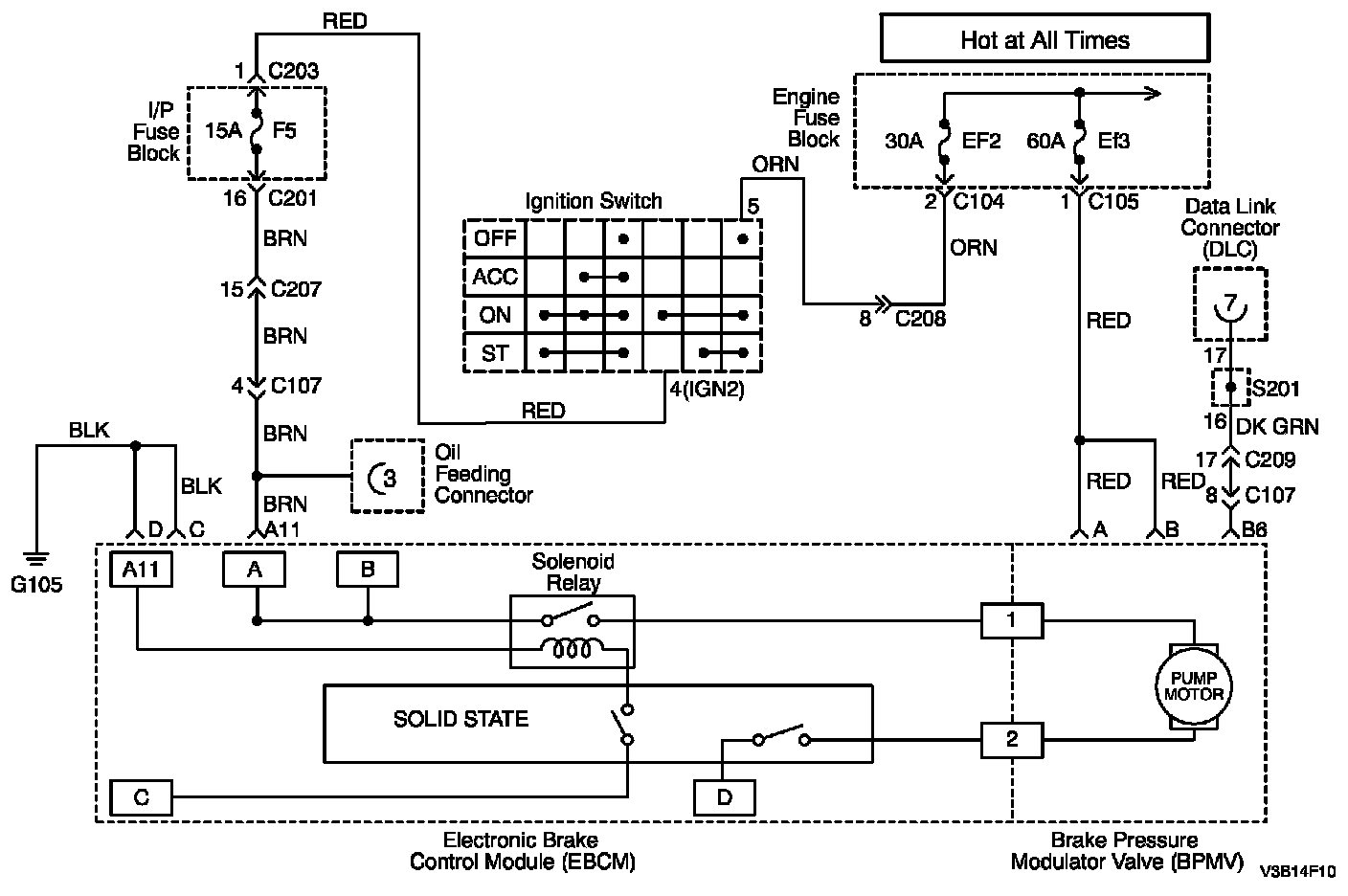

Circuit Description
The pump motor is contained within the Brake Pressure Modulator Valve (BPMV). The pump motor ground is supplied though terminal D of the EBCM.

Conditions for Setting the DTC
C0017 can only be set with the key in the on position, pump motor is off, and the EBCM detected a short to ground on the pump motor circuit.

Action Taken When the DTC Sets
^ The solenoid relay opens, removing power from the pump motor and solenoids.
^ DTC C0017 is stored.
^ ABS disabled, ABS Warning Lamp is turned on.

Conditions for Clearing the DTC
^ If the conditions that set DTC C0017 are no longer present, the DTC may be cleared by using the proper scan tool.
^ The DTC that has not occurred in 100 drive cycles will be cleared from history data.

Diagnostic Aids
Typical Causes of DTC C0017.
1. Faulty BPMV.

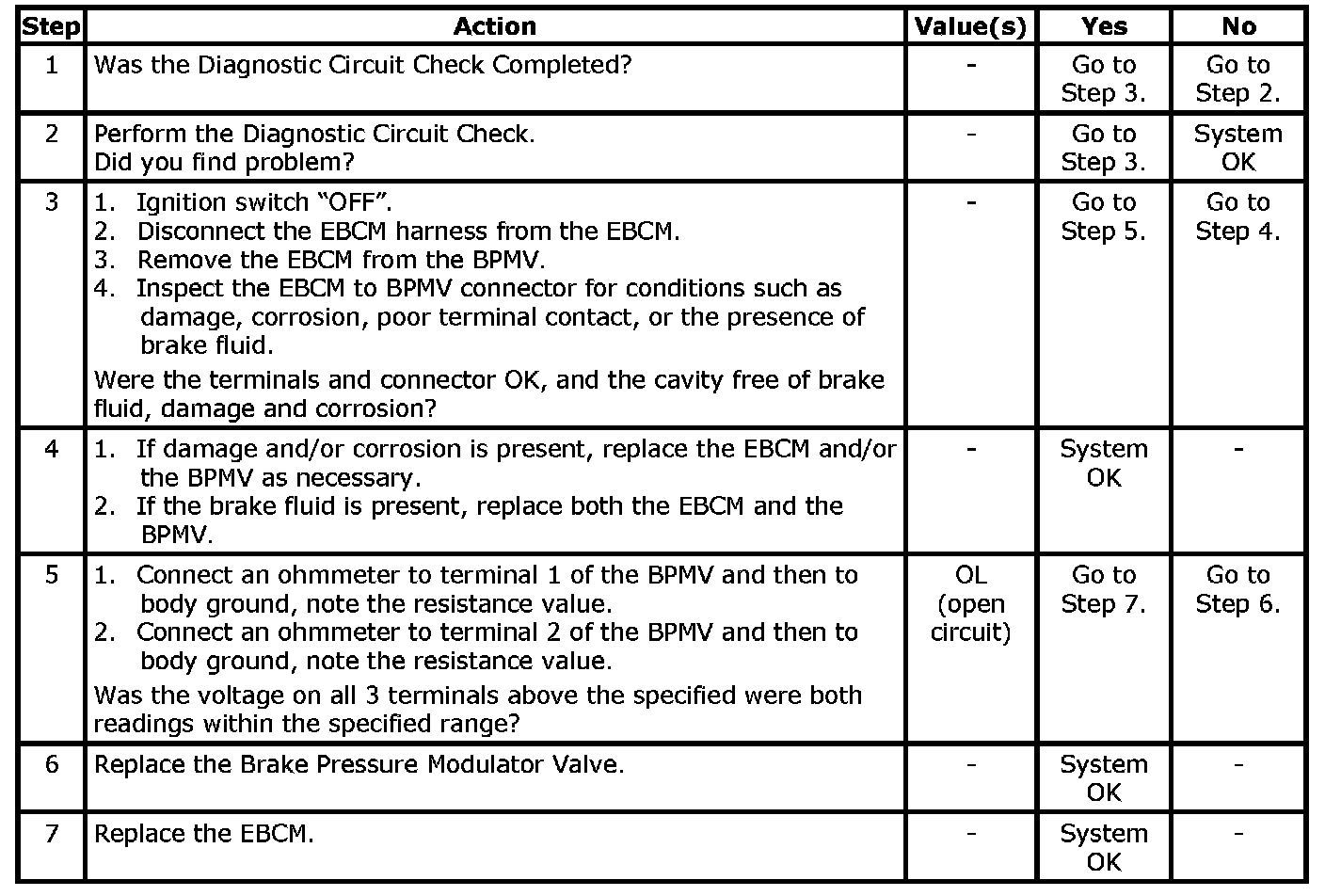

Steps 1-7:

2. Faulty EBCM.
