Left Transaxle Mounting Bracket: Installation

  1. Install the left four transaxle mounting bracket bolts.

    Tighten

    1. Tighten the left four transaxle mounting bracket bolts to 40 N.m (30 lb-ft).
  2. Install the bolt and nut to the left transaxle mounting bracket cage.

    Tighten

    1. Tighten the bolt and nut to 65 N.m (48 lb-ft).

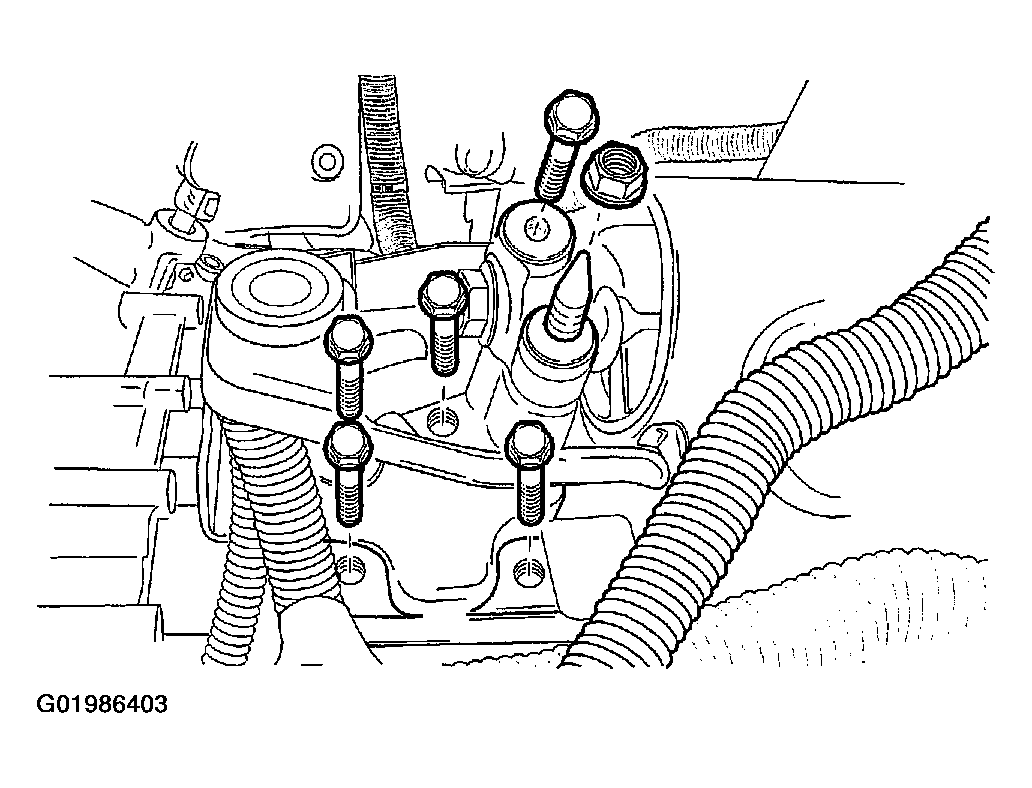

    3. Fig 1: Installing Bolt & Nut To Left Transaxle Mounting Bracket Cage
    G01986403Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the engine support fixture DW110-060.
  4. Install the air filter housing.
Fig 2: Installing Air Filter Housing
G01986404Courtesy of SUZUKI OF AMERICA CORP.
