Solenoid Valve, Clutch and Brake Operation

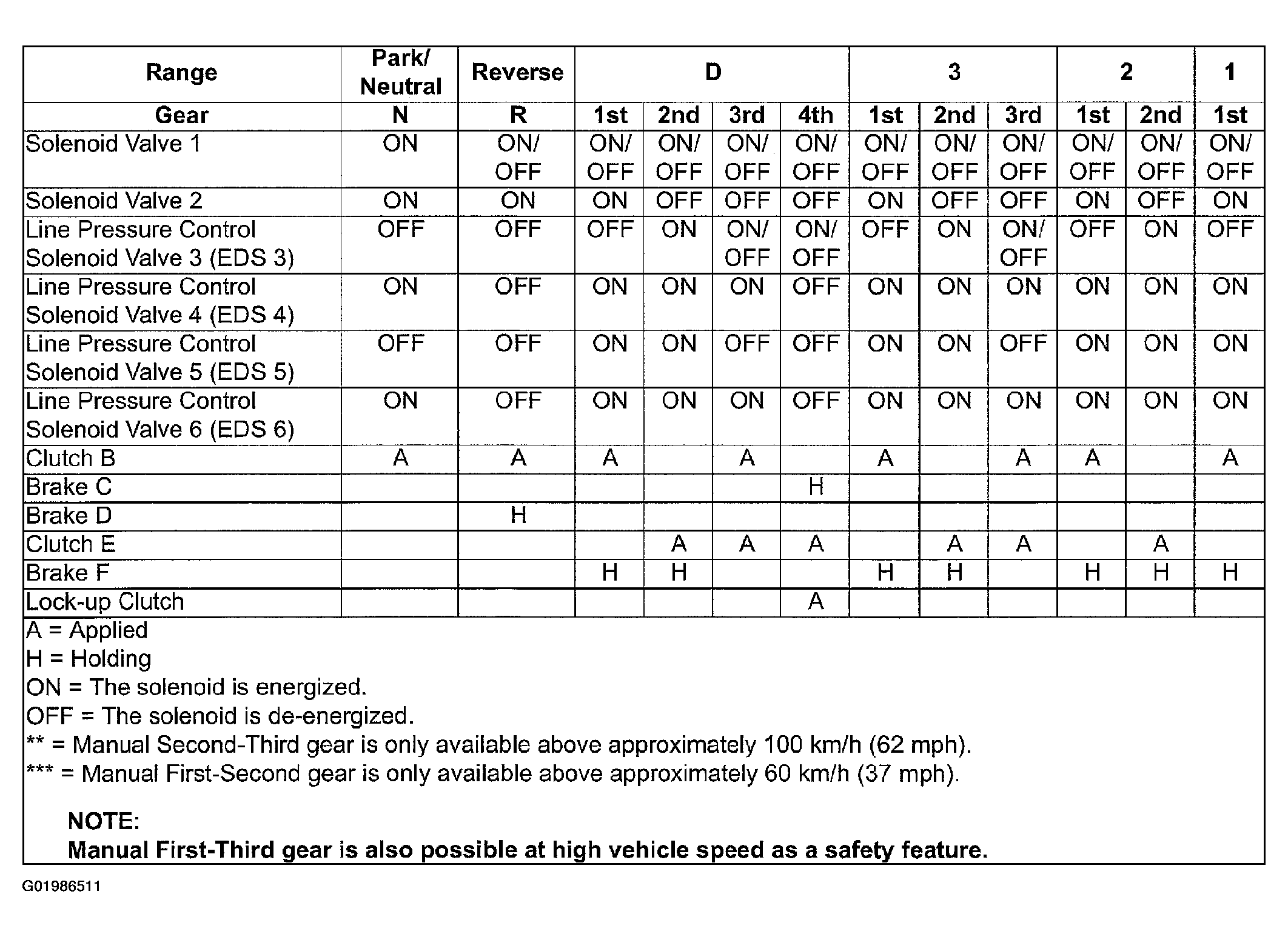

Fig 1: Solenoid Valve, Clutch & Brake Operation Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
