Special Tool

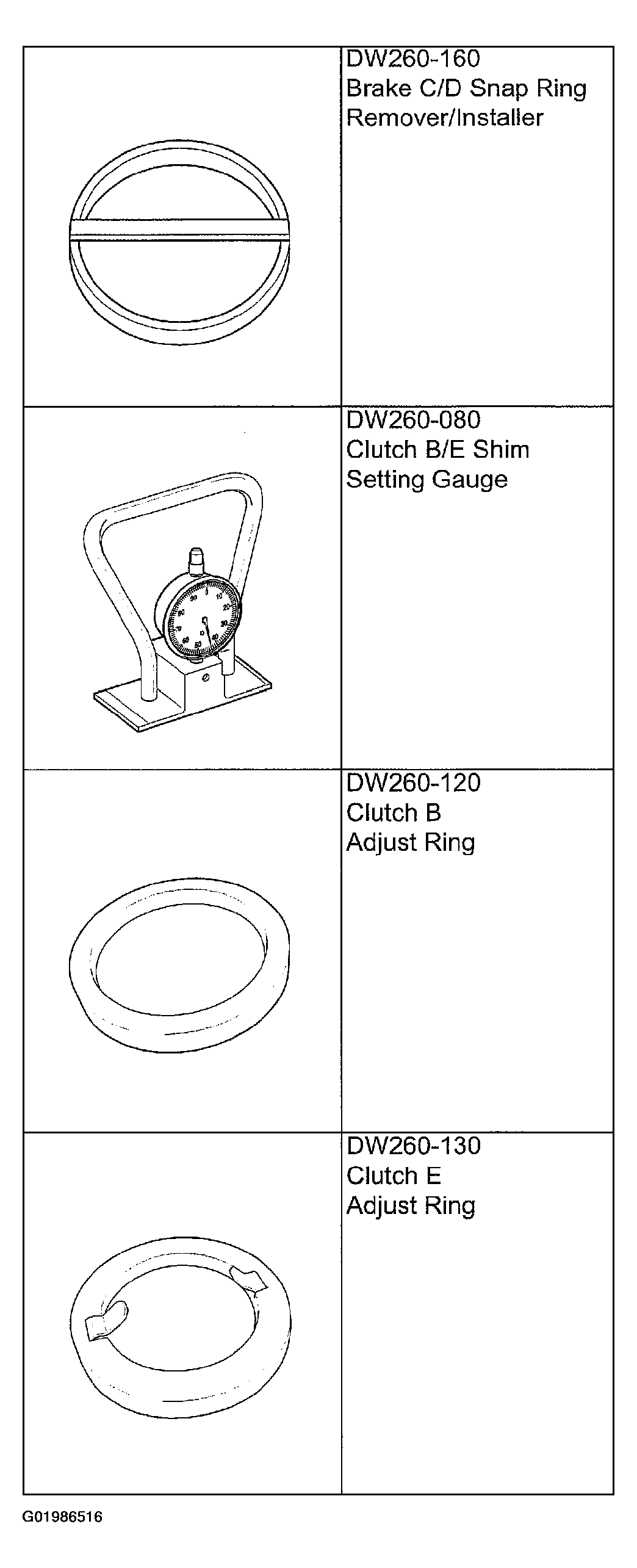

Fig 1: Identifying Special Tools (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

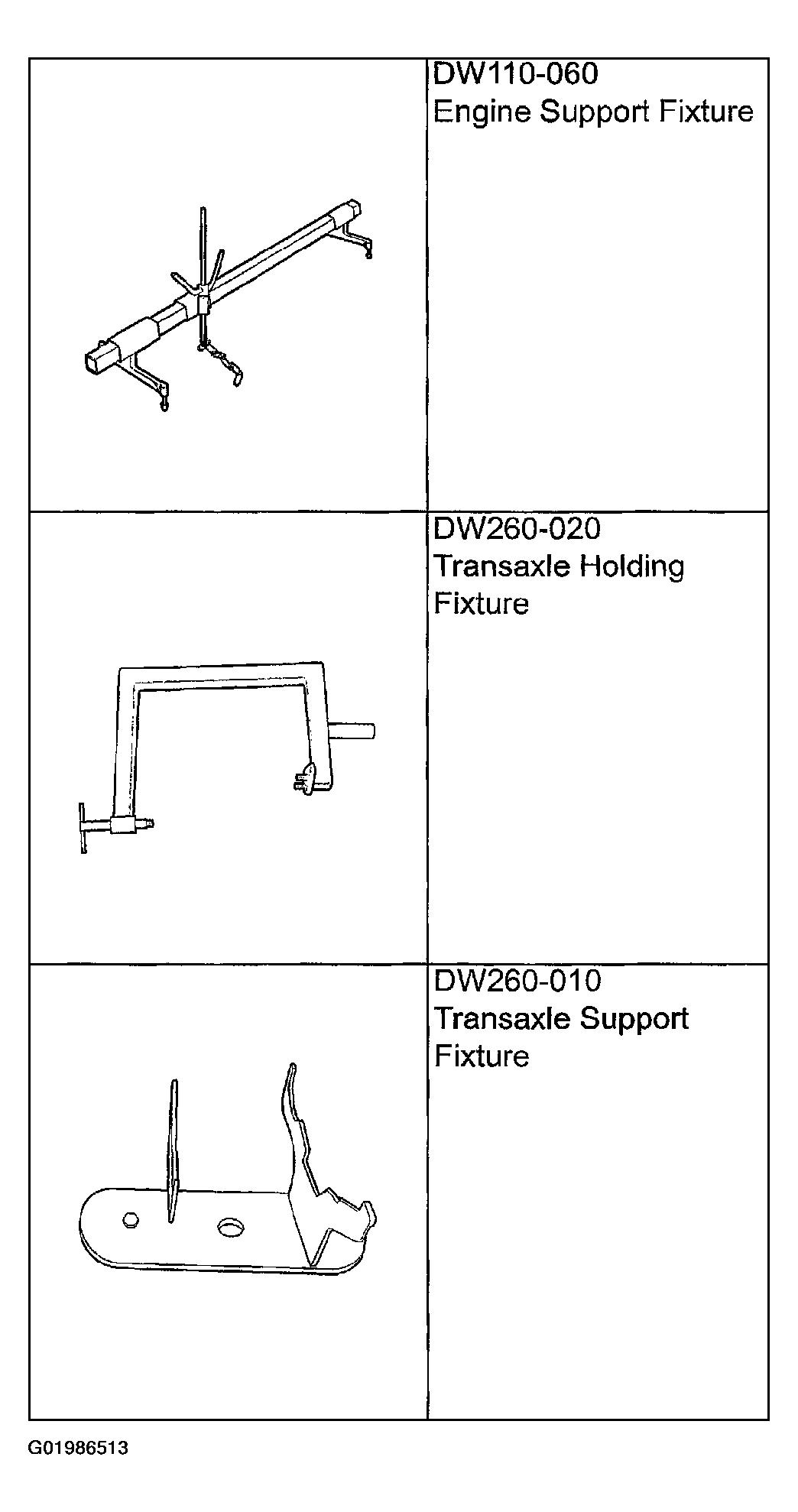

Fig 2: Identifying Special Tools (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

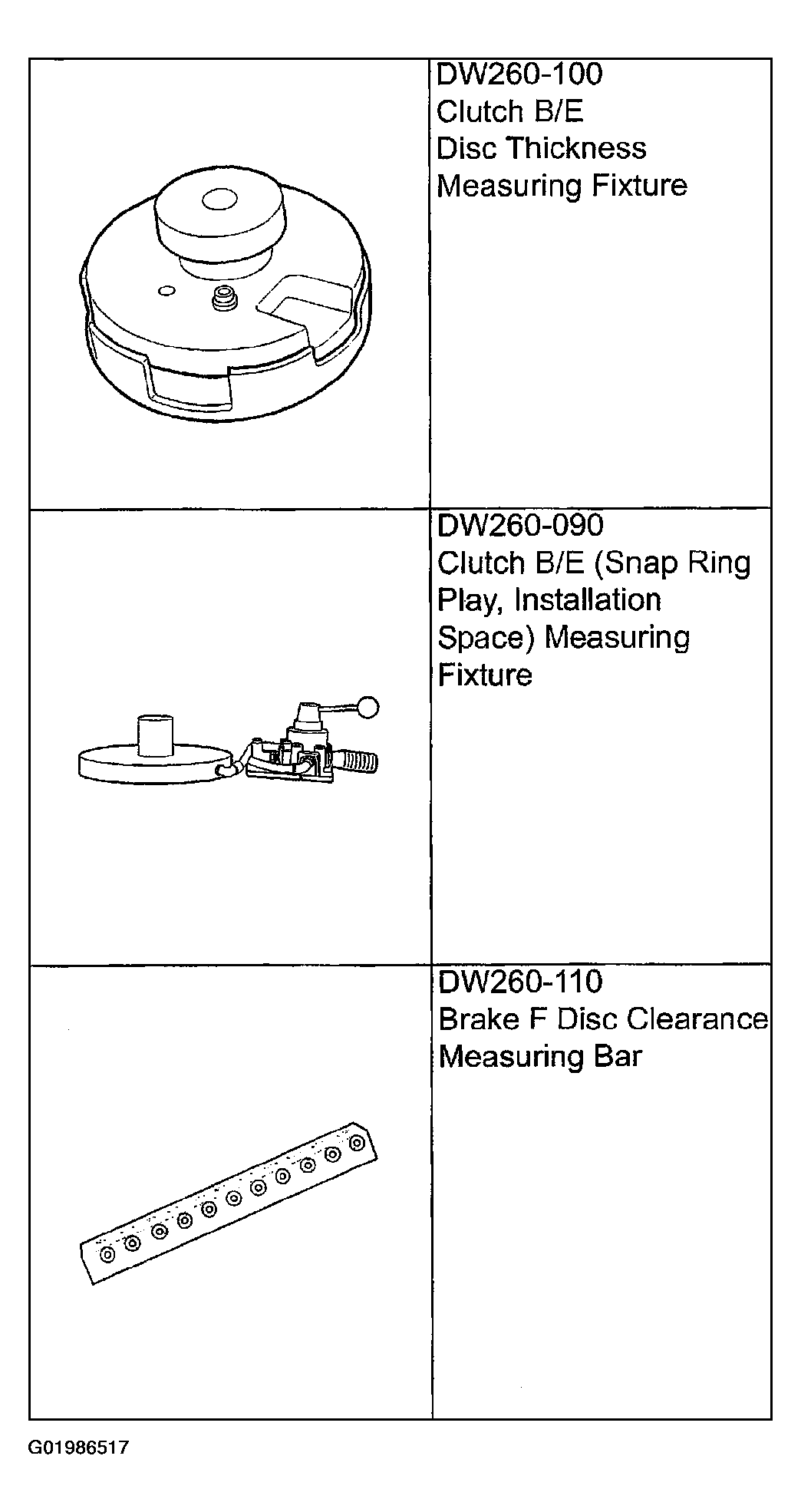

Fig 3: Identifying Special Tools (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

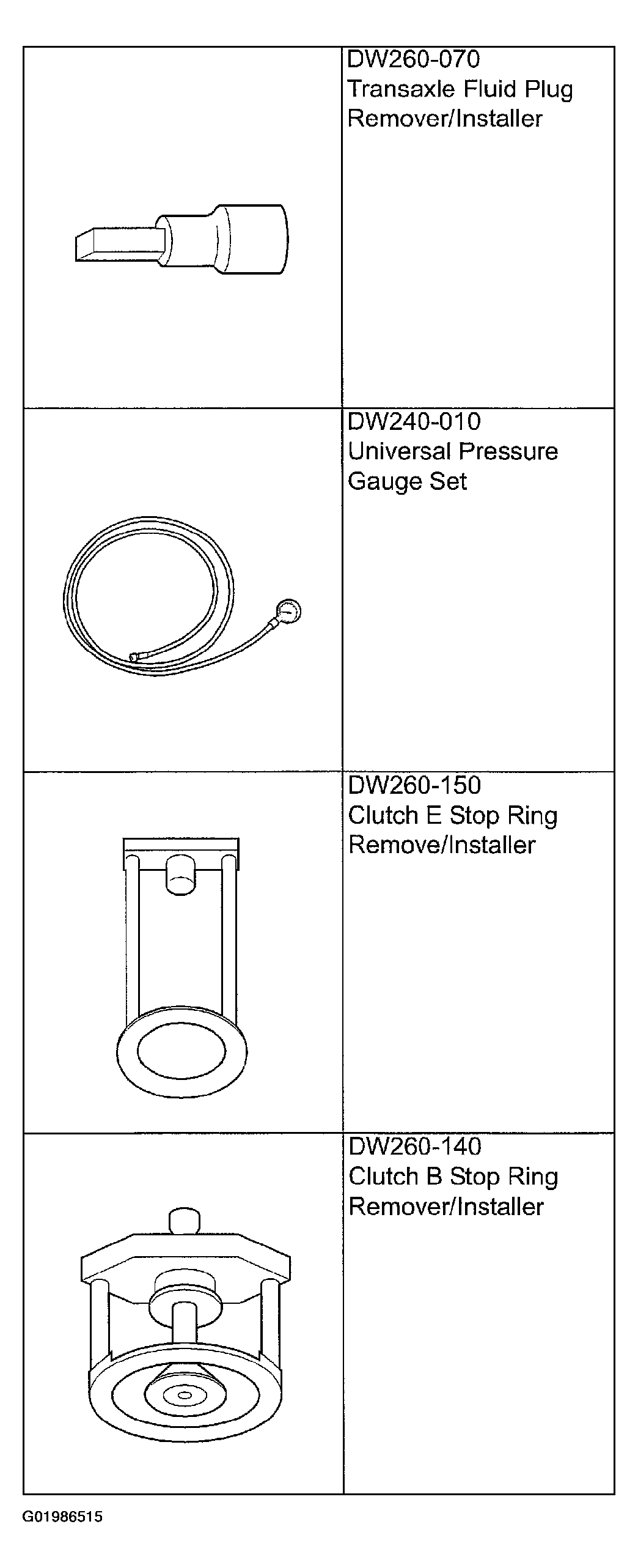

Fig 4: Identifying Special Tools (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

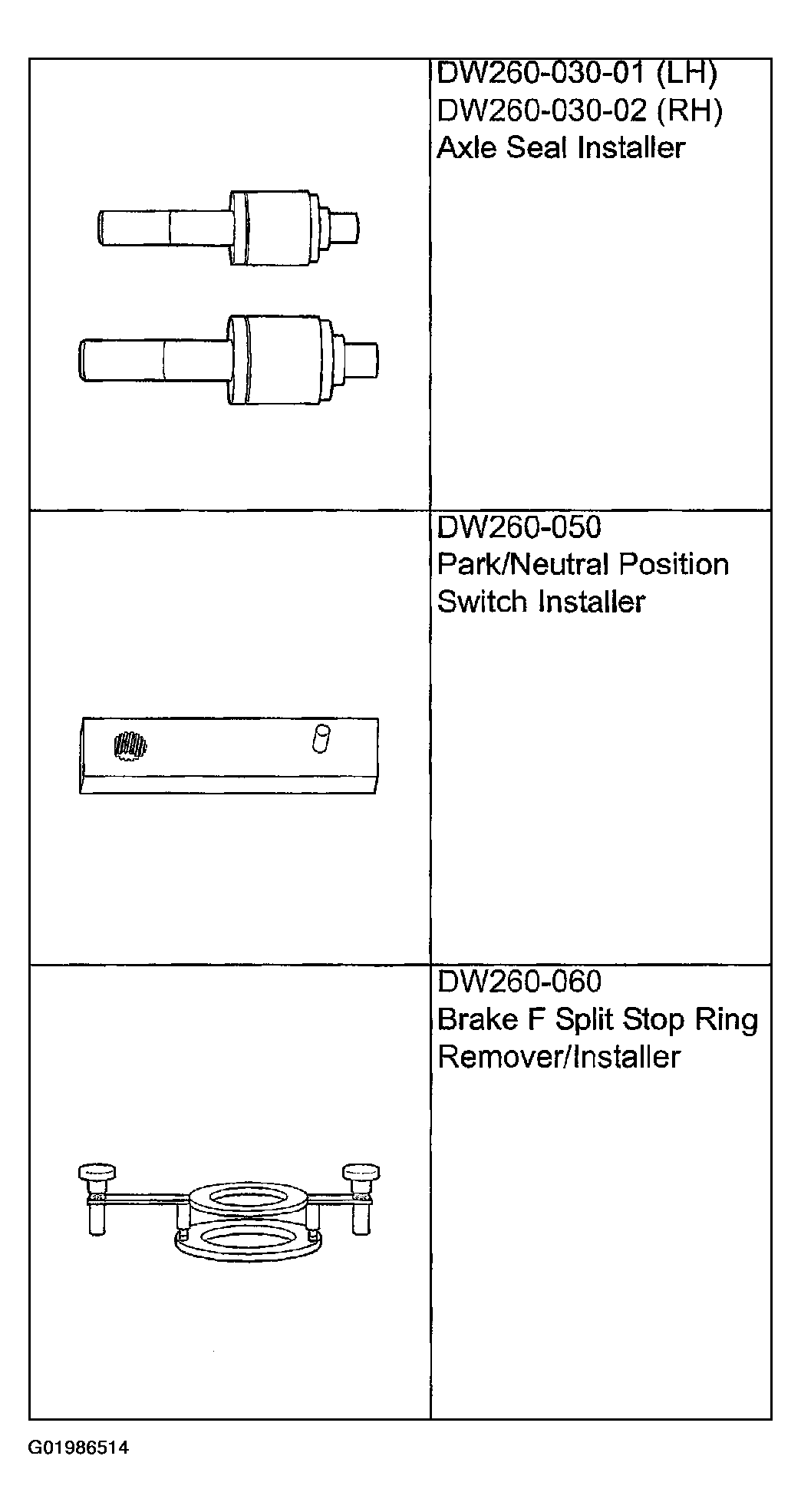

Fig 5: Identifying Special Tools (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
