Torque Converter Housing Disassembly and Assembly

  1. Remove the torque converter bolts.
  2. Hit the torque converter housing lightly.
  3. Remove the torque converter housing.

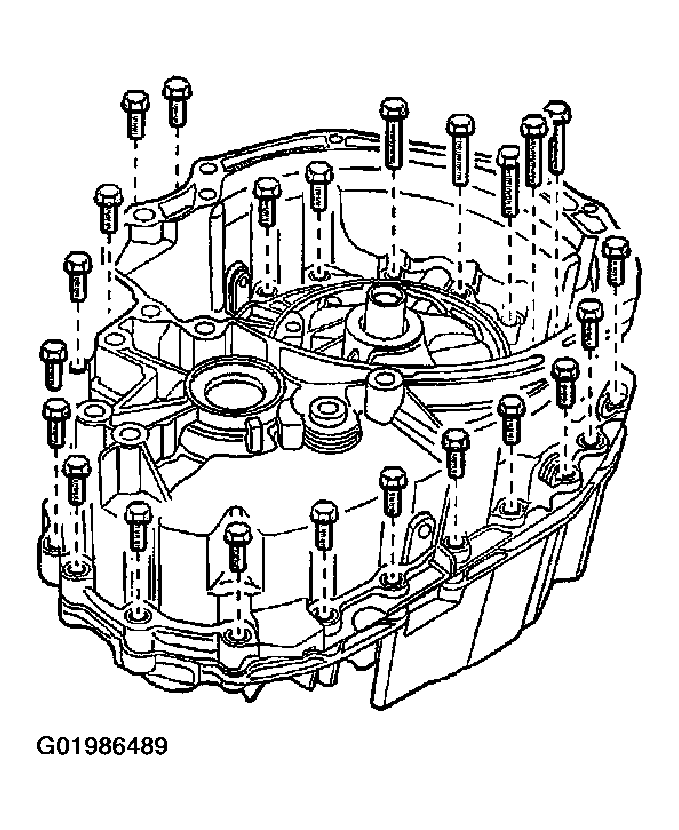

    Fig 1: Removing Torque Converter Housing
    G01986489Courtesy of SUZUKI OF AMERICA CORP.

    Installation Notice

    • First pre-tighten the bolts in the following order. (7,20)-(12,23)-(16,4)
    1. Tighten the bolts to 15 N.m (11 lb-ft).
    • Then, tighten the bolts in the following order. (15,3)-(16,4)-(14,5)-(13,23)-(12,22)-(11,21)-(10,20)-(9,19)-(8,18)-(7,17)-(6)-(1,2)
    • Last, in numerical order, tighten the bolts all the way. (1-23)
      1. Tighten the bolts to 23 N.m (17 lb-ft).

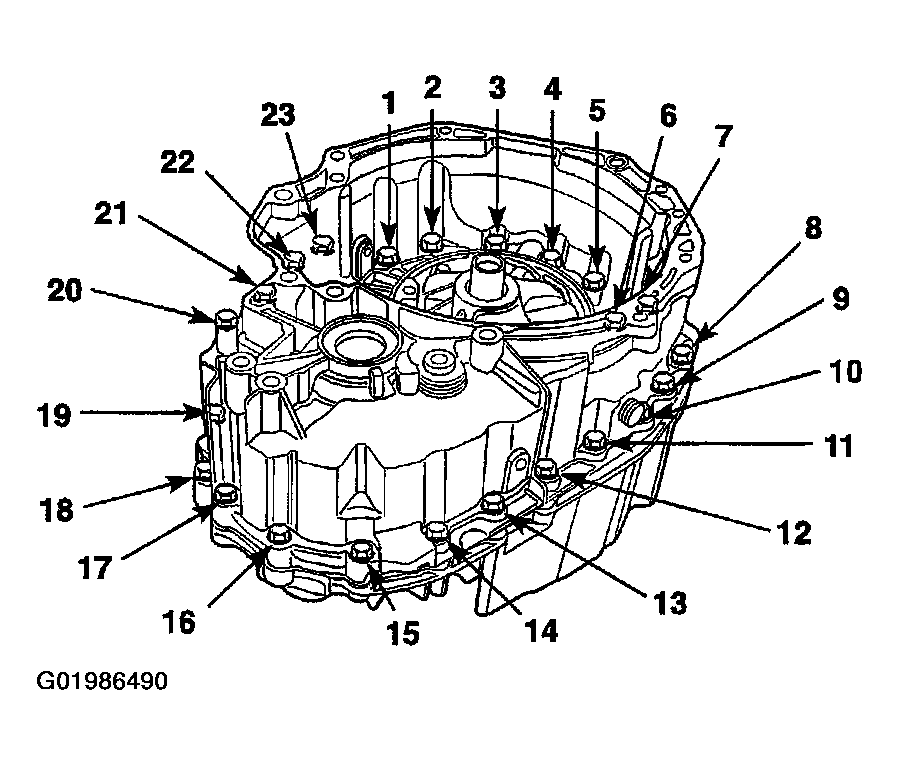

    4. Fig 2: Removing Torque Converter Housing
    G01986490Courtesy of SUZUKI OF AMERICA CORP.
  4. Take out the metal gasket.
  5. Take out the paper gasket.
  6. Remove the oil filter bolt and oil filter.
    1. Tighten the oil filter bolt to 10 N.m (89 lb-in).

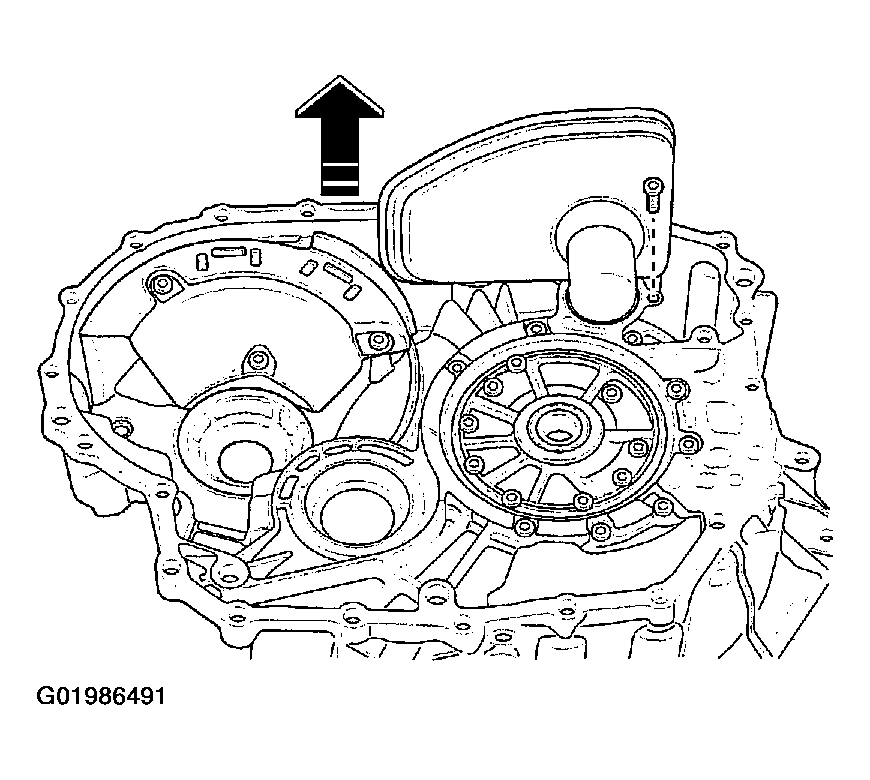

    7. Fig 3: Removing Oil Filter Bolt & Oil Filter
    G01986491Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the baffle plate bolts and baffle plate.
    1. Tighten the baffle plate bolts to 10 N.m (89 lb-in).

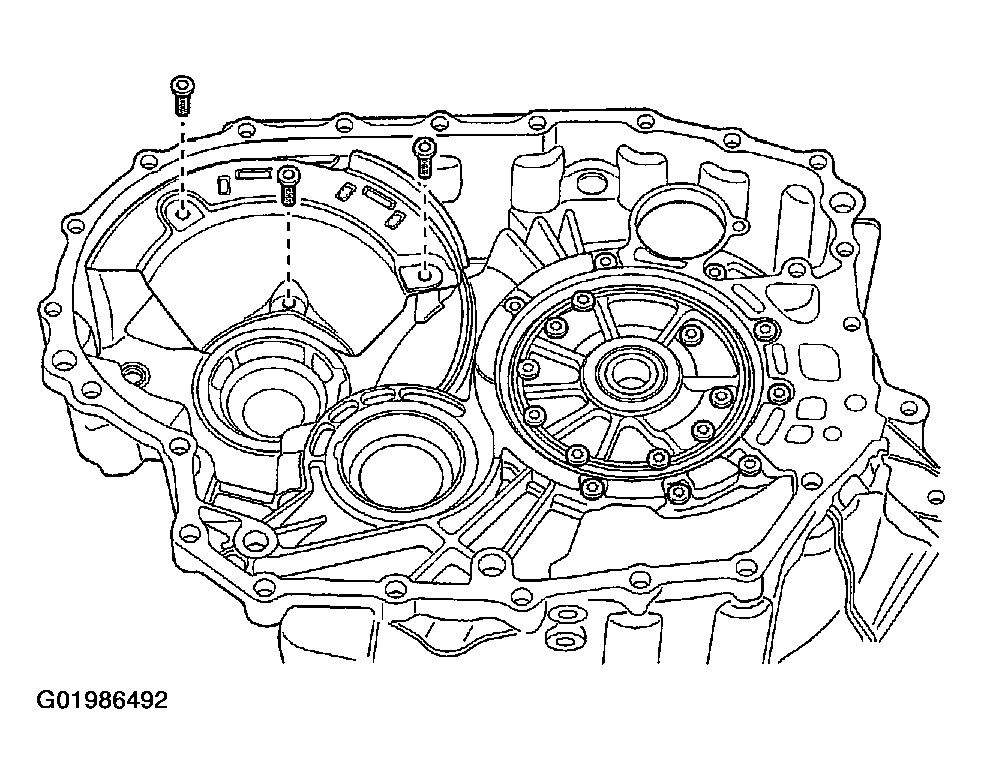

    8. Fig 4: Removing Baffle Plate Bolts & Baffle Plate
    G01986492Courtesy of SUZUKI OF AMERICA CORP.
  8. Remove the line pressure measurement plug.
  9. Installation should follow the removal procedure in the reverse order.
    1. Tighten the line pressure measurement plug to 20 N.m (15 lb-ft).

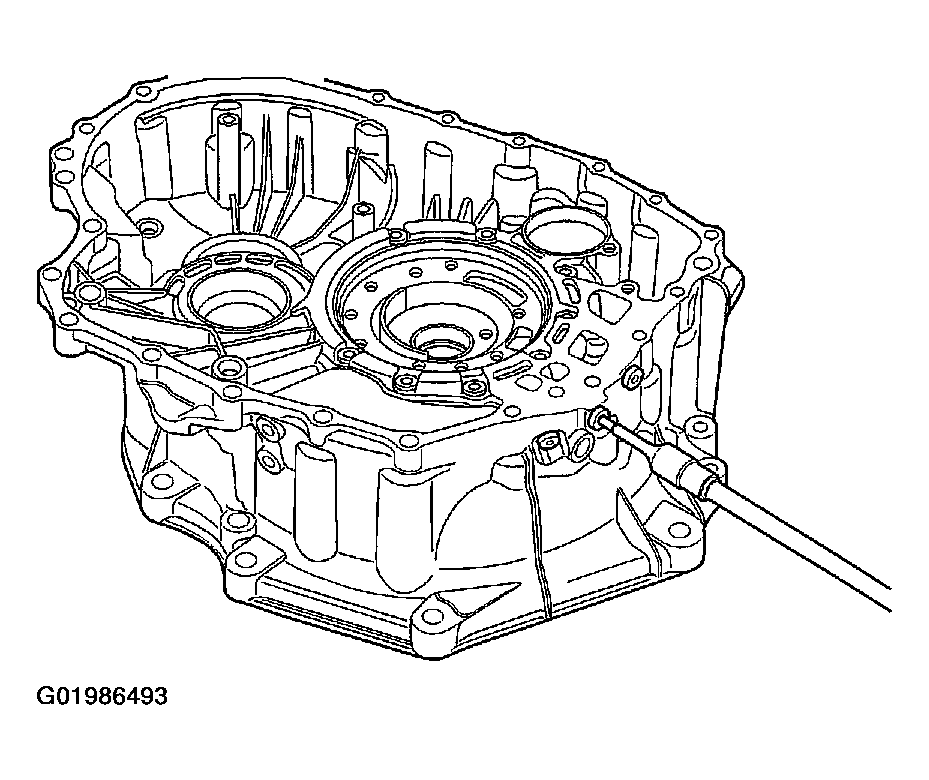

Fig 5: Installing In Reverse Order Of Removal
G01986493Courtesy of SUZUKI OF AMERICA CORP.
