Side Shaft Disassembly and Assembly

1. Remove the differential. Refer to Side Shaft Disassembly and Assembly  .
2. Tilt and remove the side shaft.
3. Installation should follow the removal procedure in the reverse order.

Removal Notice

• Don't disassemble the differential to avoid incorrect operation.

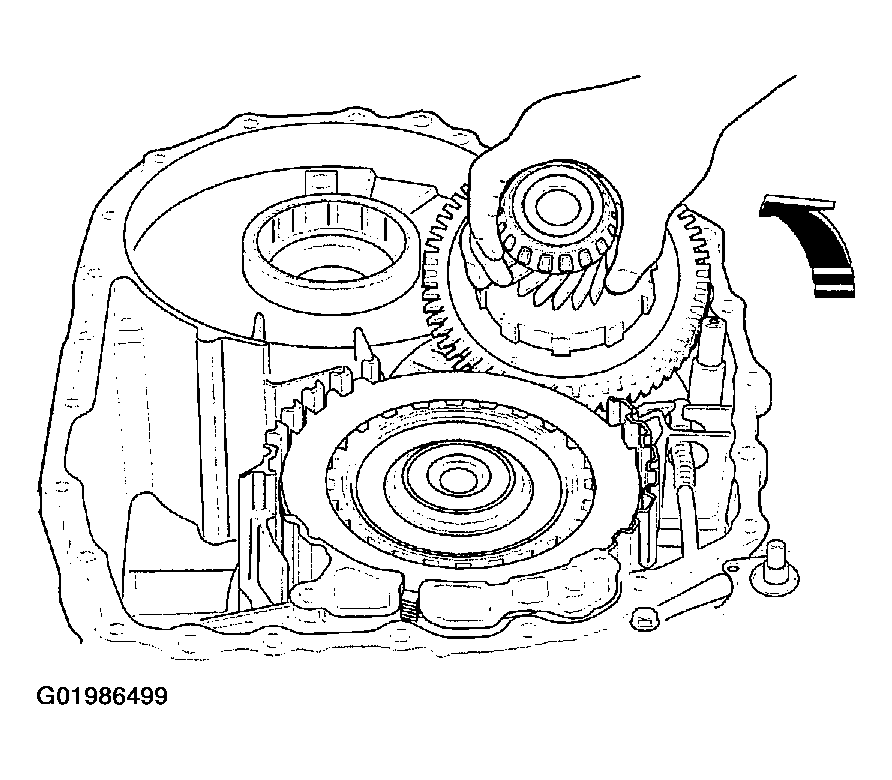

Fig 1: Installing Differential

Courtesy of SUZUKI OF AMERICA CORP.
