Shift Mechanism Disassembly and Assembly

  1. Take out the select shaft clamping sleeve.

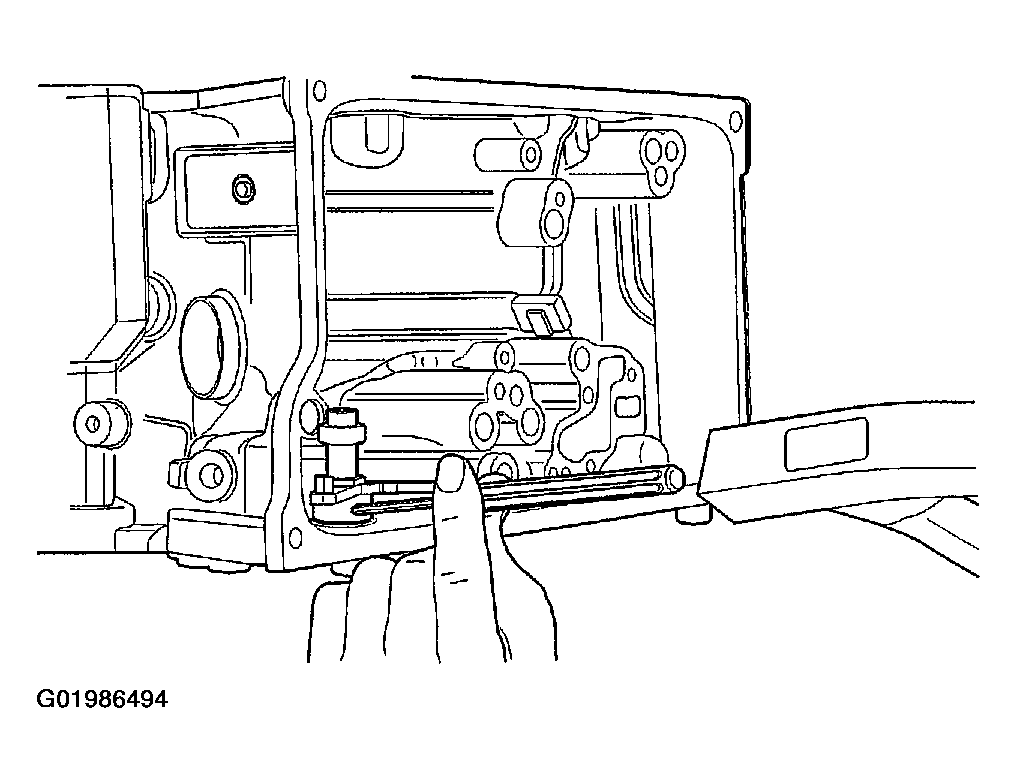

    2. Fig 1: Removing Select Shaft Clamping Sleeve
    G01986494Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the shift mechanism.
    • Shift mechanism is consist of select shaft, detent disc, connecting bar, stop bush.
  3. Installation should follow the removal procedure in the reverse order.

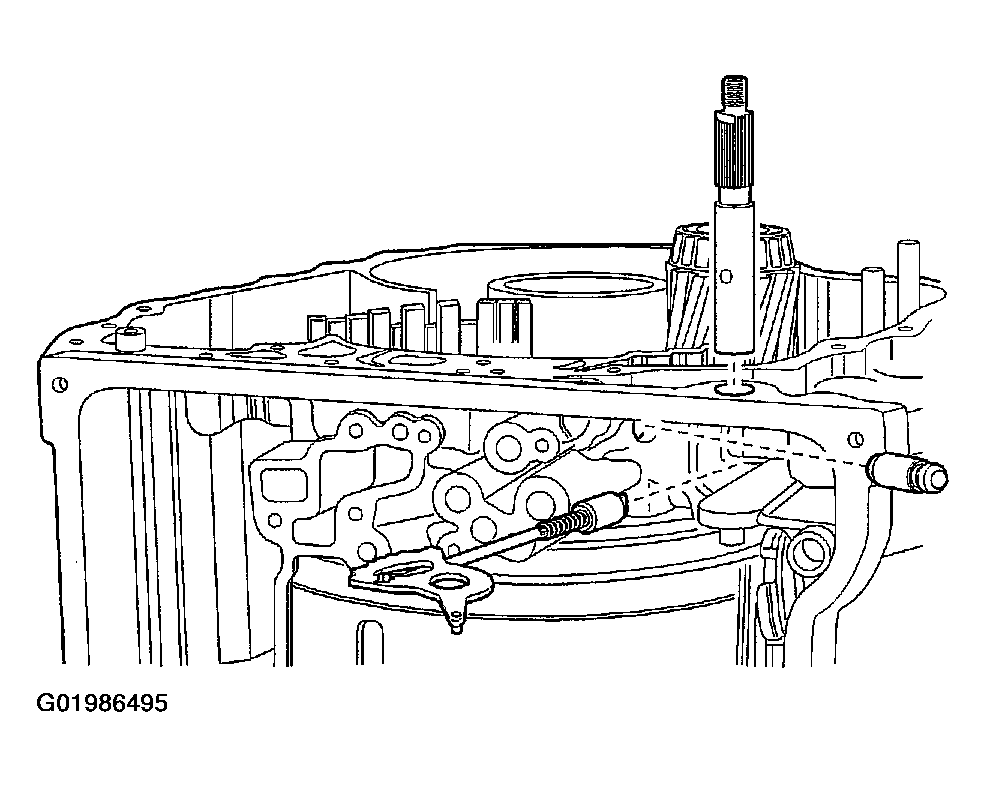

Fig 2: Installing Shift Mechanism
G01986495Courtesy of SUZUKI OF AMERICA CORP.
