Rear Cover Disassembly and Assembly

  1. Removal the valve body assembly. Refer to Valve Body Disassembly and Assembly  .
  2. Pull out sealing sleeve (brake C) with a kind of nail.
  3. Turn transaxle by 90°.

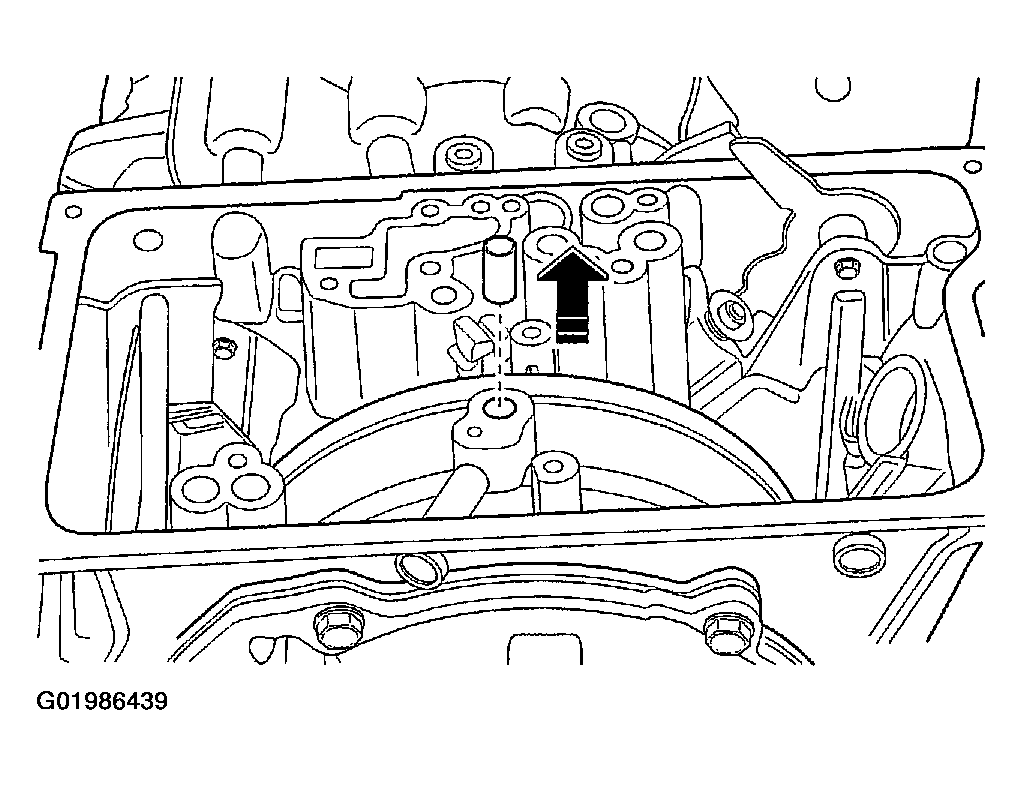

    4. Fig 1: Turning Transaxle
    G01986439Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the rear cover bolts.
  5. Hit the rear cover rightly.
  6. Remove the cover.
  7. Installation should follow the removal procedure in the reverse order.
    1. Tighten the rear cover bolts to 23 N.m (17 lb-ft).

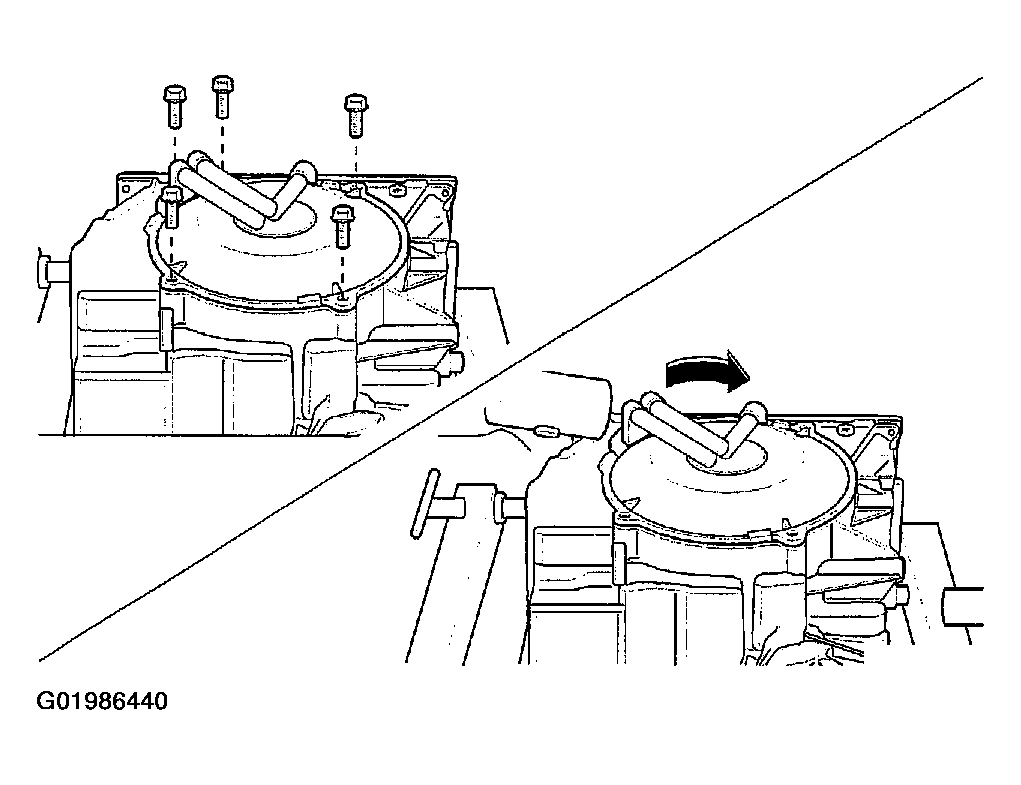

Fig 2: Installing Rear Cover In Reverse Order
G01986440Courtesy of SUZUKI OF AMERICA CORP.
