Park / Neutral Start Switch Removal

  1. Disconnect the negative battery cable.
  2. Remove the air filter housing.
  3. Disconnect the park/neutral position switch electrical connector.
  4. Disconnect the shift control cable and the retaining clip.

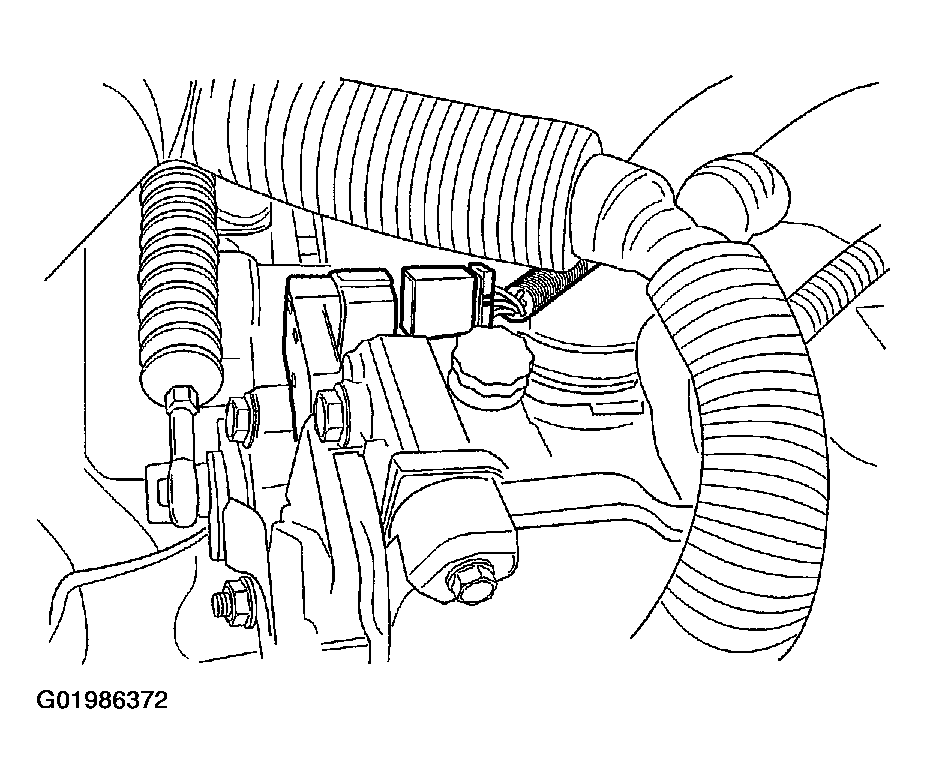

    5. Fig 1: Disconnecting Shift Control Cable & Retaining Clip
    G01986372Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the shift lever nut and the shift lever.

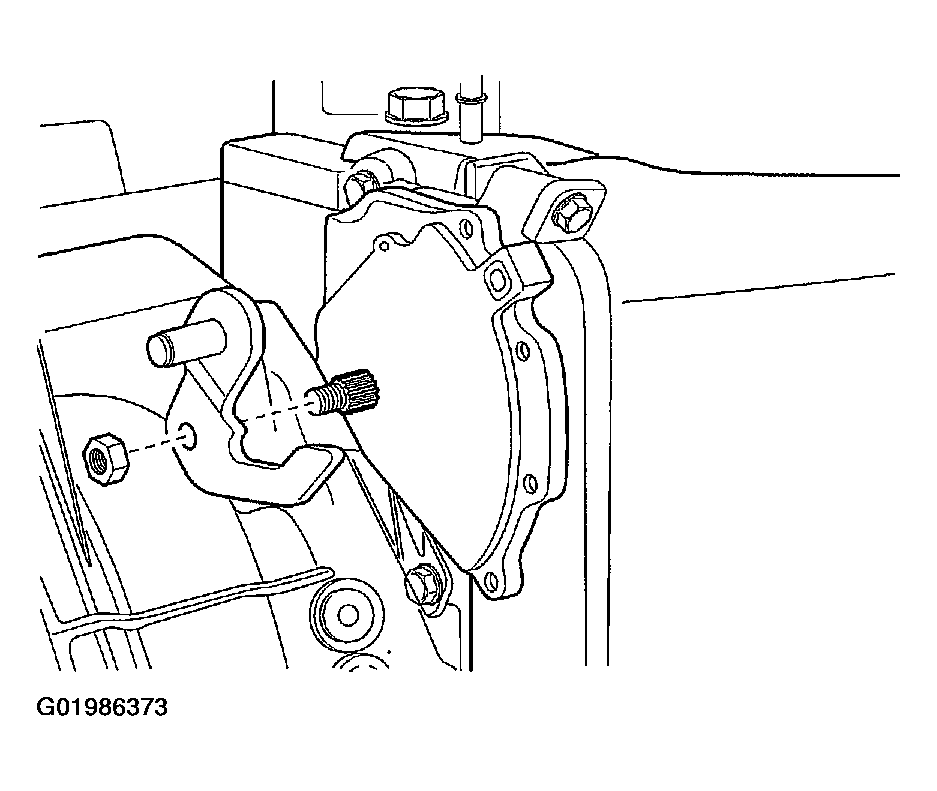

    6. Fig 2: Removing Shift Lever Nut & Shift Lever
    G01986373Courtesy of SUZUKI OF AMERICA CORP.
  6. Remove the park/neutral start switch.

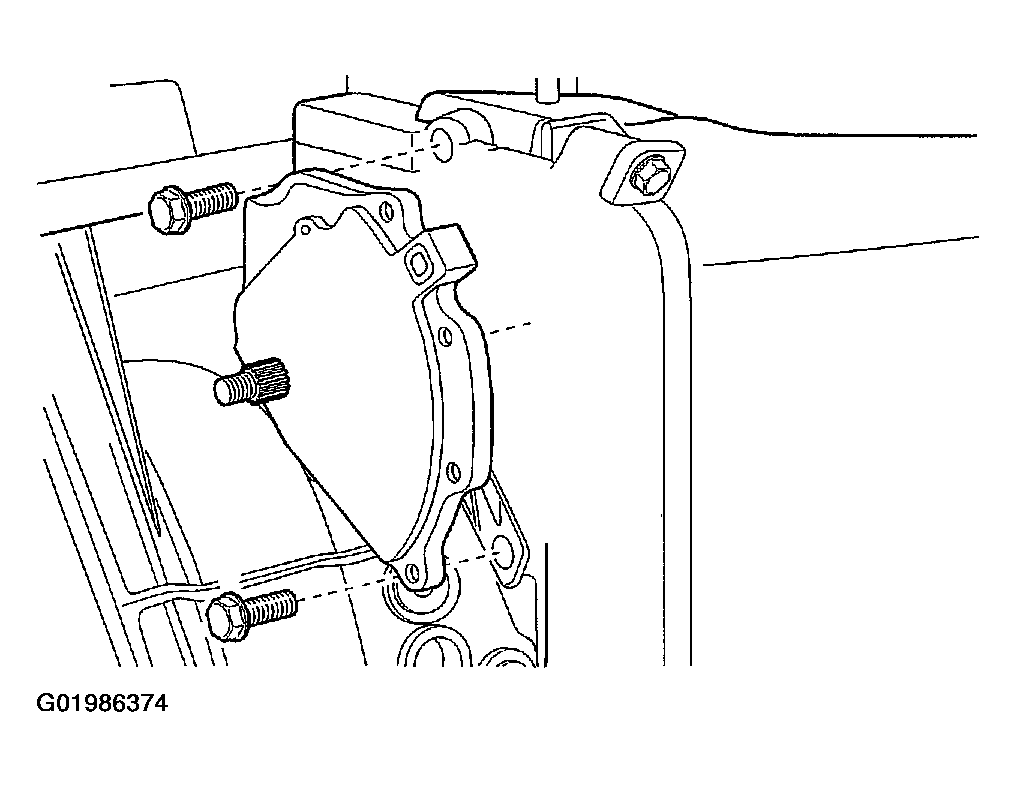

Fig 3: Removing Park/Neutral Start Switch
G01986374Courtesy of SUZUKI OF AMERICA CORP.
