Determining Adjusting Disc E (PE)

Tools Required

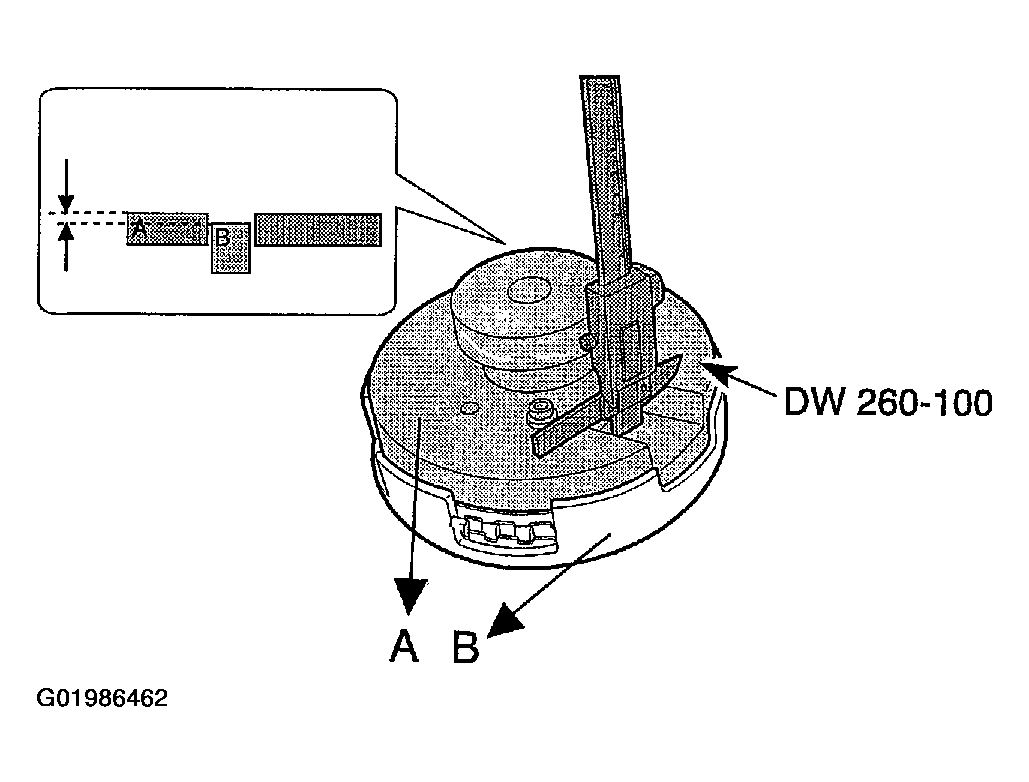

1. DW 260-100 Clutch B/E Disc Thickness Measuring Fixture

1. Using disc thickness gauge, determine thickness ME for the disc set for clutch E (without the setting disc).
   • Measure the E disc set thickness. Refer to Determining Adjusting Disc B (PB)  .
2. Calculate the test dimension PE (PE = EE - ME)
   1. EE = installation space
   2. ME = E disc set thickness
   • EXAMPLE

     EE = 23.34 mm

     ME = 16.70 mm

     PE = 6.64 mm

3. Find the clutch E setting disc (clutch plate) thickness. Refer to the below table.
   Fig 1: Finding Clutch E Setting Disc (Clutch Plate) Thickness

   Courtesy of SUZUKI OF AMERICA CORP.

   PE is 6.64 mm so, the setting disc (clutch plate of E set) thickness is 5.0 mm.

4. Replace clutch E's setting disc. (5.0 mm)

Fig 2: Replacing Clutch E's Setting Disc (5.0 mm)

Courtesy of SUZUKI OF AMERICA CORP.
