Control Valve Body Assembly Removal

Tools Required

1. DW260-070 Plug Remover/Installer

1. Disconnect the negative battery cable.
2. Remove the air filter housing.
3. Disconnect the transaxle wiring harness and the park/neutral position switch electrical connector.

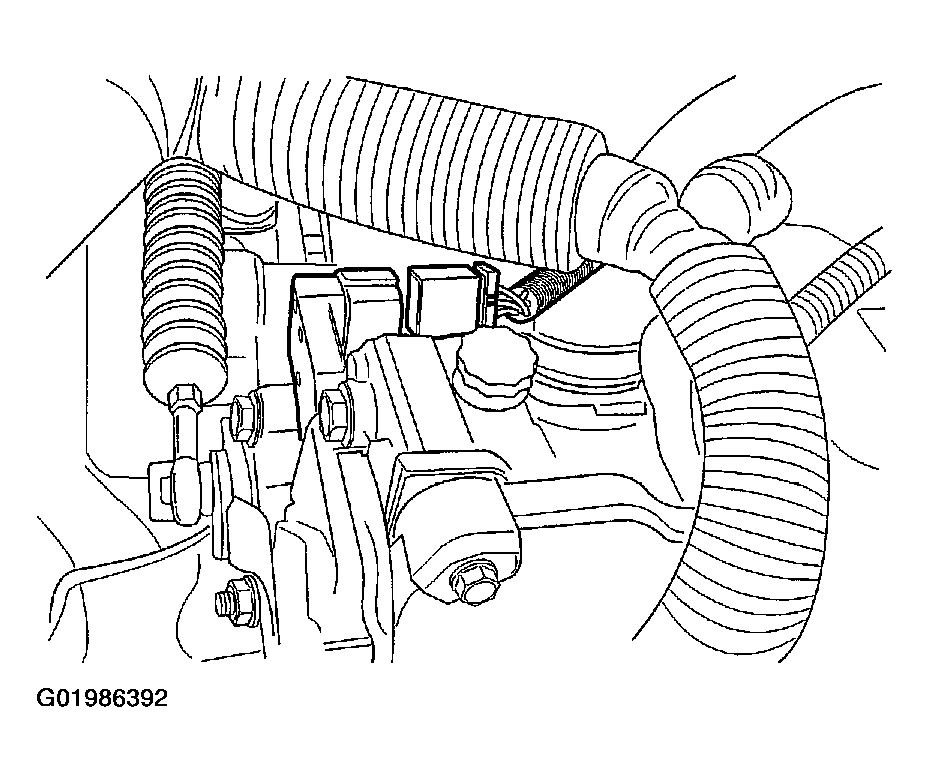

Fig 1: Disconnecting Transaxle Wiring Harness
Courtesy of SUZUKI OF AMERICA CORP.
4. Raise and suitably support the vehicle.
5. Remove the engine under cover. Refer to Figure .
6. Remove the transaxle fluid drain plug using the plug remover/installer DW260-070 and drain the transaxle fluid.

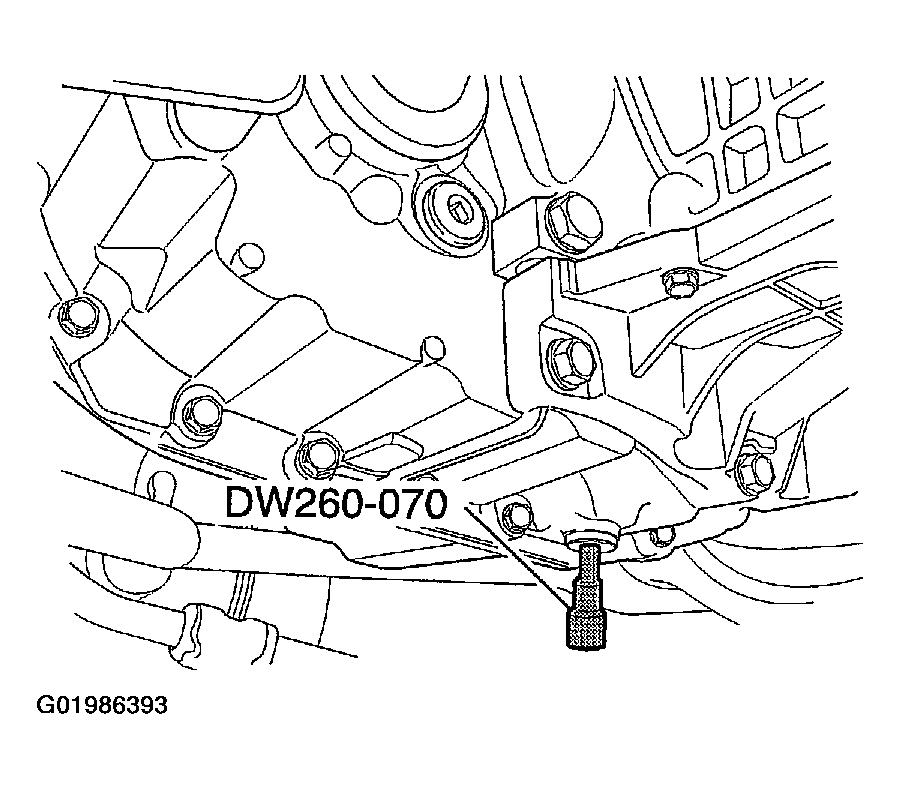

Fig 2: Removing Transaxle Fluid Drain Plug Using Plug Remover/Installer
Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the oil pan, oil pan gasket. Refer to Oil Pan and Oil Pan Gasket Removal  .
8. Remove the valve body mounting bolts.
9. Remove the automatic transmission input speed sensor mounting bolt.

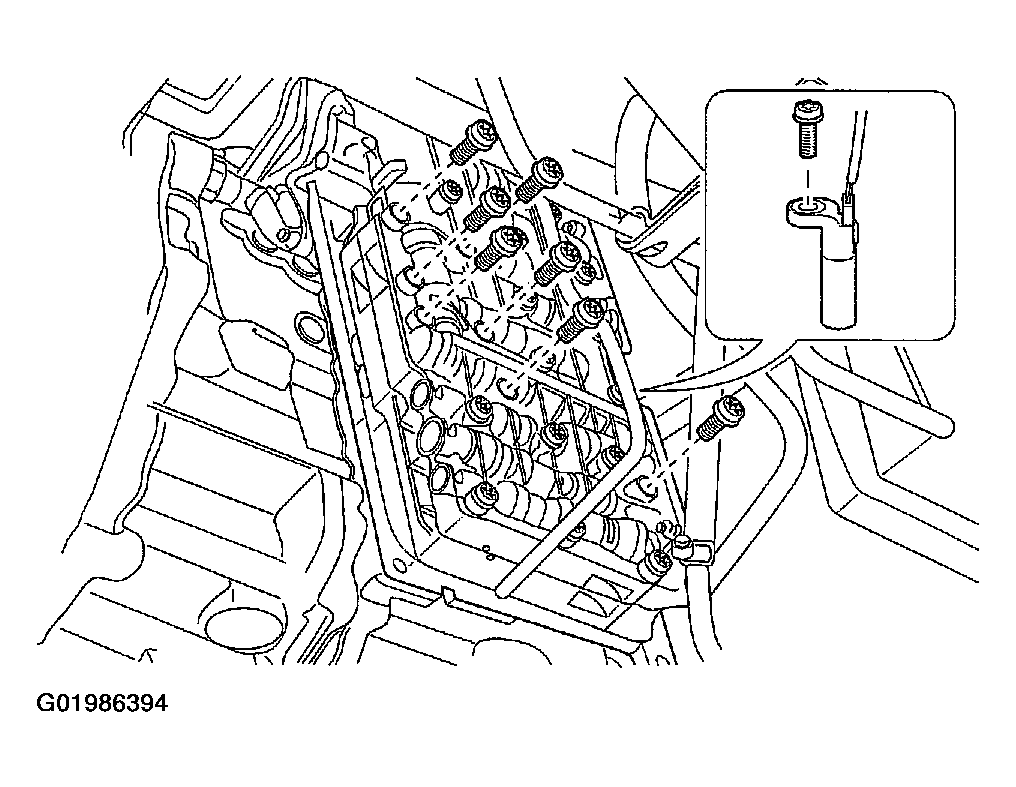

Fig 3: Removing Automatic Transmission Input Speed Sensor Mounting Bolt
Courtesy of SUZUKI OF AMERICA CORP.
10. Tilt the valve body.
11. Remove the automatic transmission output speed sensor mounting bolt under the valve body assembly.

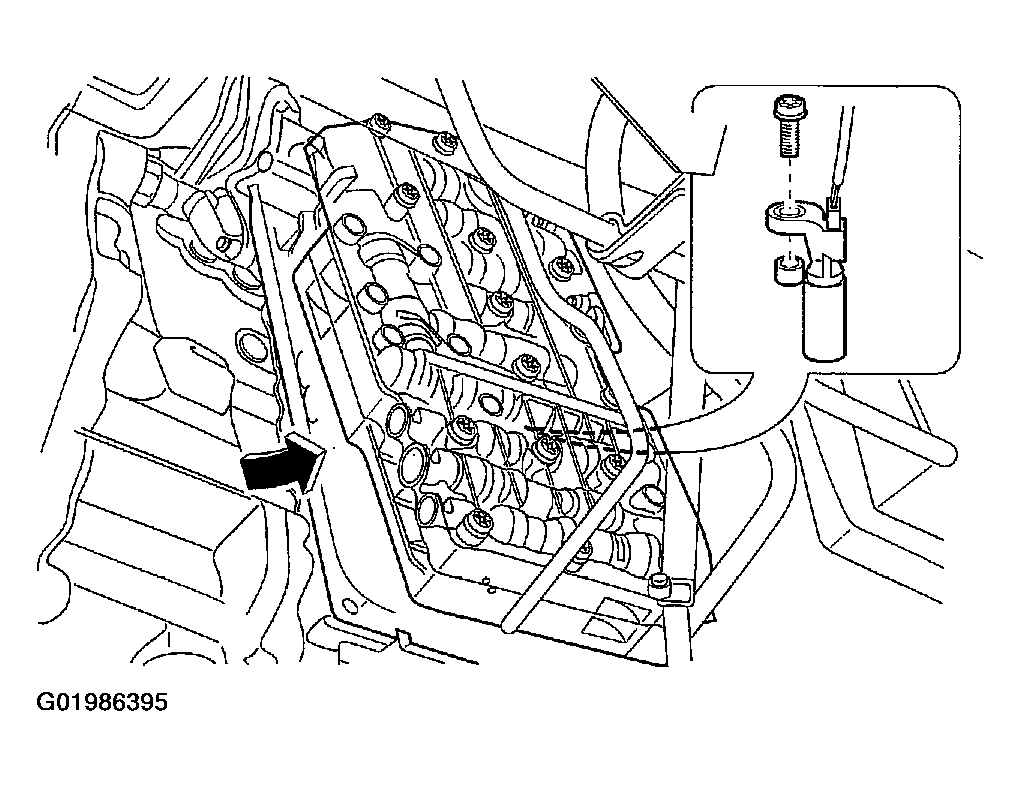

Fig 4: Removing Automatic Transmission Output Speed Sensor Mounting Bolt
Courtesy of SUZUKI OF AMERICA CORP.
12. Remove the control valve body.

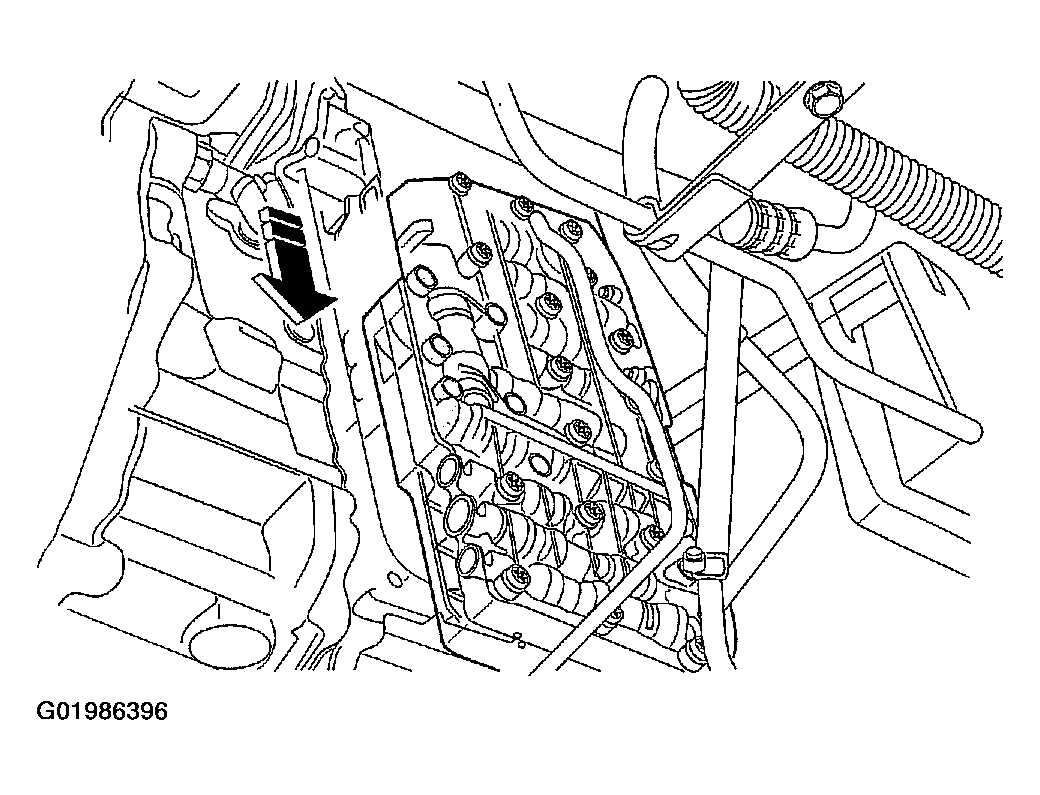

Fig 5: Removing Control Valve Body

Courtesy of SUZUKI OF AMERICA CORP.
