Clutch B/E Disassembly and Assembly

Tools Required

• DW260-140 Clutch B Stop Ring Remover/Installer
• DW260-150 Clutch B Stop Ring Remover/Installer

1. Remove the rear cover. Refer to Parking Lever Components  .

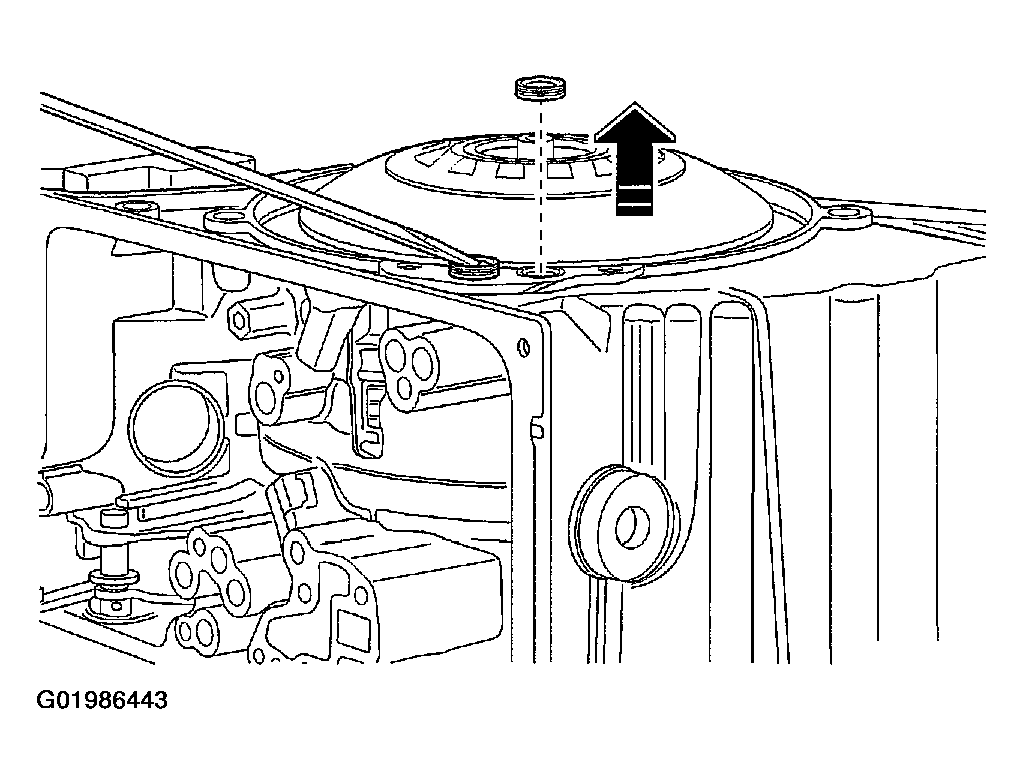

2. Remove the two sealing rings (clutch B/E).
Fig 1: Removing Sealing Rings (Clutch B/E)
Courtesy of SUZUKI OF AMERICA CORP.

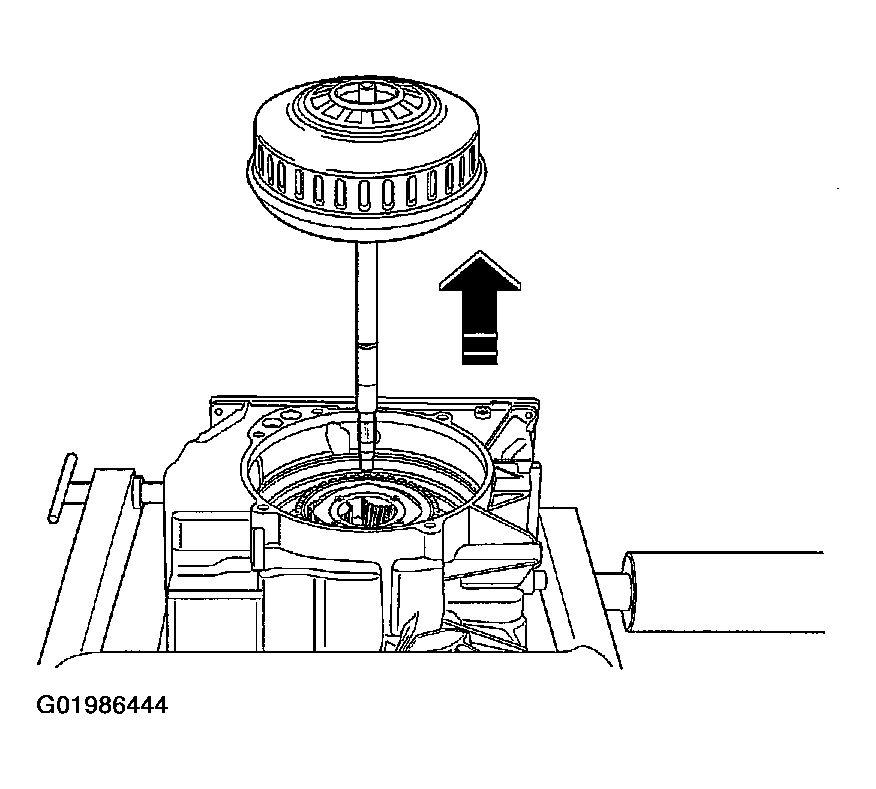

3. Take out input shaft with clutch B/E.
Fig 2: Removing Out Input Shaft With Clutch B/E
Courtesy of SUZUKI OF AMERICA CORP.

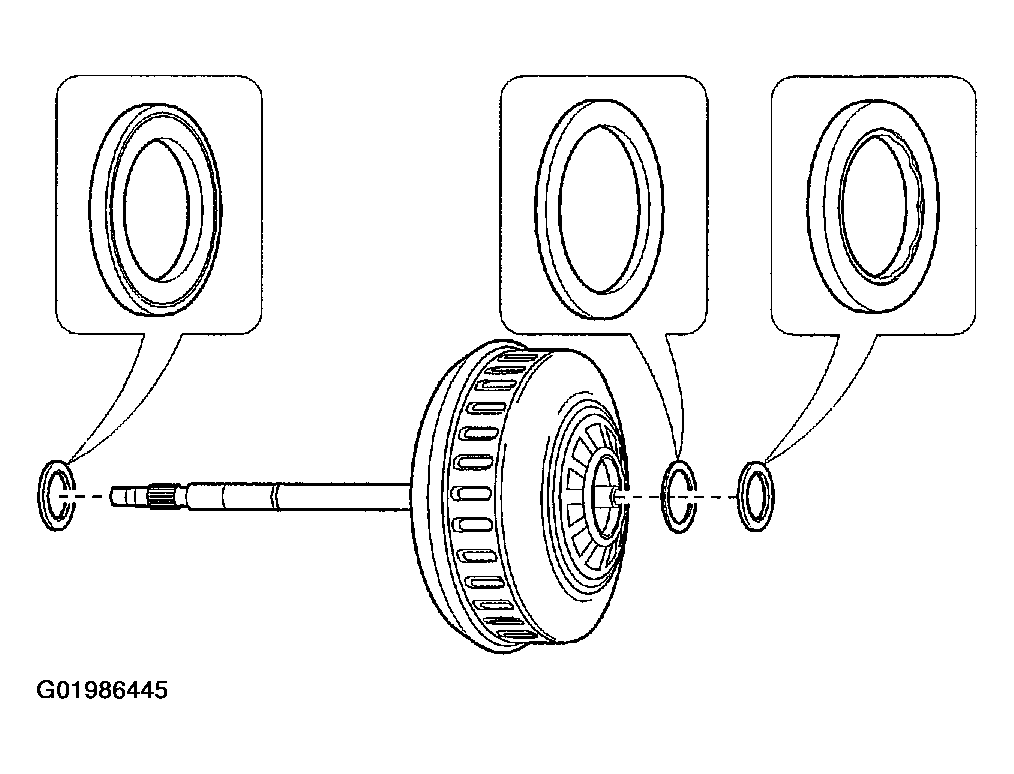

4. Remove needle bearing and thrust washer.
5. Remove shim.
Fig 3: Removing Shim
Courtesy of SUZUKI OF AMERICA CORP.

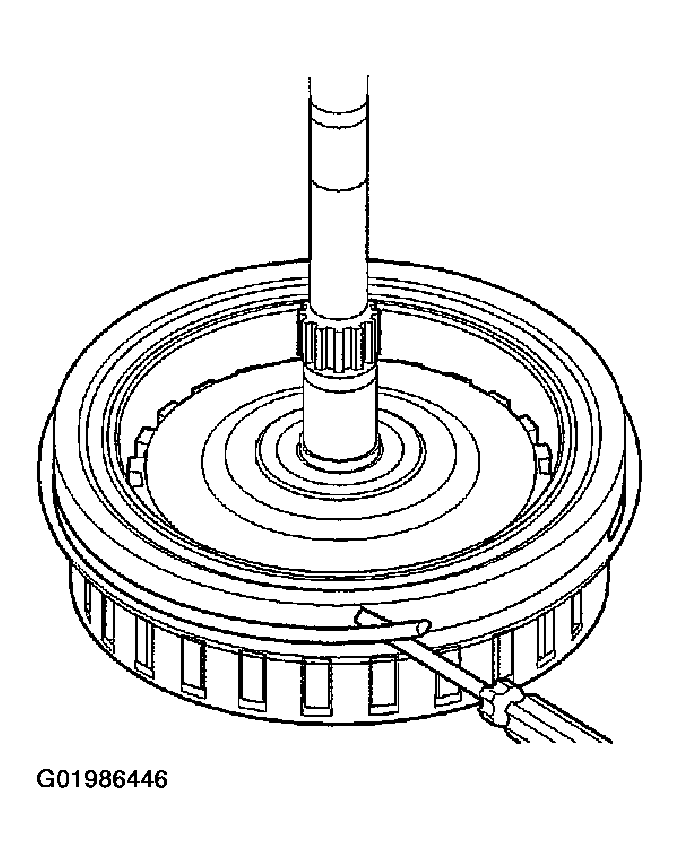

6. Take out the retaining snap ring.
Fig 4: Removing Retaining Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.

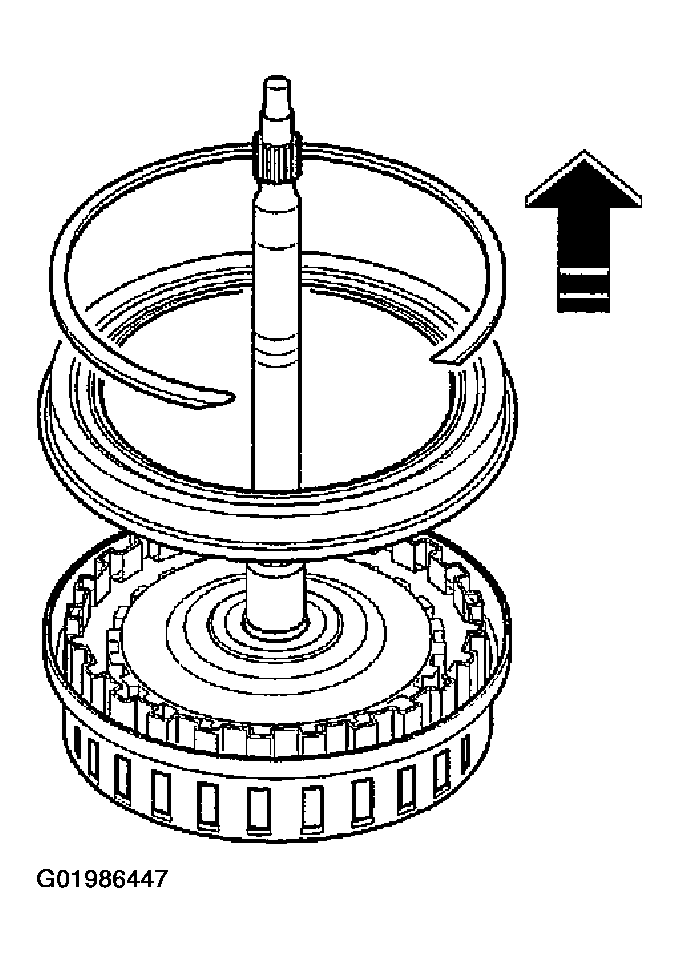

7. Take out the piston B.
Fig 5: Removing Piston B
Courtesy of SUZUKI OF AMERICA CORP.

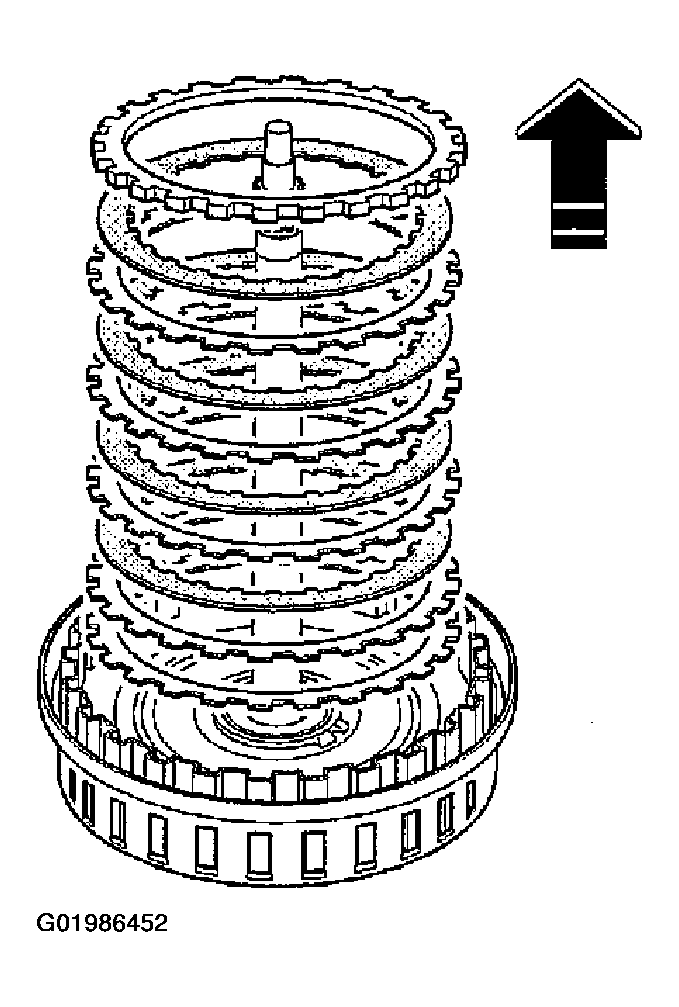

8. Remove disc set B.
Fig 6: Removing Disc Set B
Courtesy of SUZUKI OF AMERICA CORP.

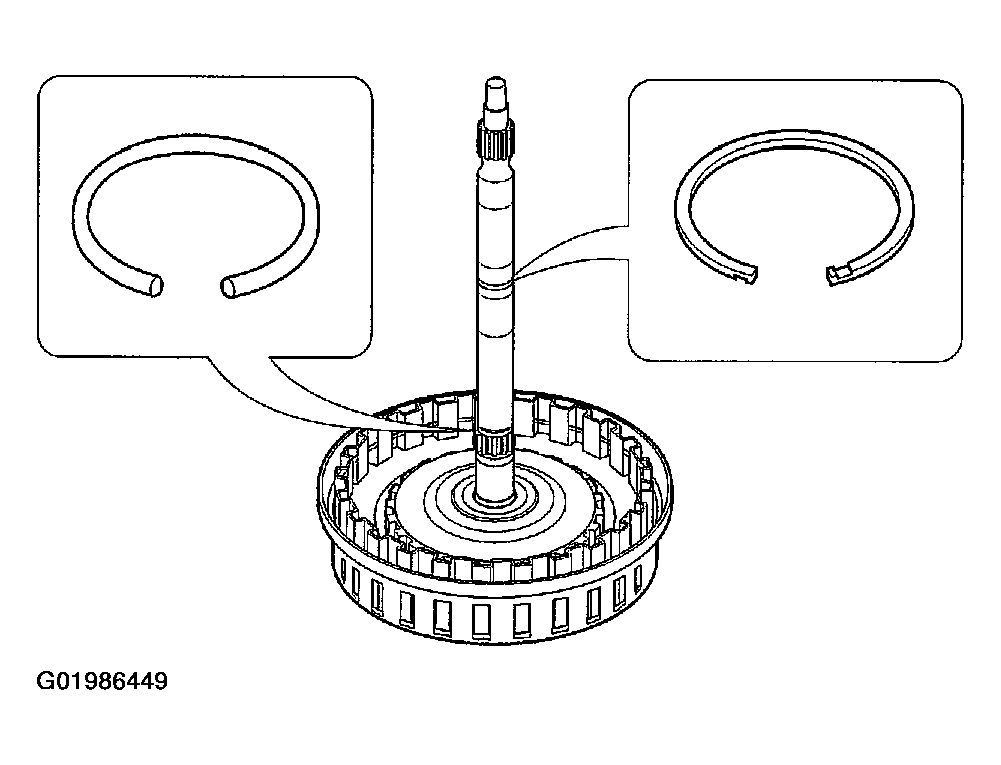

9. Take out the piston rings.

   Removal Notice

   • Remove the piston ring for the input shaft and the retaining ring.

Fig 7: Removing Piston Rings
Courtesy of SUZUKI OF AMERICA CORP.

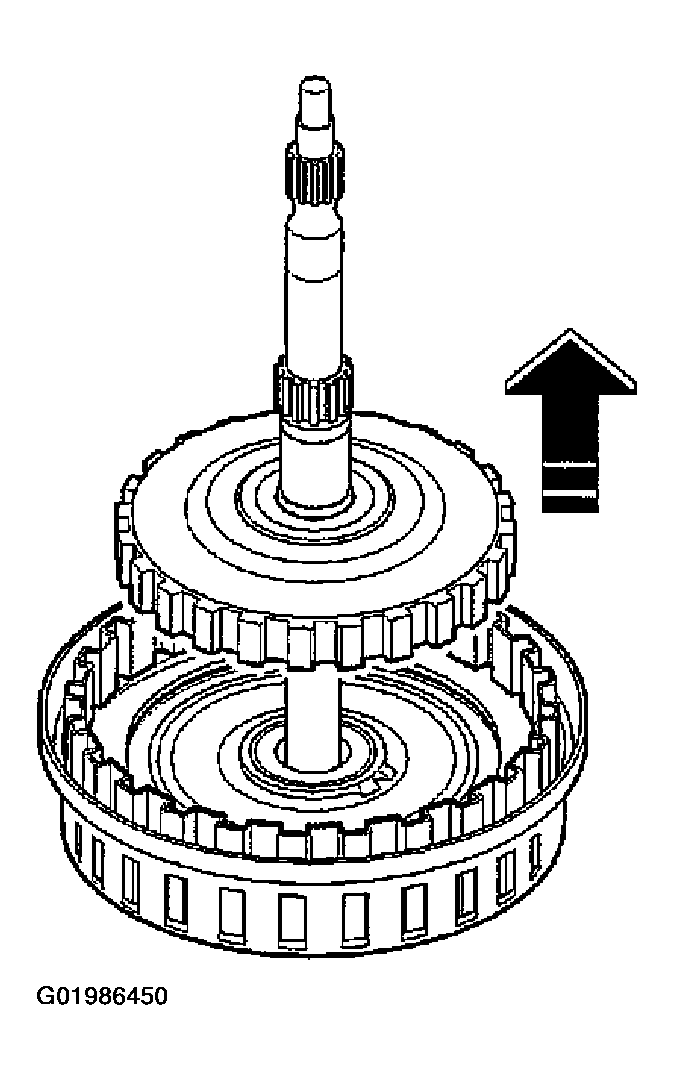

10. Remove inner disc carrier E and needle roller thrust bearing.
Fig 8: Removing Inner Disc Carrier E & Needle Roller Thrust Bearing
Courtesy of SUZUKI OF AMERICA CORP.

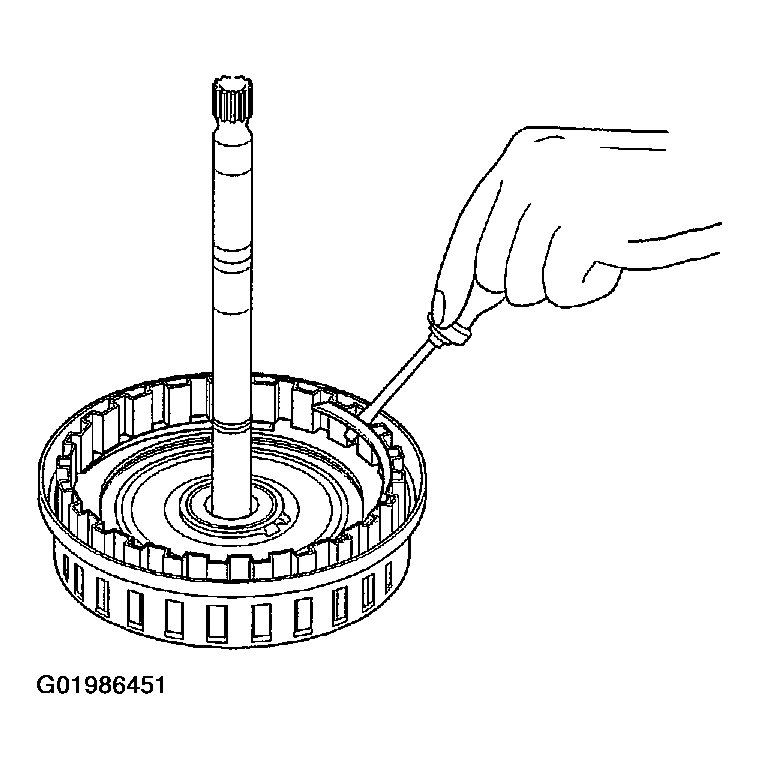

11. Take out the snap ring.
Fig 9: Removing Snap Ring
Courtesy of SUZUKI OF AMERICA CORP.

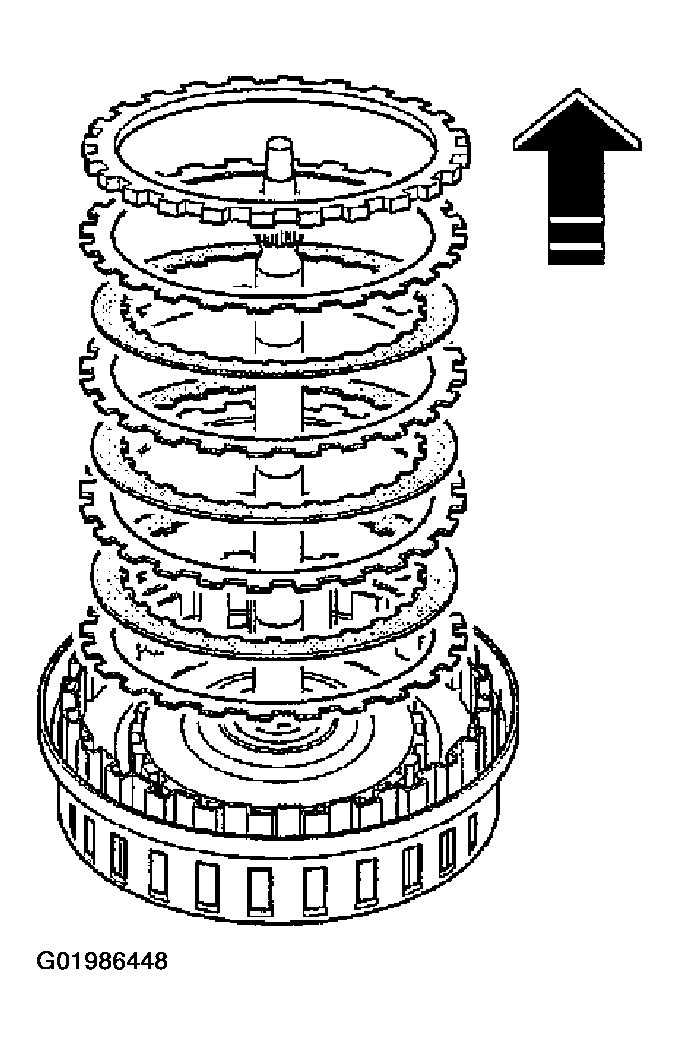

12. Remove disc set E.
Fig 10: Removing Disc Set E
Courtesy of SUZUKI OF AMERICA CORP.

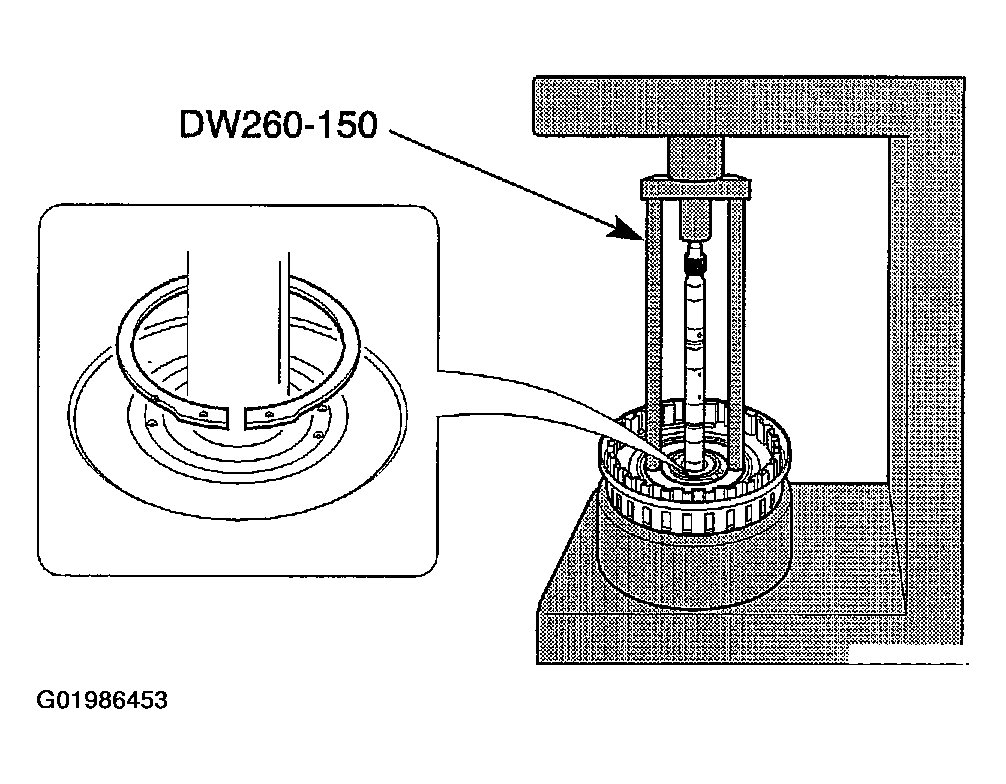

13. Press down cup spring (clutch E) with cup spring press fixture.
14. Remove the split stop ring.
Fig 11: Removing Split Stop Ring
Courtesy of SUZUKI OF AMERICA CORP.

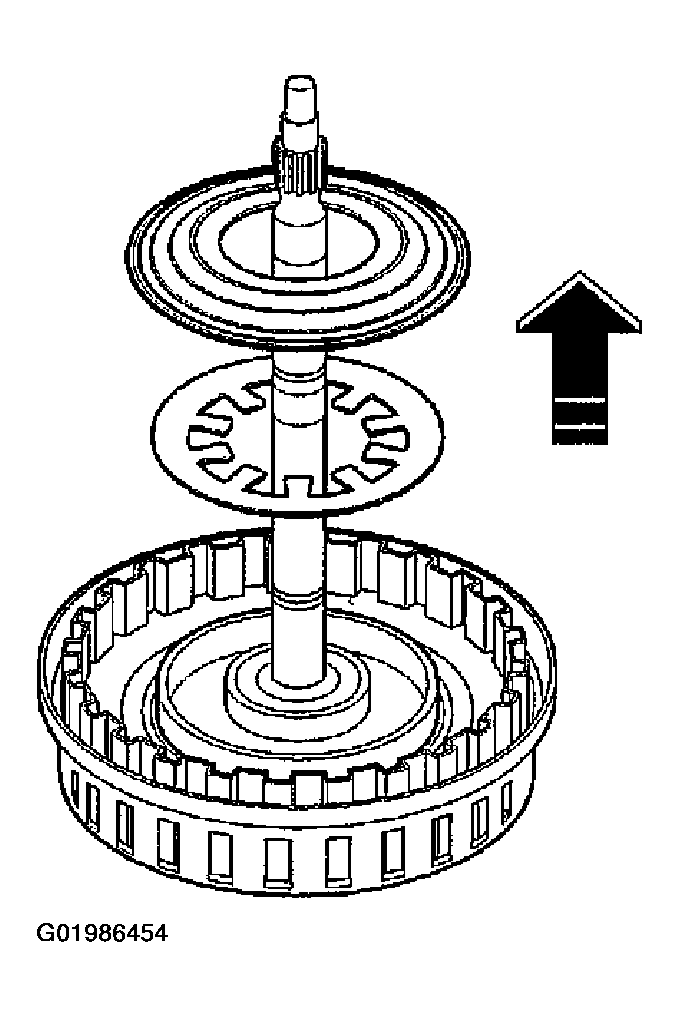

15. Remove the oil dam and cup spring.
16. Pull the O-ring off the oil dam.
Fig 12: Pulling O-Ring Off Oil Dam
Courtesy of SUZUKI OF AMERICA CORP.

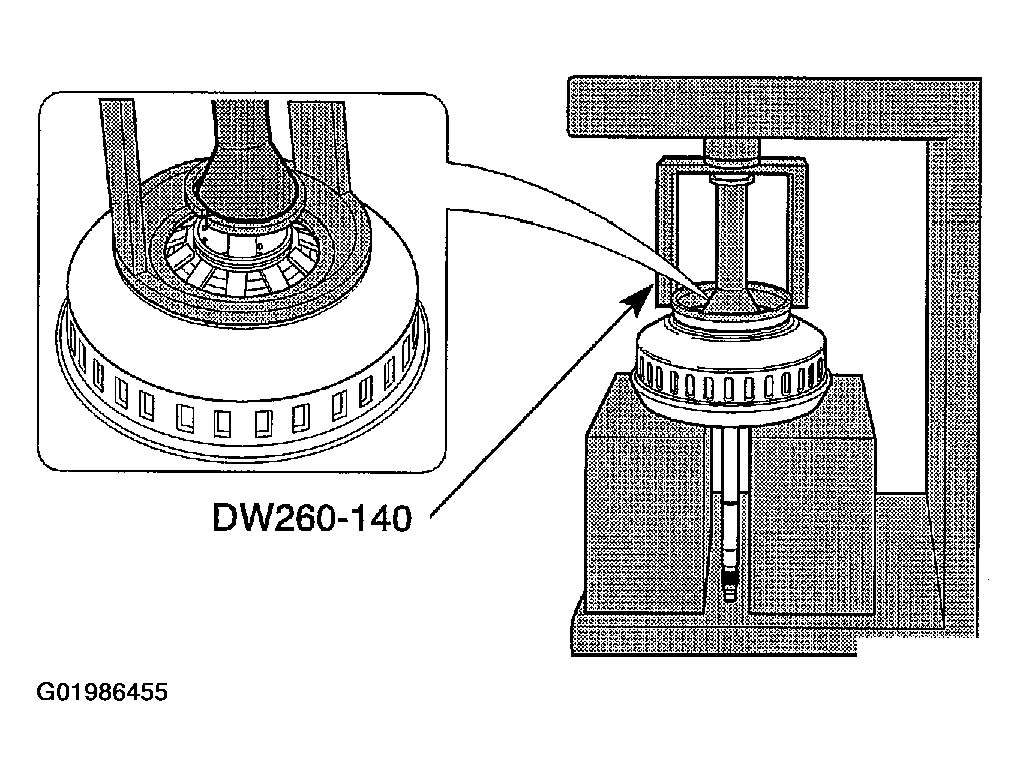

17. Press down cup spring (clutch B) with cup spring press fixture.
18. Remove the split stop ring.
Fig 13: Removing Split Stop Ring
Courtesy of SUZUKI OF AMERICA CORP.

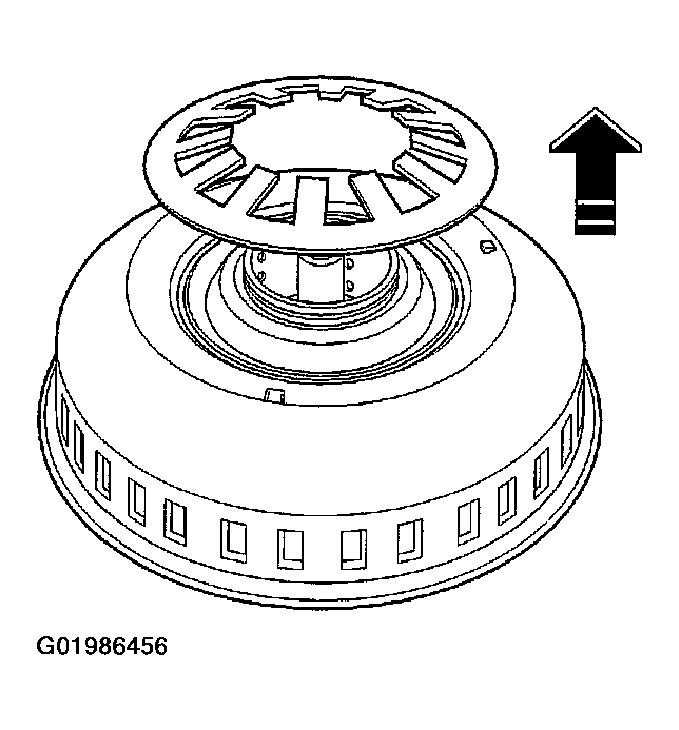

19. Remove the cup spring.
20. Installation should follow the removal procedure in the reverse order.

    Adjustment Notice

    1. Before assembling clutch B/E, setting discs (clutch B/E) have to measured by below measurement procedure.

Fig 14: Installing Clutch B/E In Reverse Order

Courtesy of SUZUKI OF AMERICA CORP.
