Changing the Fluid

Tools Required

1. DW260-070 Plug Remover/Installer

1. Raise and suitably support the vehicle.
2. Place a fluid container below the fluid drain plug.
3. Remove the transaxle fluid drain plug using the plug remover/installer DW260-070.
   1. Tighten the Plug to 45 N.m (33 lb-ft).

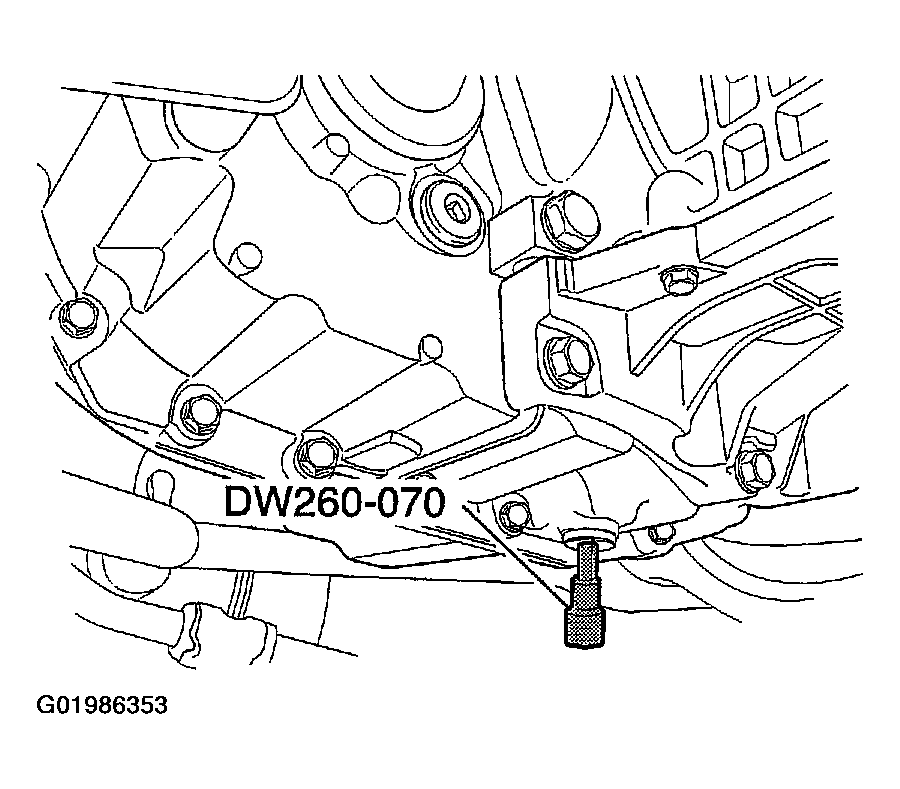

Fig 1: Removing Transaxle Fluid Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.

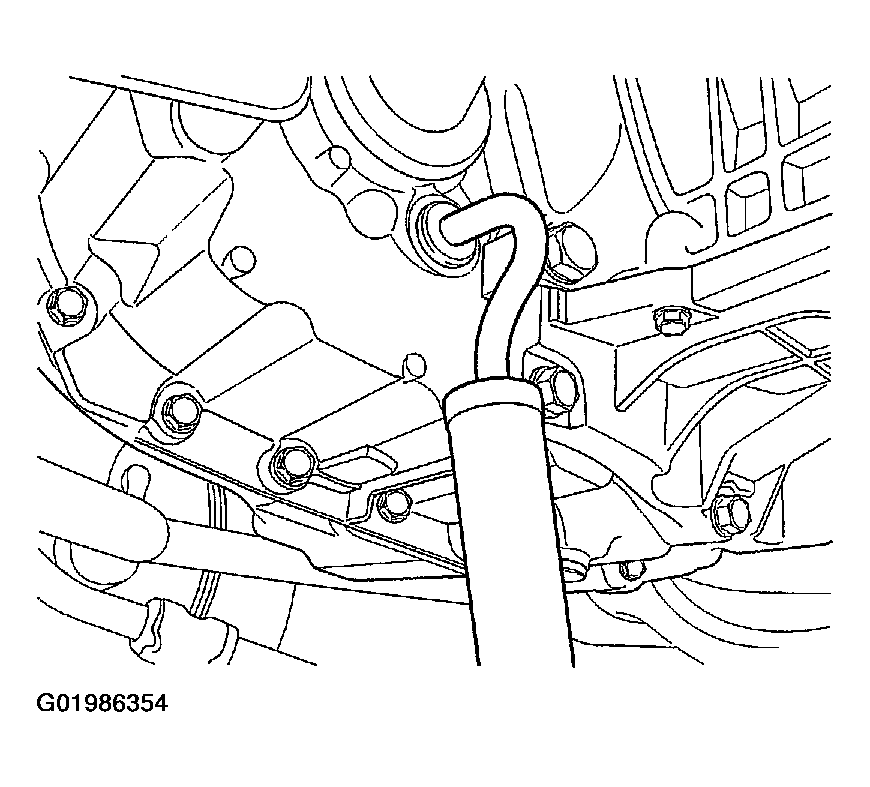

4. Adding transaxle fluid. Refer to Changing the Fluid  .
5. Connect the negative battery cable.

Fig 2: Connecting Negative Battery Cable

Courtesy of SUZUKI OF AMERICA CORP.
