Power Mode (2.5 DOHC)

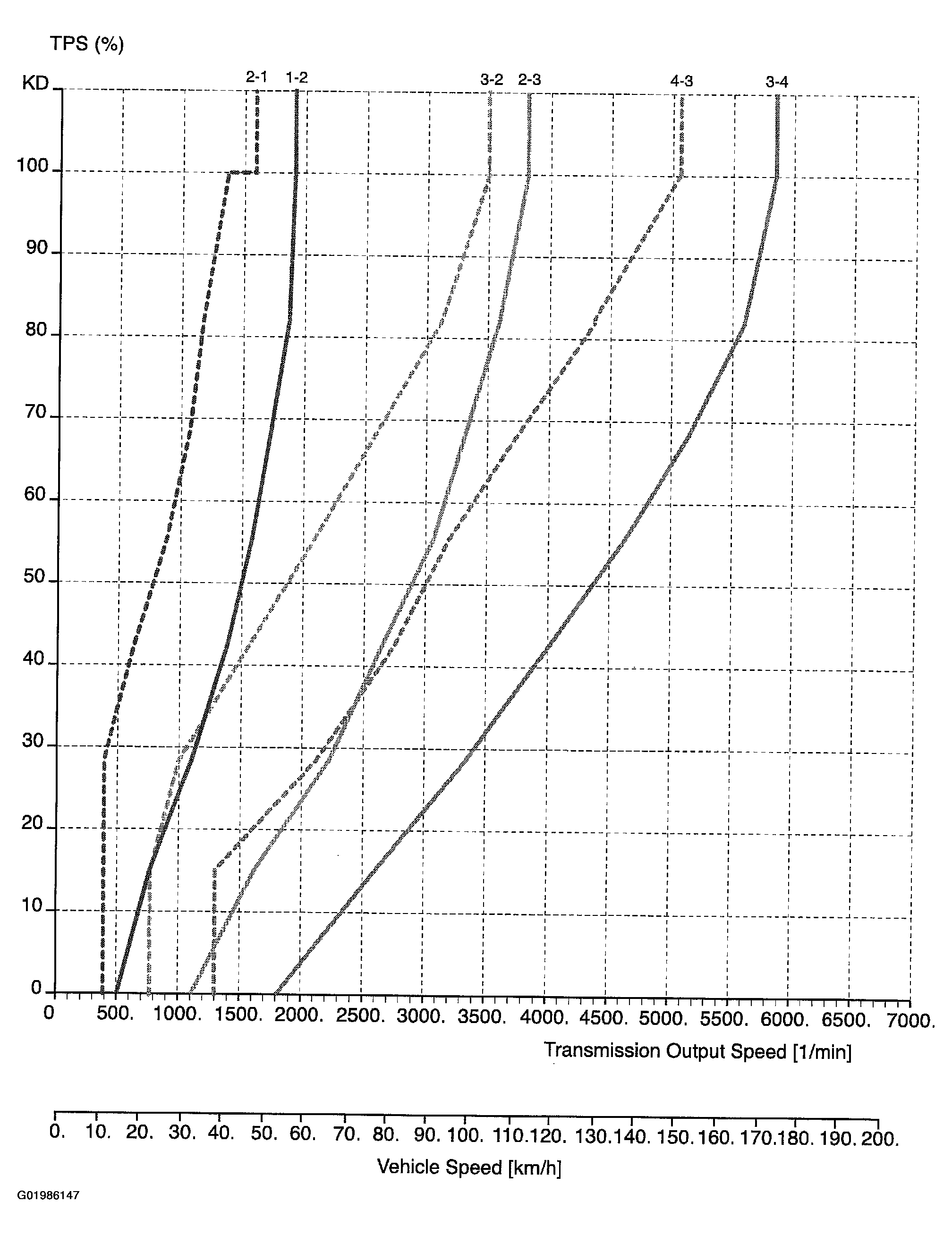

Fig 1: Identifying Power Mode (2.5 DOHC) Diagram
Courtesy of SUZUKI OF AMERICA CORP.
