DTC P1865: EDS 5 Output Shorted to Power: Notes

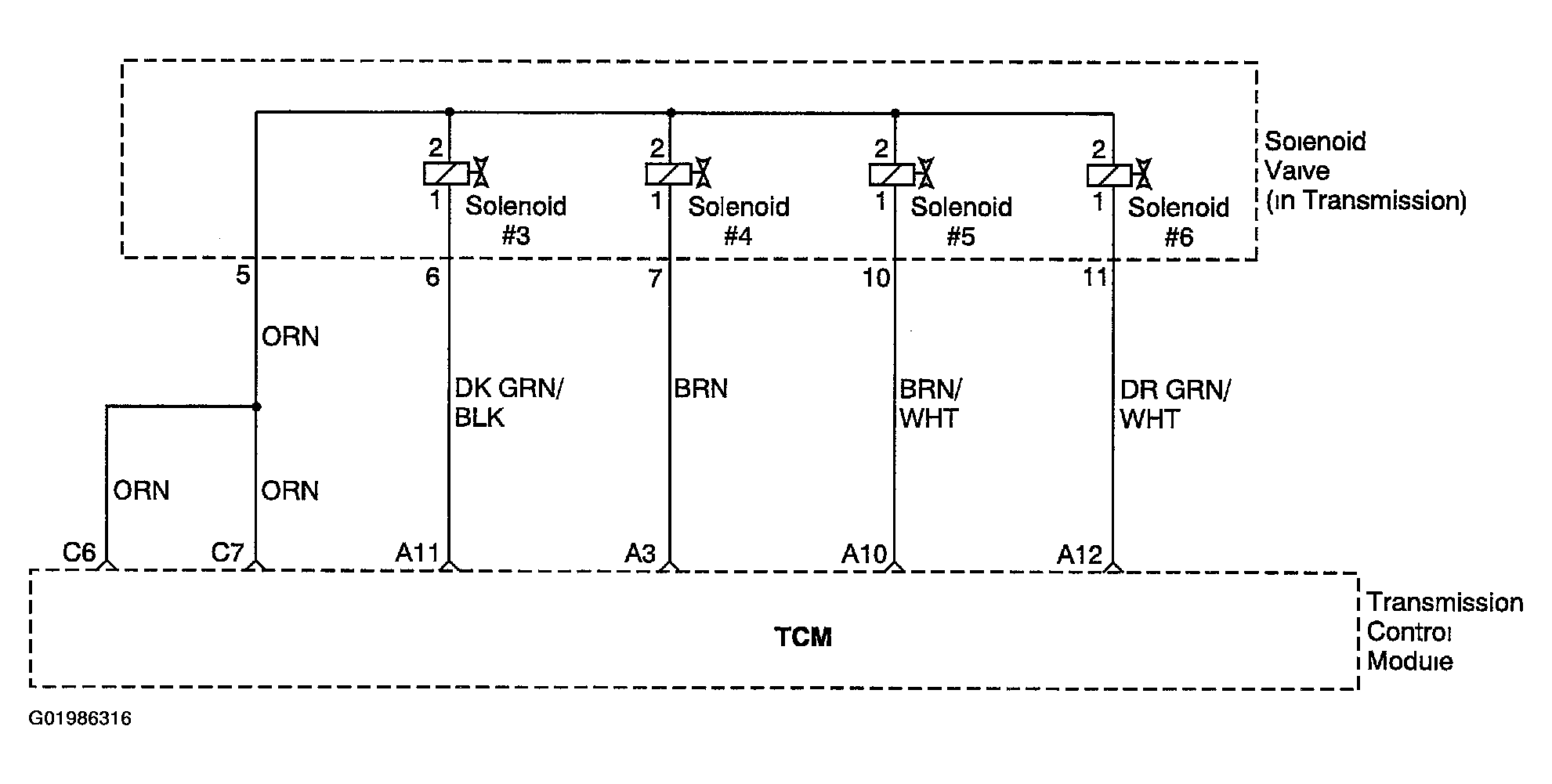

Fig 1: DTC P1865: EDS 5 Output Shorted to Power - Diagnostic Wiring Diagram
G01986316Courtesy of SUZUKI OF AMERICA CORP.
