DTC P1671: CAN Transmit Message Failure: Notes

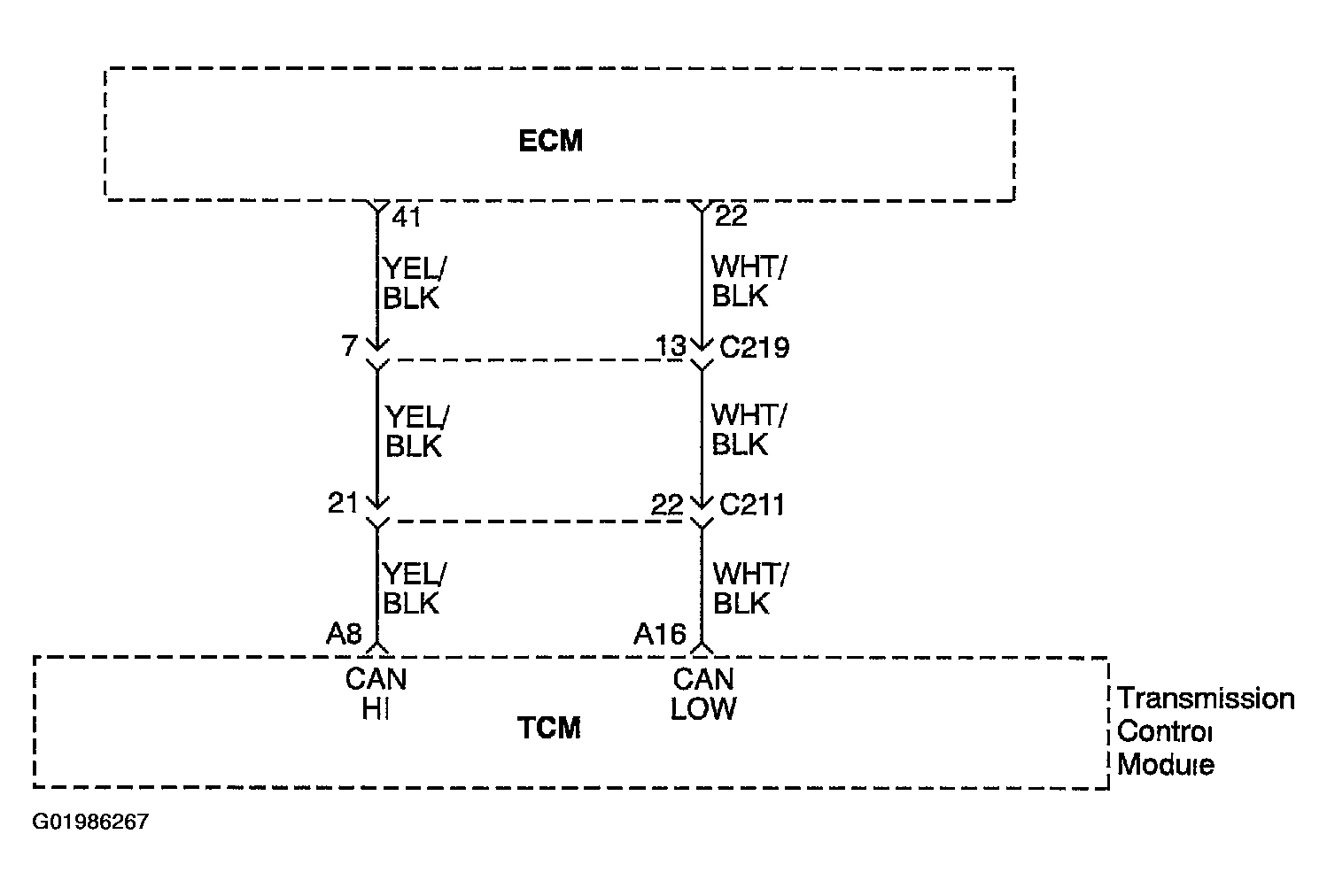

Fig 1: DTC P1671: CAN Transmit Message Failure - Diagnostic Wiring Diagram
G01986267Courtesy of SUZUKI OF AMERICA CORP.
