DTC P0722: Output Speed Sensor (OSS) Circuit No Signal: Notes

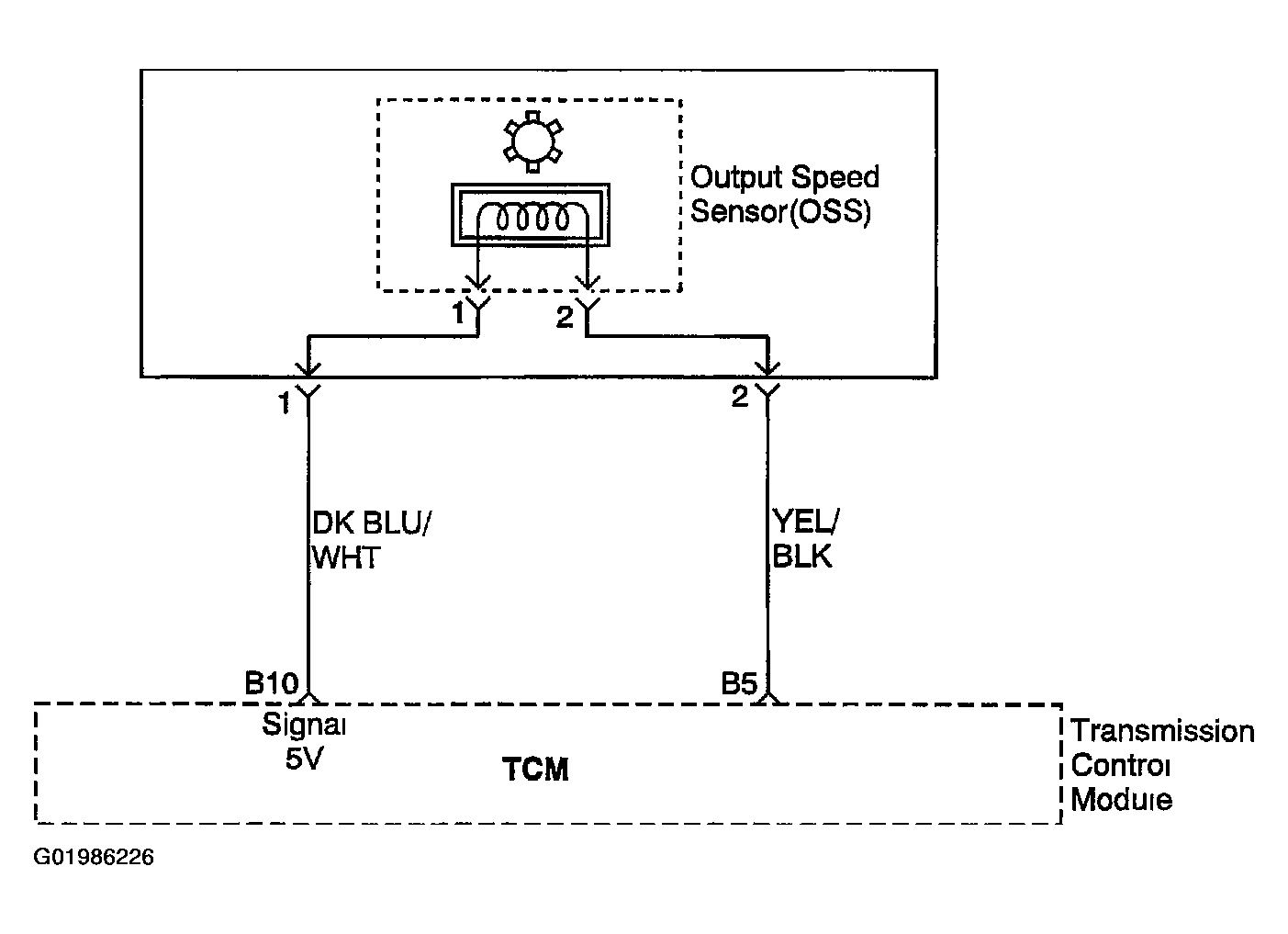

Fig 1: DTC P0722: Output Speed Sensor (OSS) Circuit No Signal - Diagnostic Wiring Diagram
G01986226Courtesy of SUZUKI OF AMERICA CORP.
