DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input): Notes

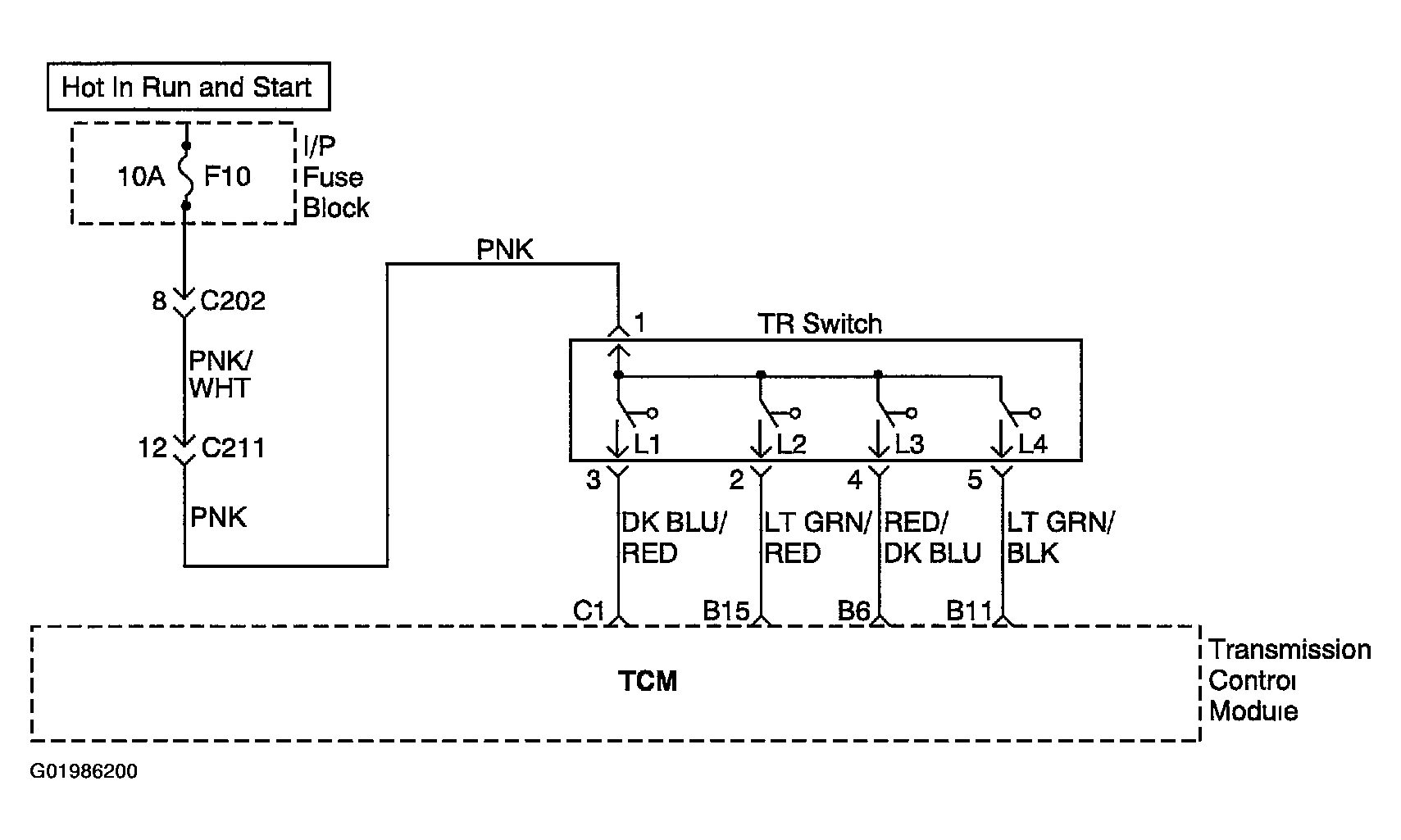

Fig 1: DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input) - Diagnostic Wiring Diagram
G01986200Courtesy of SUZUKI OF AMERICA CORP.
