DTC P0703: Brake Switch Circuit Malfunction: Notes

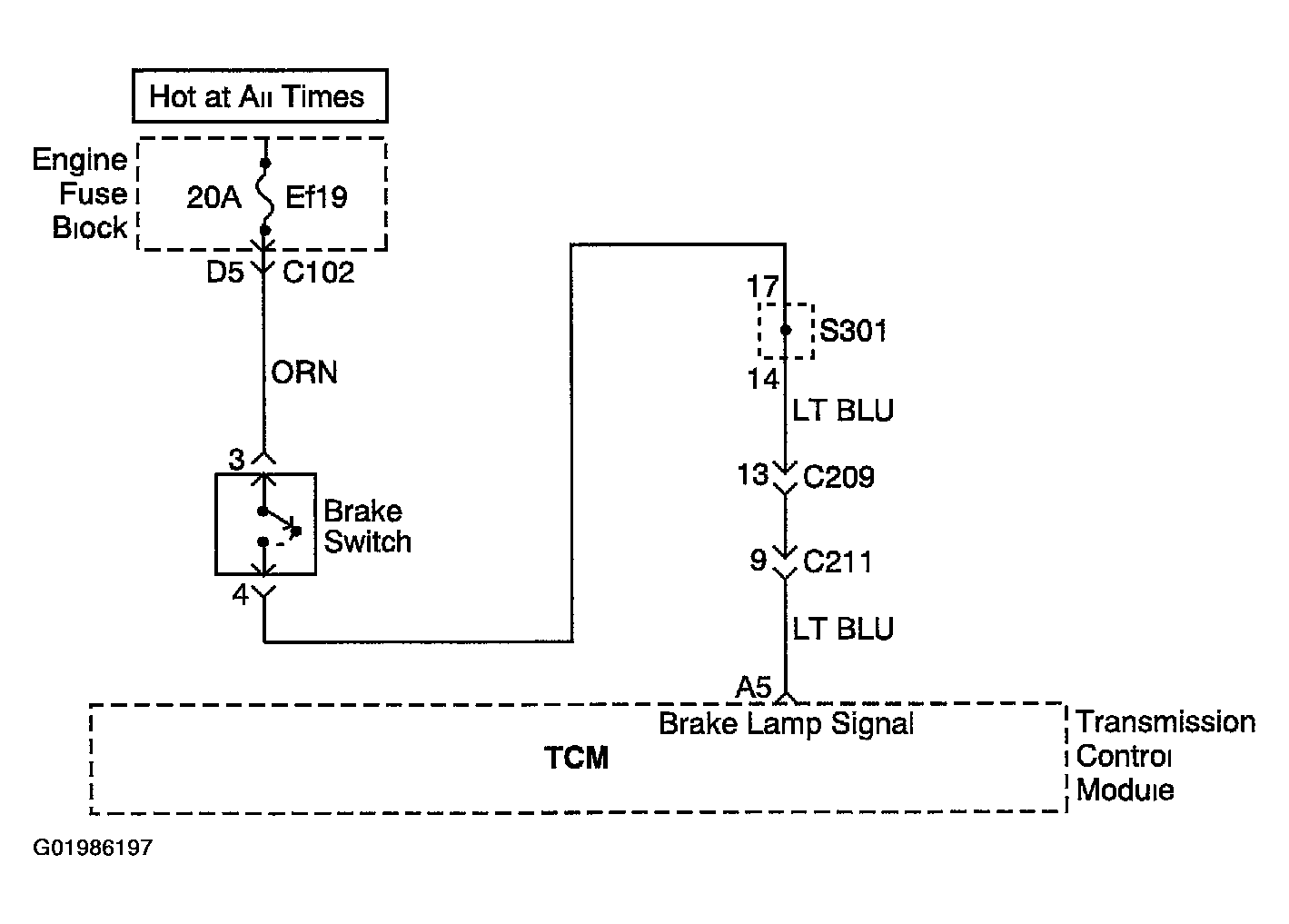

Fig 1: DTC P0703: Brake Switch Circuit Malfunction - Diagnostic Wiring Diagram
G01986197Courtesy of SUZUKI OF AMERICA CORP.
