Toe-In Adjustment: Rear

  1. Measure toe-in and compare to WHEEL ALIGNMENT SPECIFICATIONS  . If toe-in is not within specification, go to next step.
  2. Loosen front parallel link cam bolt to crossmember. See Fig 1 . Tighten front parallel link cam bolt to stage 1, see TORQUE SPECIFICATIONS  . Adjust rear toe-in to specification. See WHEEL ALIGNMENT SPECIFICATIONS  .
  3. After adjustment, finish tightening front parallel link cam bolt to stage 2. See TORQUE SPECIFICATIONS  .

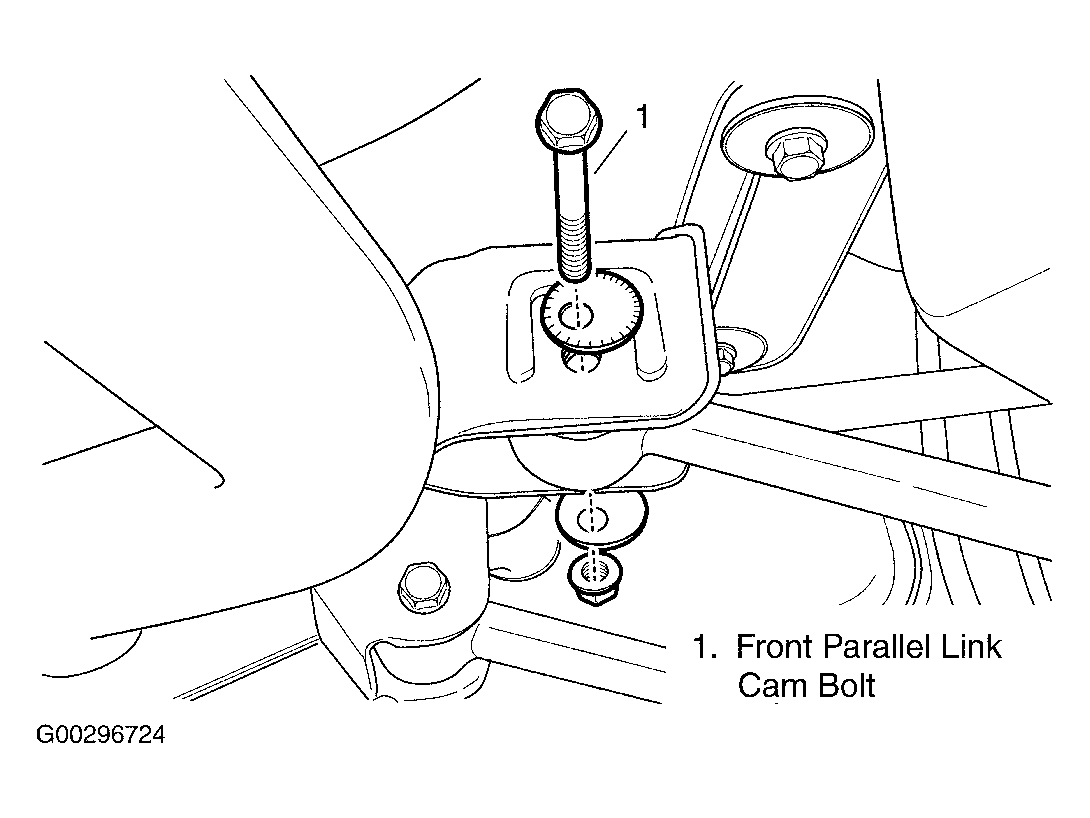

Fig 1: Adjusting Rear Toe-In
G00296724Courtesy of SUZUKI OF AMERICA CORP.
