Trailing Link: Installation

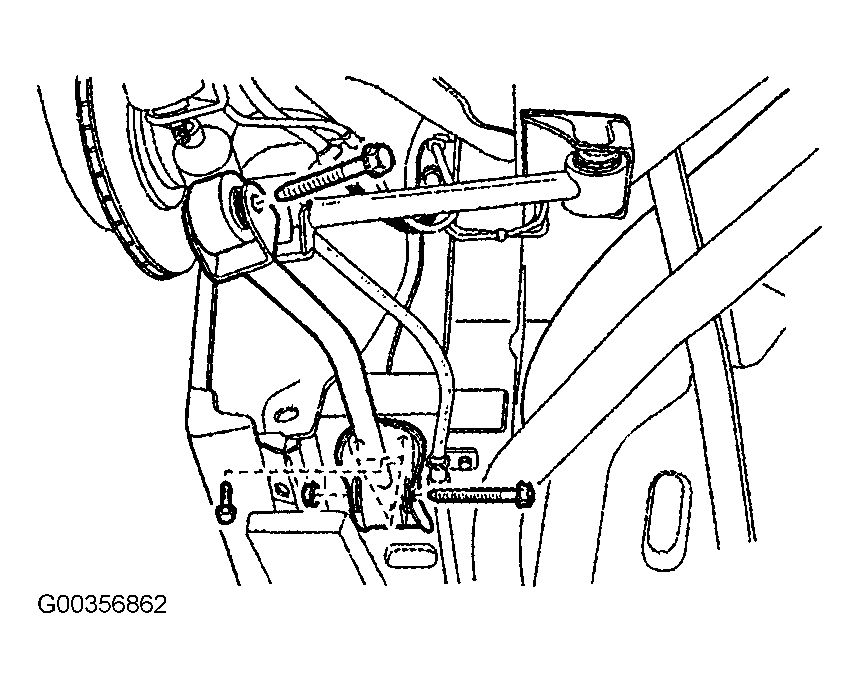

- Install the trailing link with bolt-to-knuckle- and the bolts-to-trailing link bracket. See Figure .
- Tighten the trailing link bolt-to-knuckle to 89 Ft. Lbs. (120 N.m) and the trailing link bracket bolts 66 Ft. Lbs. (90 N.m).
