Rear Strut: Installation

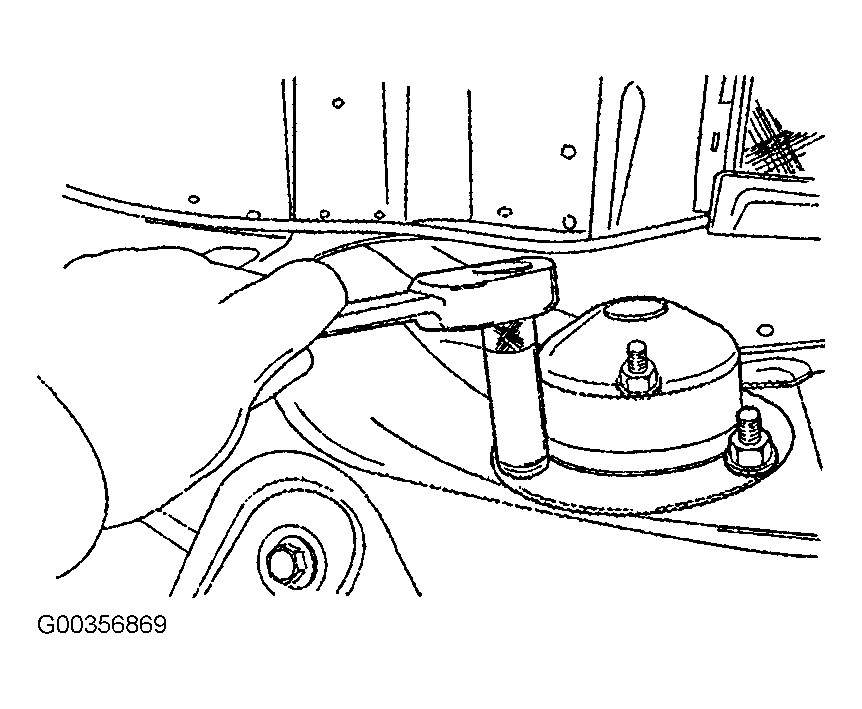

- Install the rear strut with upper nut-to-body and rear seat. See Figure
. Tighten the rear strut upper nut-to-body to 37 Ft. Lbs. (50 N.m).

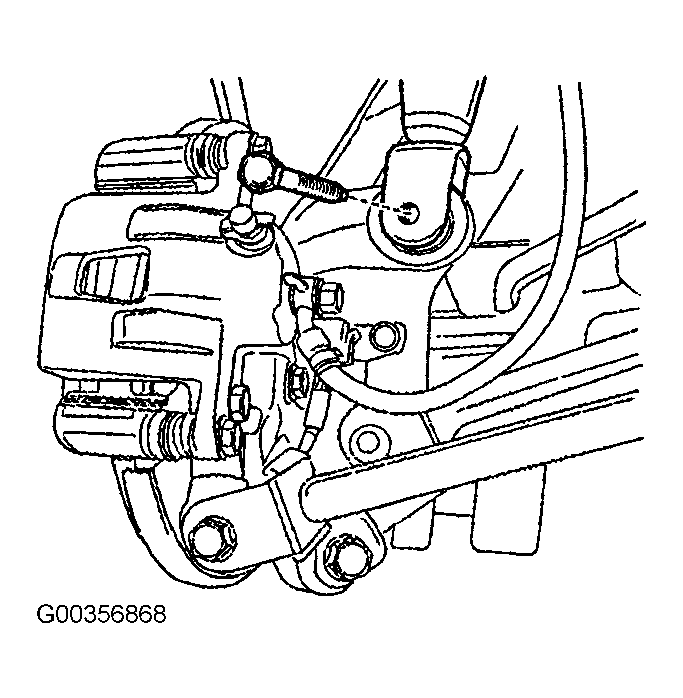

- Install the rear strut lower nuts-to-knuckle. See Figure
. Tighten the rear strut lower nuts-to-knuckle to 66 Ft. Lbs. (90 N.m).
