Rear Strut: Assembly

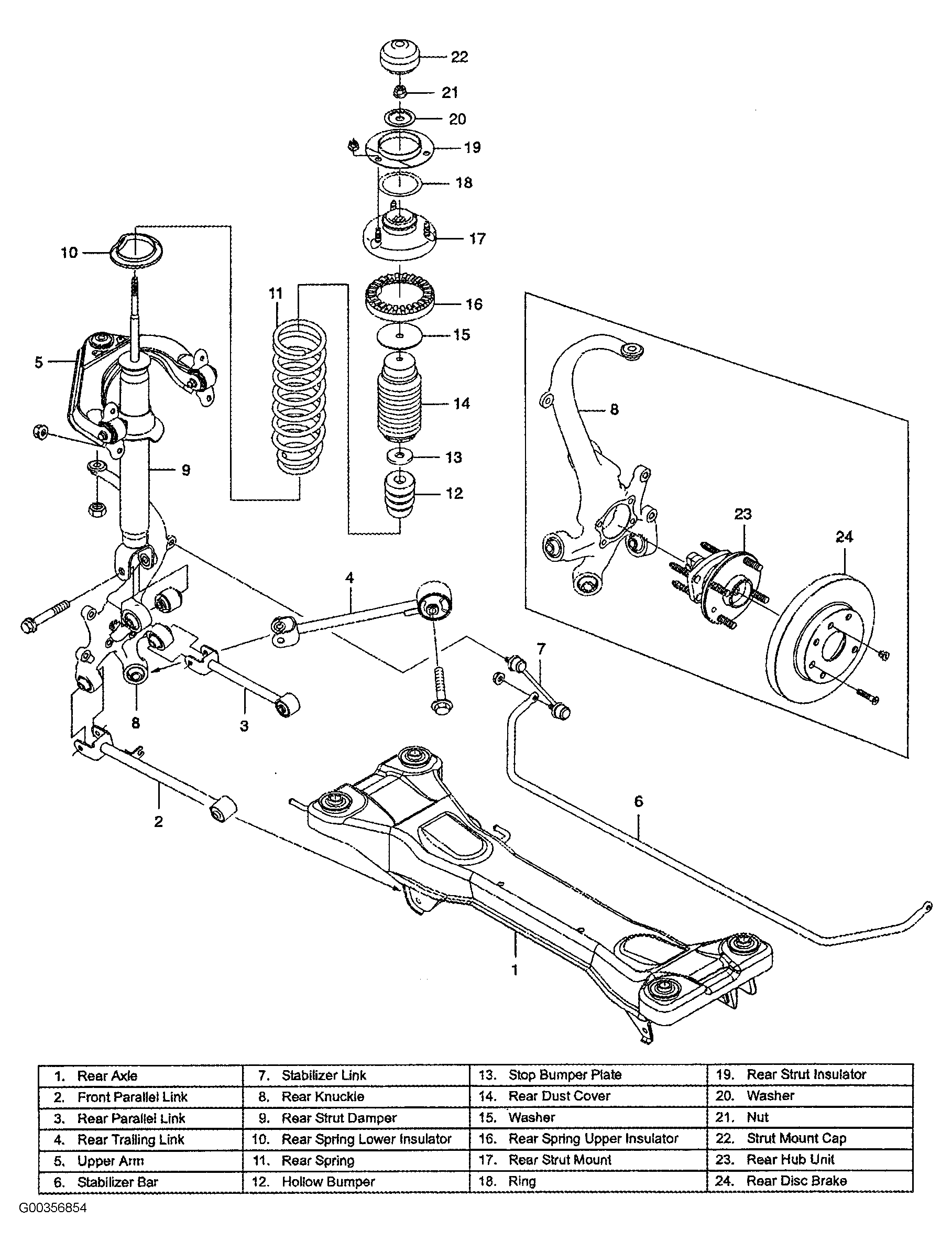

  1. Install the rear spring lower insulator, coil spring, hollow bumper, dust cover, spring upper insulator and rear strut mount onto the rear strut assembly. See Figure .
  2. Compress the spring.

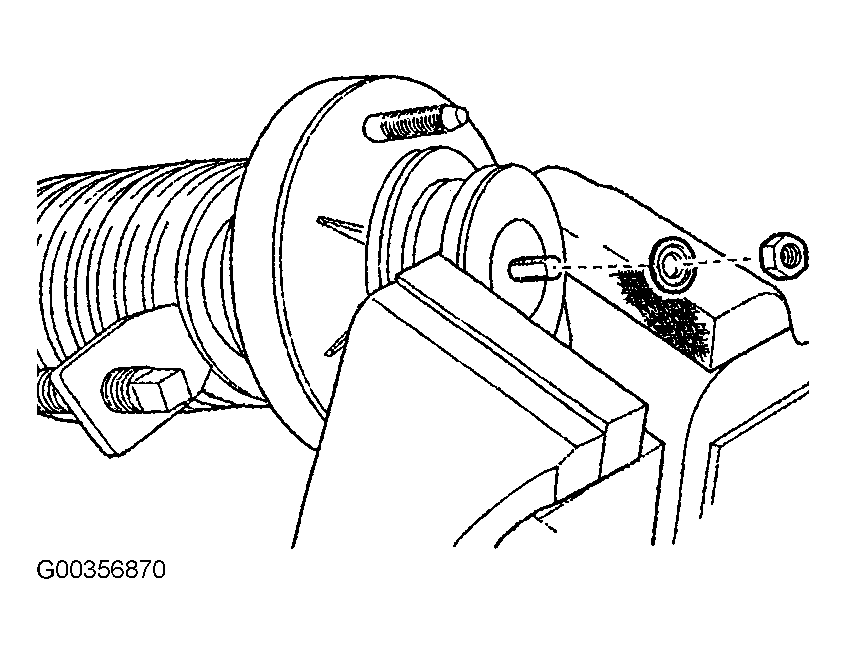

  3. Install the lock nut to the strut damper rod. See Figure .
  4. Release the rear strut assembly from the Spring Compressor (KM-329-A).
