Rear Parallel Link: Installation

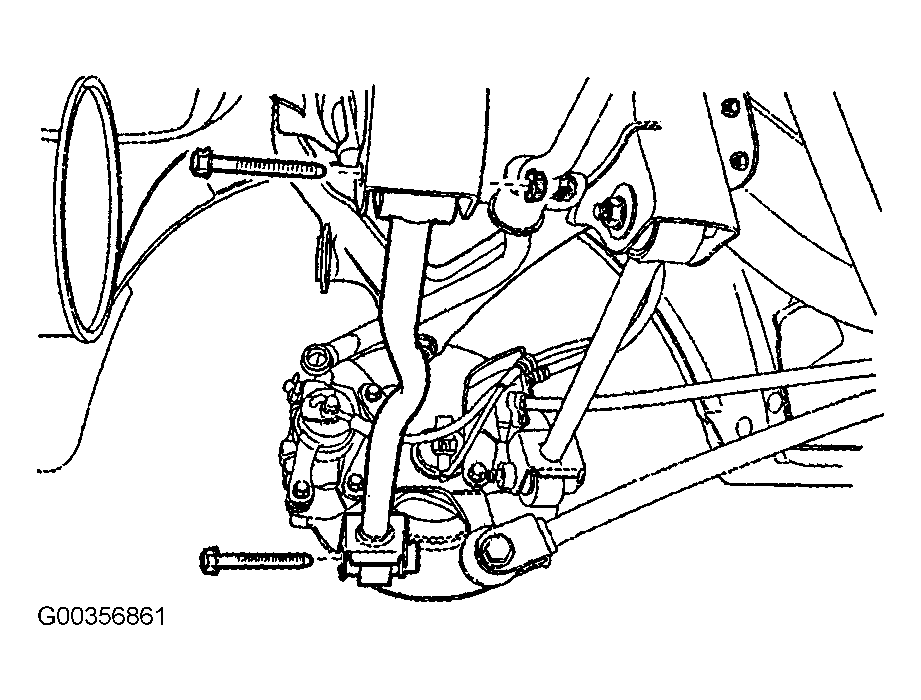

  1. Install the rear parallel link with bolt-to-knuckle and the bolt-to-rear crossmember. See Figure .
  2. Tighten the rear parallel link bolt-to-knuckle and the bolt-to-crossmember to 81 Ft. Lbs. (110 N.m).
