Front Parallel Link: Removal

  1. Raise and suitably support the vehicle.
  2. Remove the rear wheels.
  3. Remove the rear parallel link bolt-to-knuckle and the bolt-to-rear crossmember. See Fig 1 .
  4. Remove the rear parallel link.

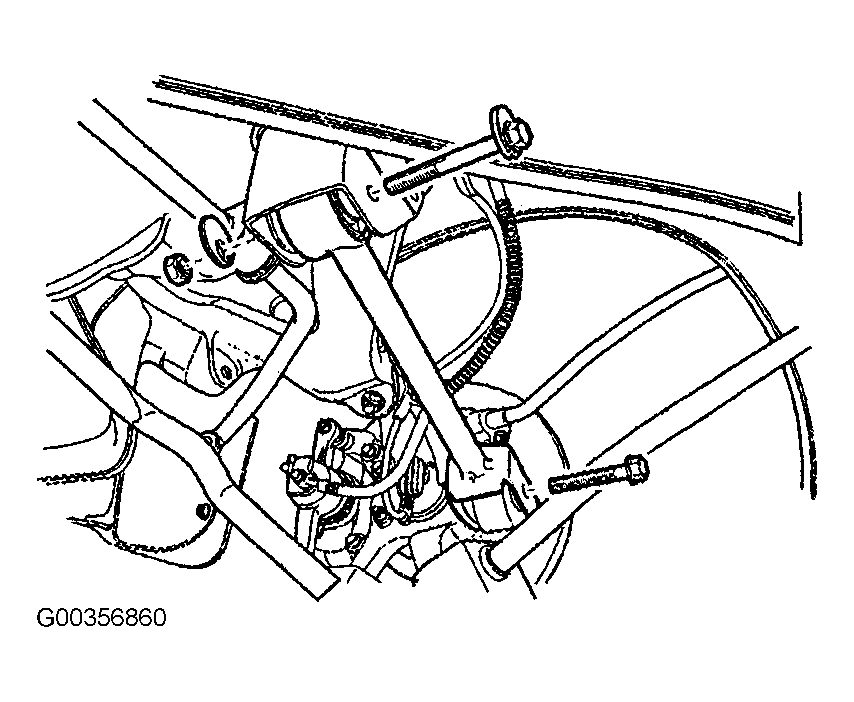

Fig 1: Removing/Installing Front Parallel Link
G00356860Courtesy of SUZUKI OF AMERICA CORP.
