Stabilizer Bar: Installation

  1. Install the U-clamp and bushing with stabilizer bar.

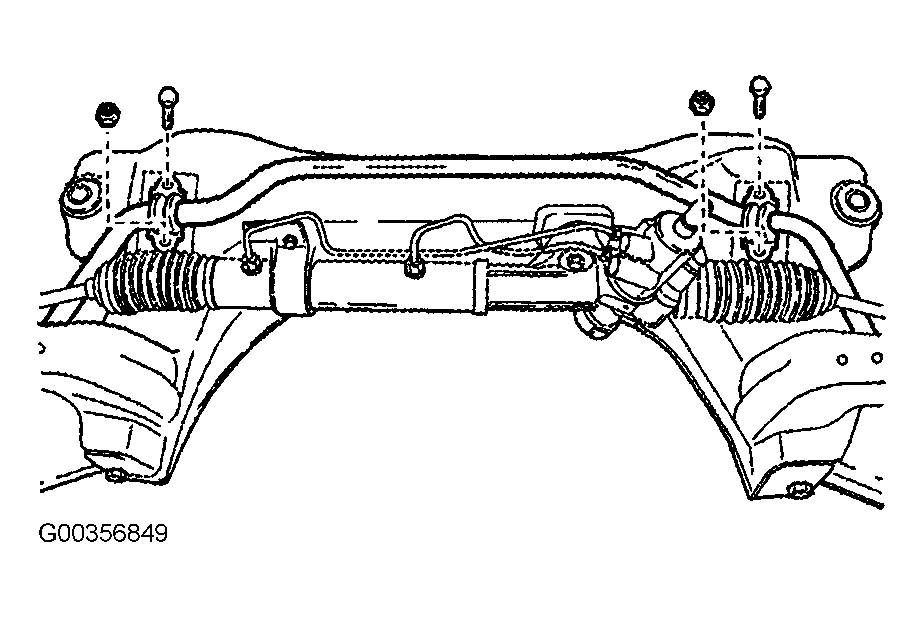

  2. Install the stabilizer bar bolts and nuts. See Figure. Tighten the stabilizer bar bolts and nuts to 37 Ft. Lbs. (50 N.m).
  3. Install the stabilizer link and crossmember.
