Removal & Installation: CENTERMEMBER: Installation

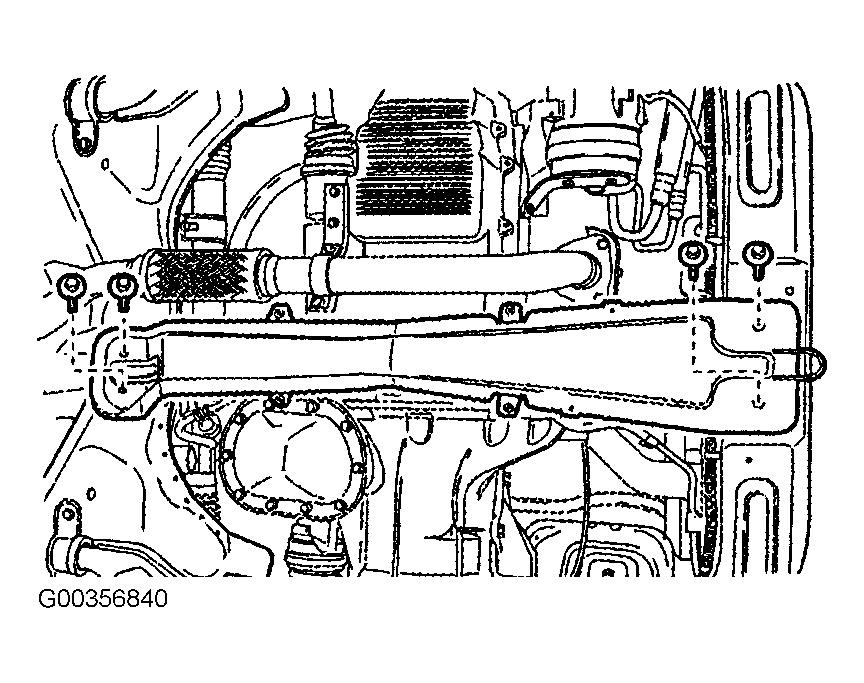

  1. Install the centermember assembly and bolts. See Figure. Tighten the centermember bolts to 66 Ft. Lbs. (90 N.m).

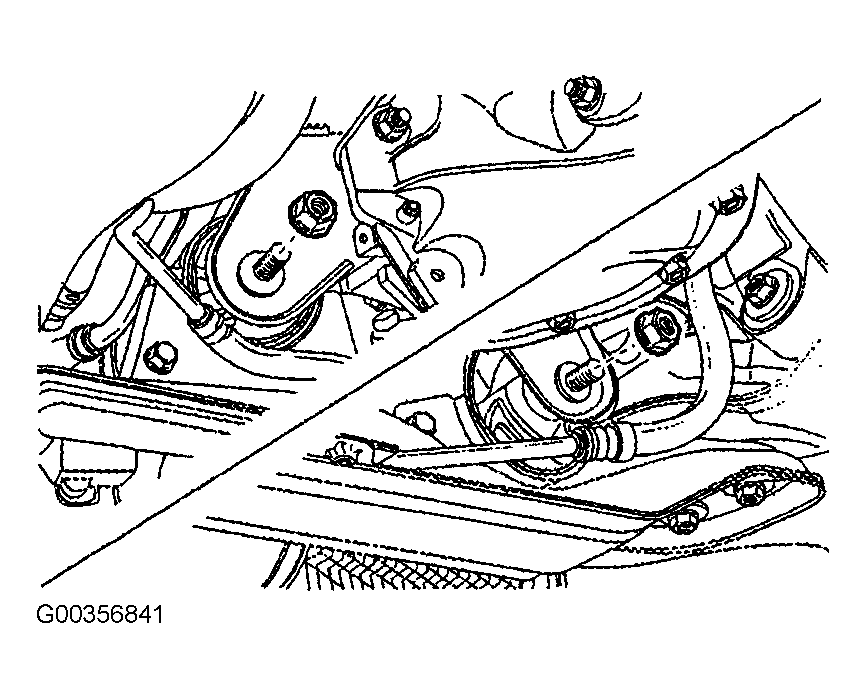

  2. Install the centermember front damping block bolt and near damping block bolt. See Figure. Tighten the centermember front damping block bolt and rear damping block bolt to 59 Ft. Lbs. (80 N.m).
  3. Install remaining components.
