Serpentine Accessory Drive Belt Removal

  1. Remove the coolant reservoir tank.

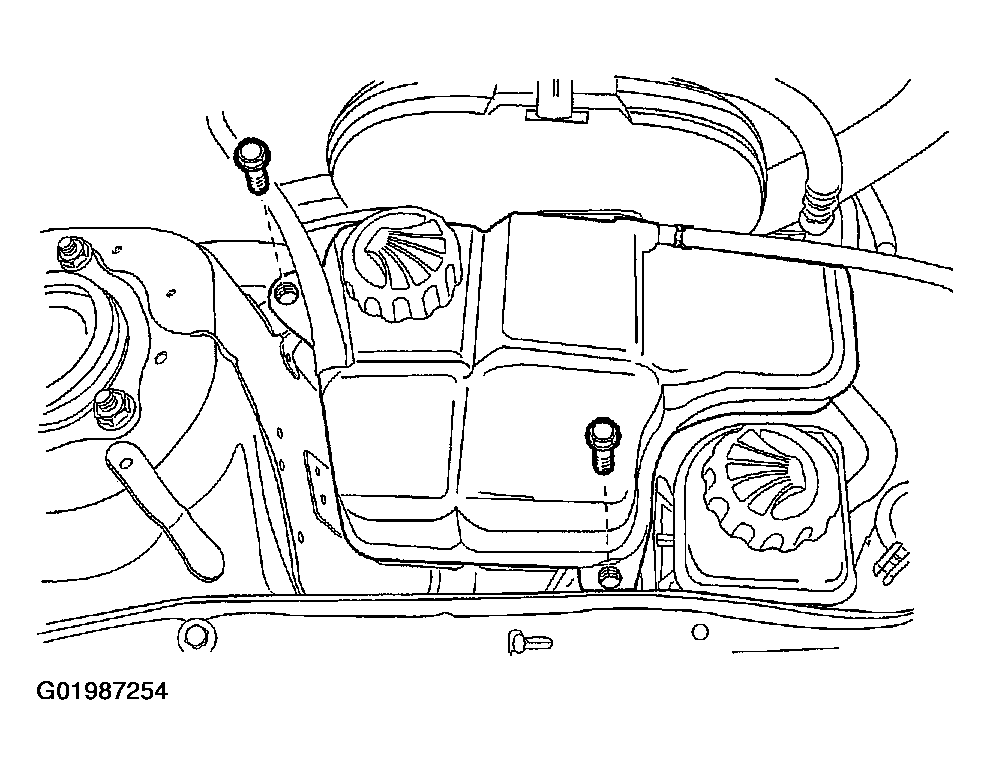

    2. Fig 1: Removing Coolant Reservoir Tank
    G01987254Courtesy of SUZUKI OF AMERICA CORP.
  2. Use a wrench to turn the tensioner bolt clockwise, compressing the tensioner, and releasing the tension on the serpentine accessory drive belt.
  3. Remove the serpentine accessory drive belt.

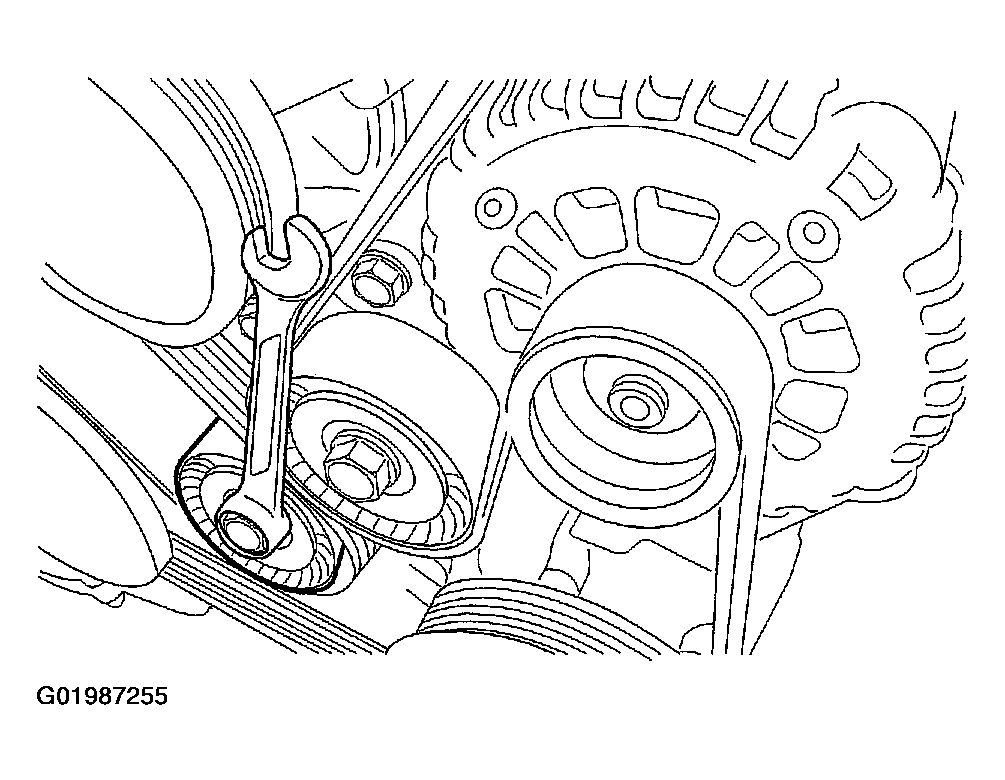

Fig 2: Removing Serpentine Accessory Drive Belt
G01987255Courtesy of SUZUKI OF AMERICA CORP.
