Rack and Pinion Assembly

Fig 1: Installing Circlip

Courtesy of SUZUKI OF AMERICA CORP.

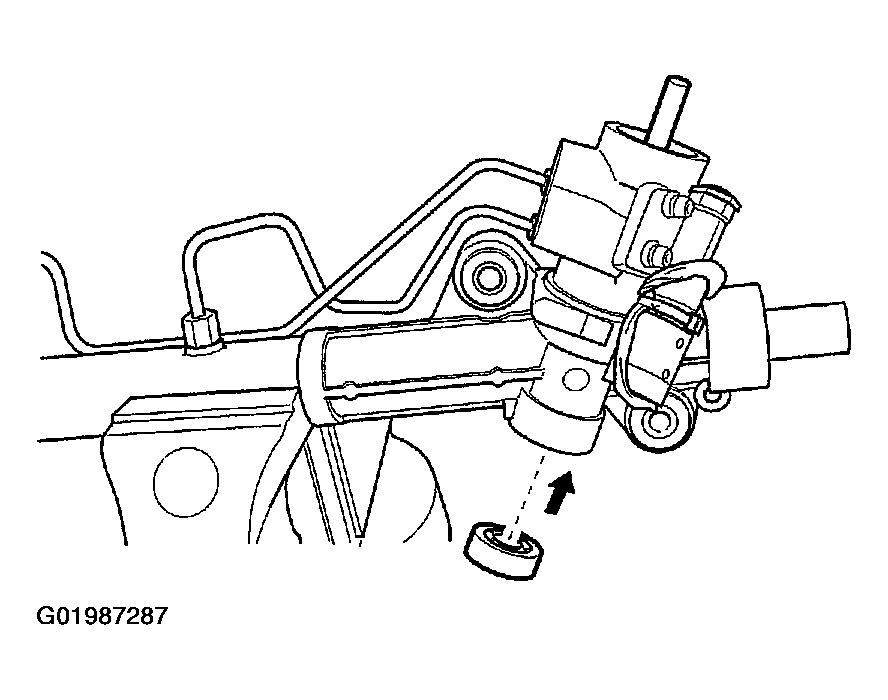

Fig 2: Installing Pinion Shaft Ball Bearing

Courtesy of SUZUKI OF AMERICA CORP.

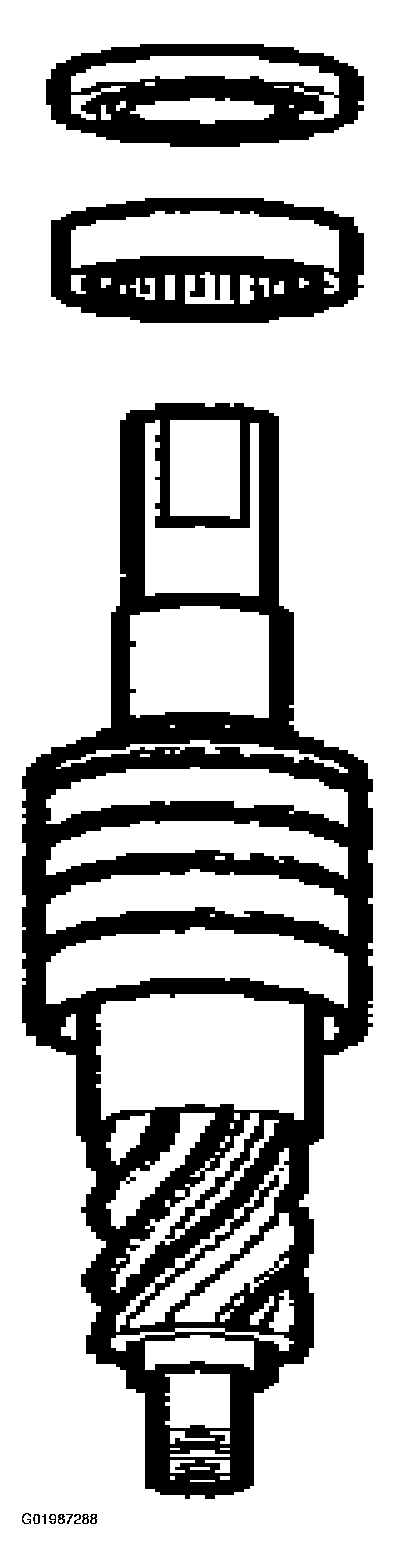

Fig 3: Installing Pinion Shaft, Seal & Needle Bearing

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Installing Snap Ring & Dust Cover (Rubber)

Courtesy of SUZUKI OF AMERICA CORP.

Install the pinion lock nut, snap ring and dust cover.
1. Tighten the pinion lock nut to 30 N.m (22 lb-ft).

Fig 5: Installing Pinion Lock Nut

Courtesy of SUZUKI OF AMERICA CORP.

Coat the rack bearing, the adjuster spring, and the adjuster plug with lithium-based grease and install them into the housing.
With the rack centered, turn the adjuster plug clockwise until a torque of 7 N.m (62 lb-in) is obtained, then back it off by 30 to 40 degrees. Check the pinion torque. Maximum pinion preloaded torque is 1 N.m (9 lb-in).
Thread the locknut on the adjuster plug and tighten it.
1. Tighten the adjuster plug locknut to 75 N.m (56 lb-ft) while holding the adjuster plug stationary with the rack guide spring cap wrench J-42459 or with a 19 mm allen wrench.

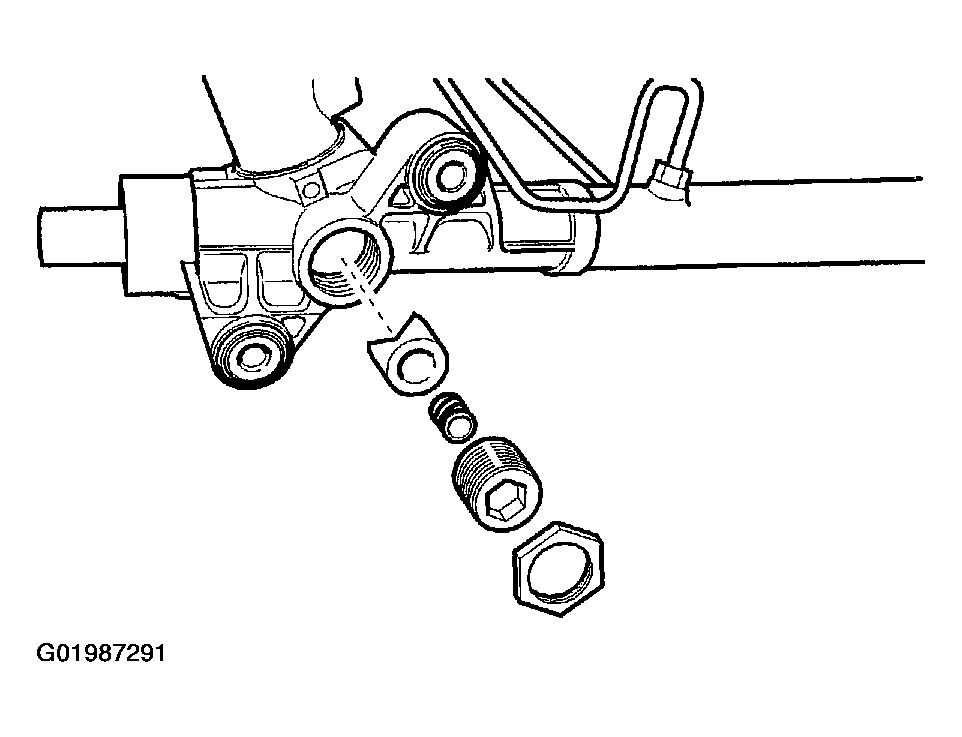

Fig 6: Threading Locknut On Adjuster Plug & Tightening

Courtesy of SUZUKI OF AMERICA CORP.

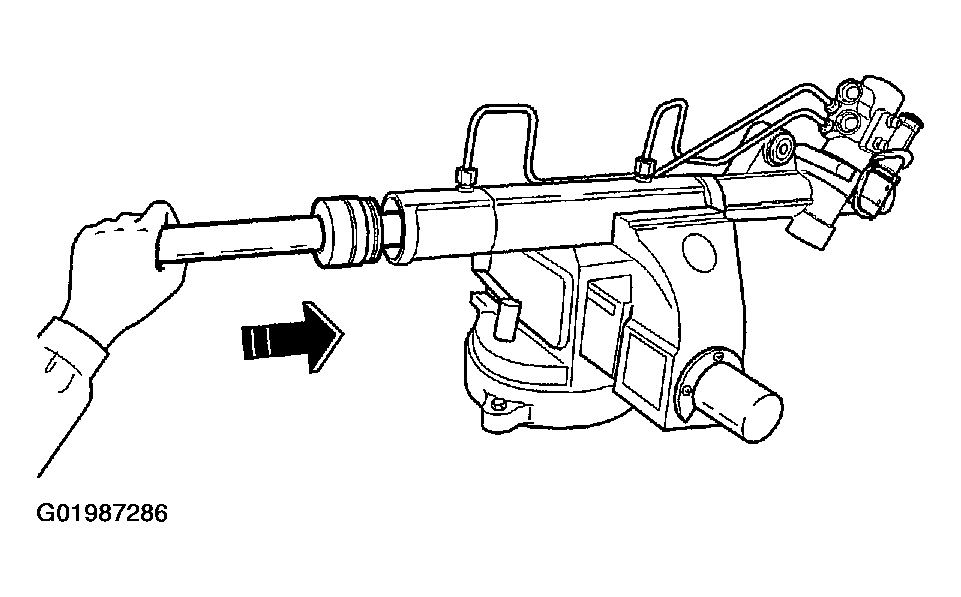

Fig 7: Installing Inner Tie Rod

Courtesy of SUZUKI OF AMERICA CORP.

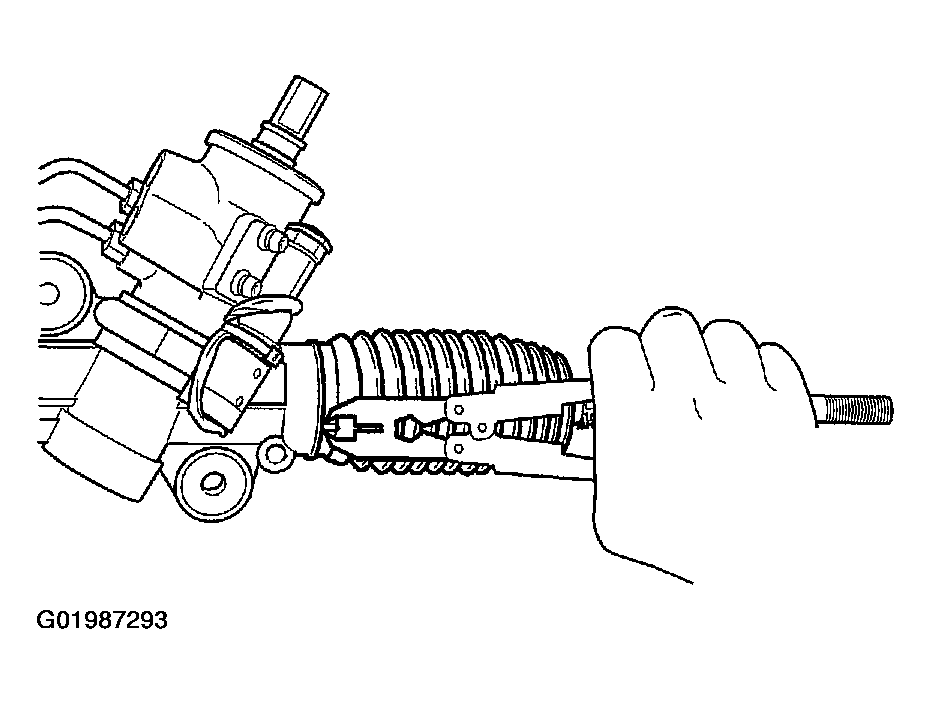

Fig 8: Installing Dust Boot & Retaining Clamps

Courtesy of SUZUKI OF AMERICA CORP.

Install the outer tie rod end and lock nut.
1. Tighten the outer tie rod end lock nut to 64 N.m (47 lb-ft).

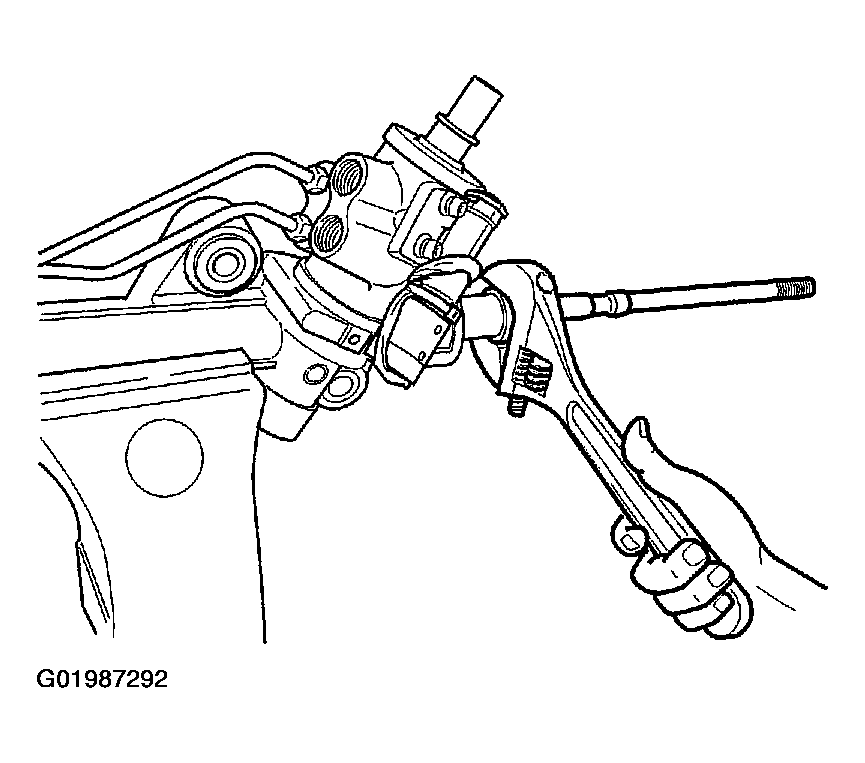

Fig 9: Installing Outer Tie Rod End & Lock Nut

Courtesy of SUZUKI OF AMERICA CORP.
