P/S Pump Disassembly

Tools Required

J-42467 Power Steering Pump Pulley Remover

CAUTION: The power steering pump in this vehicle is not serviceable. Replace, do not repair, a faulty power steering pump. Refer to Power Steering Pump Diagnosis in this section.

Remove the power steering pump from the vehicle. Refer to P/S Pump Assembly Removal .
Using the power steering pump pulley remover J-42467, press the power steering pump from the pulley.

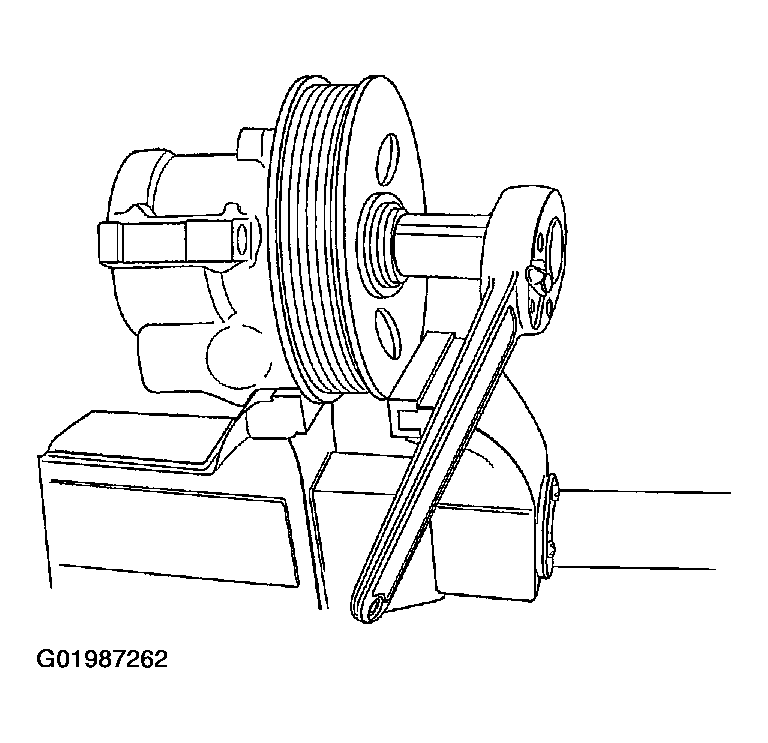

Fig 1: Using Power Steering Pump Pulley Remover

Courtesy of SUZUKI OF AMERICA CORP.
