Component Locations

Refer to illustration for restraint system component locations. See Fig 1.

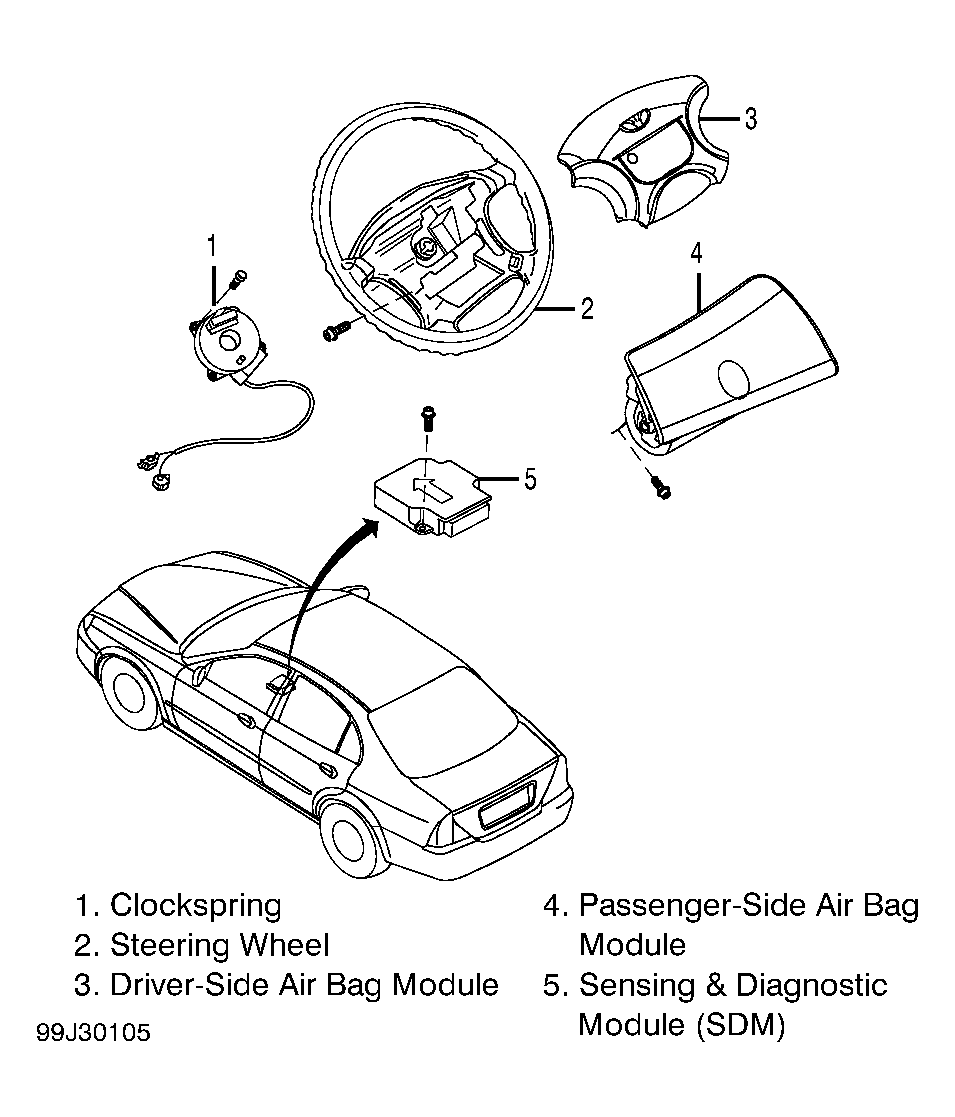

Fig 1: Locating Restraint System Components
G99J30105Courtesy of SUZUKI OF AMERICA CORP.
