Replacing The S.I.R. Clock Spring. (TS 03 02244)
Publication date: 2004-02-24Reference number: TS 03 02244
REPLACING THE S.I.R. CLOCK SPRING
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 03 02244, Date of Issue:
February 24, 2004
| SUZUKI: | 2004 VERONA (RP625) |
| SECTION: | Restraints |
CONDITION

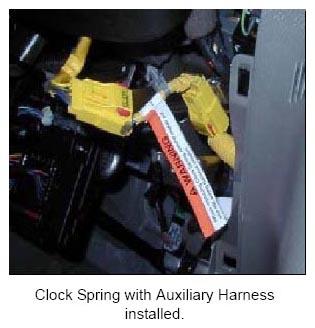

Some 2004 vehicles may have been equipped with an auxiliary harness installed between the clock spring and the main air bag wiring harness. Should the clock spring require replacement, DO NOT re-install the auxiliary harness.
CAUSE
N/A
CORRECTION

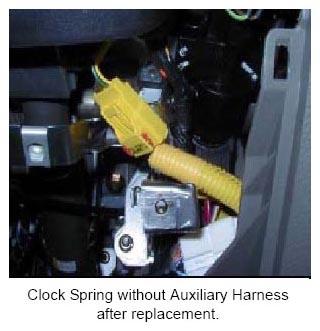

The replacement clock spring does not require the use of the auxiliary harness.
WARNING:
IF THE VEHICLE IS EQUIPPED WITH THE AUXILIARY HARNESS, IT MUST BE REMOVED FROM VEHICLE WHEN A NEW CLOCK SPRING IS INSTALLED.
PARTS INFORMATION
PARTS INFORMATION
| Part # | Part Name | Model(s) | Contents |
|---|---|---|---|
| 48113-86Z01 | Spring Assy, Steering Wheel (Clock Spring) | Verona | 1 |
