Replacing The S.I.R. Clock Spring (TS 02 02244)

Publication date: 2004-02-24
Reference number: TS 02 02244

REPLACING THE S.I.R. CLOCK SPRING

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 02 02244, Date of Issue: February 24, 2004

SUZUKI:	2004 VERONA (RP625)
SECTION:	Restraints

CONDITION

Some 2004 vehicles may have been equipped with an auxiliary harness installed between the clock spring and the main air bag wiring harness. Should the clock spring require replacement, DO NOT re-install the auxiliary harness.

CAUSE

N/A

CORRECTION

The replacement clock spring does not require the use of the auxiliary harness.

WARNING: IF THE VEHICLE IS EQUIPPED WITH THE AUXILIARY HARNESS, IT MUST BE REMOVED FROM VEHICLE WHEN A NEW CLOCK SPRING IS INSTALLED.

PARTS INFORMATION

Part #	Part Name	Model(s)	Contents
48113-86Z01	Spring Assy, Steering Wheel (Clock Spring)	Verona	1

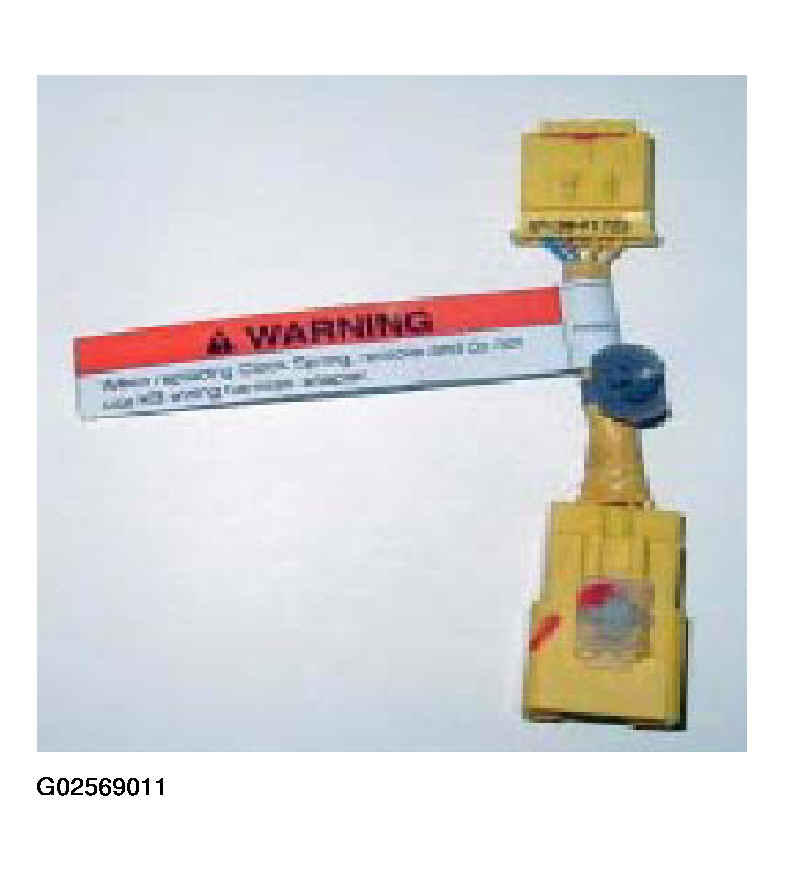

Fig 1: Auxiliary Harness

Courtesy of SUZUKI OF AMERICA CORP.

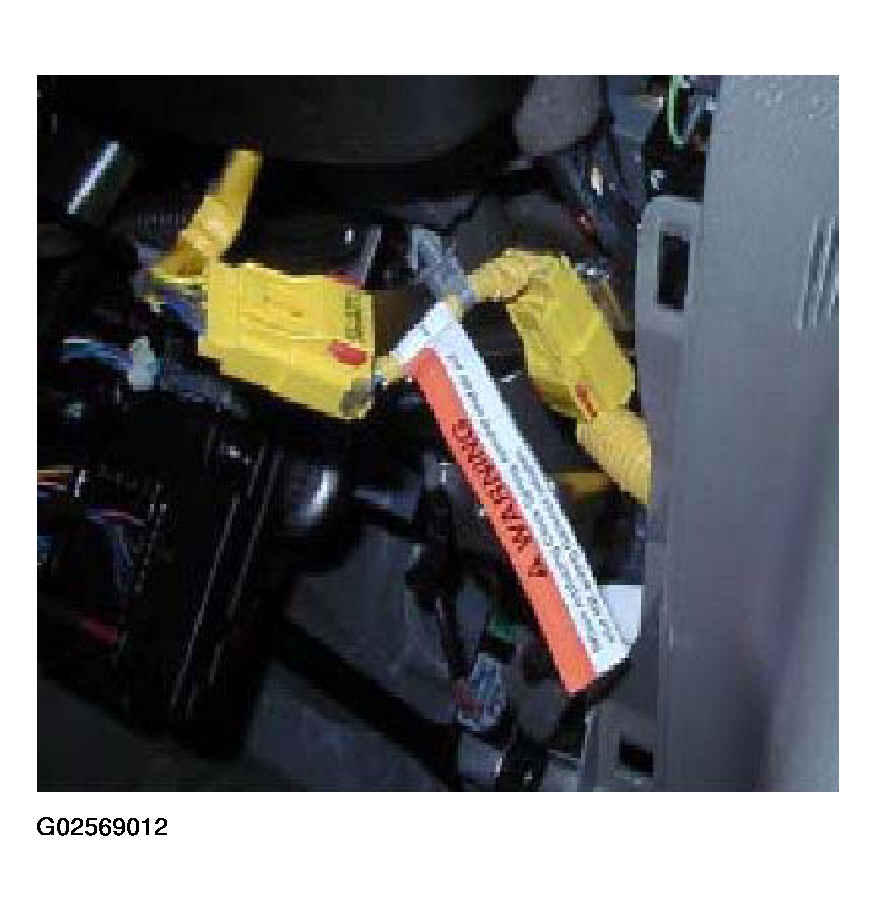

Fig 2: Clock Spring With Auxiliary Harness Installed

Courtesy of SUZUKI OF AMERICA CORP.

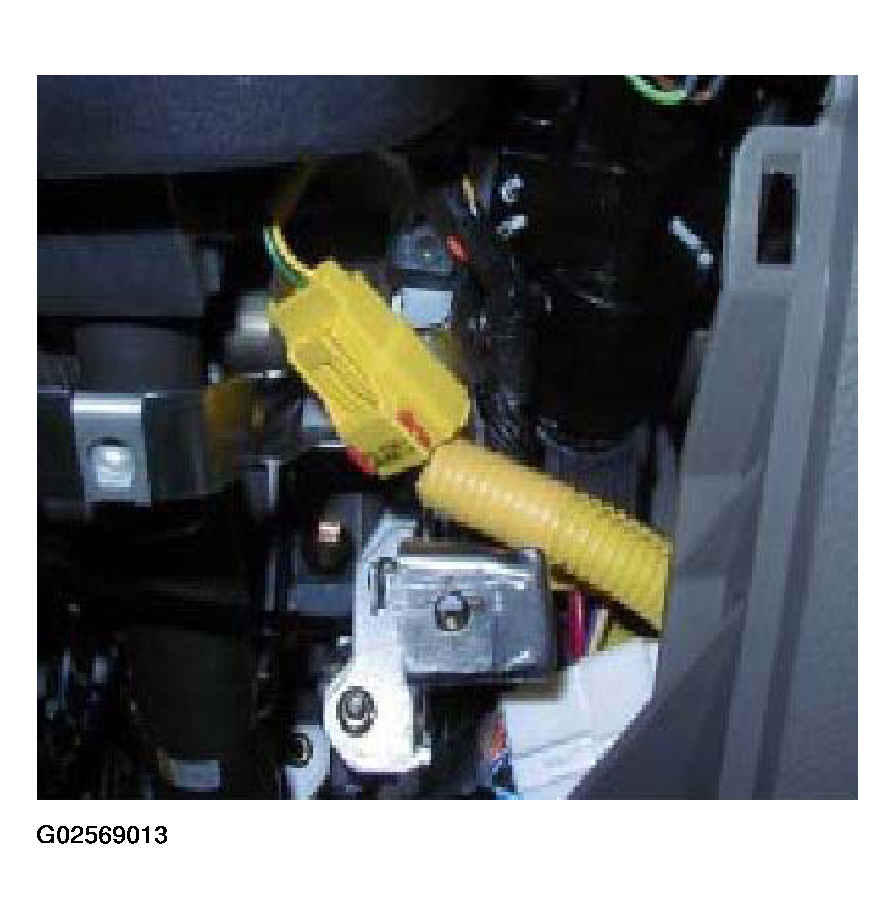

Fig 3: Clock Spring Without Auxiliary Harness After Replacement.

Courtesy of SUZUKI OF AMERICA CORP.
