Safety Recall Campaign "KE", ECM Software Update (TS 02 09214R)

Publication date: 2004-09-21
Reference number: TS 02 09214R

SAFETY RECALL CAMPAIGN "KE", ECM SOFTWARE UPDATE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 02 09214R, Date of Issue: September 21, 2004

SUZUKI:	2004 VERONA (RP625)
SECTION:	Engine

NOTE: It is no longer required to replace the ECM. Updates will be completed by using a PC, the Suzuki Diagnostic System (SDS) Tool and applicable reprogramming software.

CONDITION

An Engine Control Module (ECM) program fault could cause the fuel to air ratio to become too lean in some circumstances, resulting in engine stalling.

CAUSE

ECM software logic.

CORRECTION

Reprogram Engine Control Module (ECM).

NOTE: When the KE Recall is completed, check the vehicle to see if the vehicle is included in the KC Recall and whether the KC Recall has already been completed. If the KC Recall has not been completed be sure to affix both the KE and KC completion stickers to the radiator support as shown in Fig 1 . For California vehicles be sure to provide the customer with a Proof of Correction certification as explained in the KC Emission Recall Bulletin No. SC-24.

AFFECTED VIN RANGE

From	To
KL5VJ52L_4B092733	KL5VJ52L_4B137099
KL5VM52L_4B092736	KL5VM52L_4B137098

PART(S) INFORMATION

Part#	Part Name	Model(s)	Contents
09910-06520	SDS Tool Kit	All	1
99963-01501-223	2004 Verona Reflash Software	04 Verona	1

Open the hood and check for the KE sticker on the radiator core support. If present do not perform the repair, it has already been done. If not present, continue to the next step.
CAUTION: The reprogramming procedure should only be performed by a qualified Technician. If done improperly permanent ECM damage may result.>

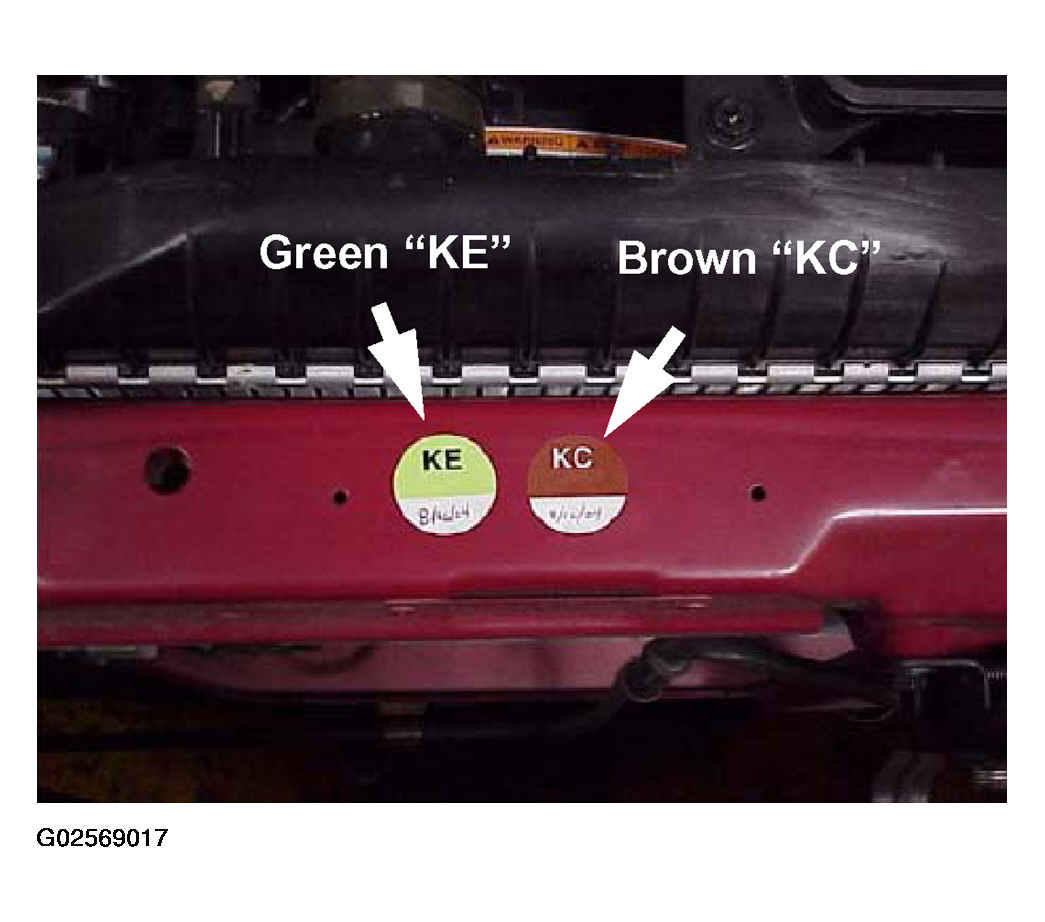

Fig 1: Campaign Completion Stickers
Courtesy of SUZUKI OF AMERICA CORP.
In order to complete the Campaign you need a PC and the following items pictured in Fig 2 : Operator's manual (1), the Software CD (2), the diagnostic System Cable (3), the USB Cable (4) and the SDS Interface Box (5). Extra SDS Tool's and Software CD's are available on suzukipitstop.com

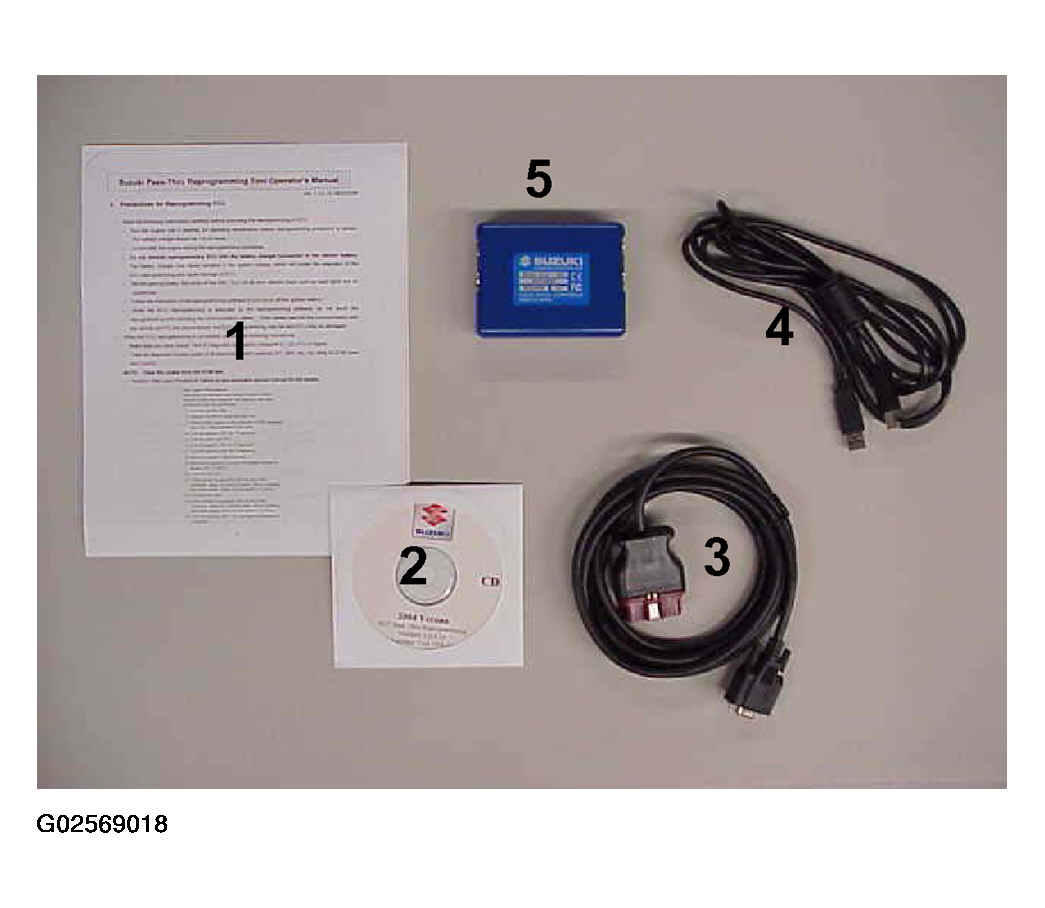

Fig 2: Items Required To Complete Campaign
Courtesy of SUZUKI OF AMERICA CORP.
The software includes a detailed operator's manual which fully explains PC minimum requirements, software installation, USB driver installation, the vehicle reprogramming procedure and trouble shooting charts. Please follow the instructions carefully and completely.
After successfully completing reprogram be sure to affix the "KE " sticker with the dealer number to the radiator core support as shown in Fig 1 . For vehicles that do not have the "KC" sticker please affix the included "KC" sticker along with the "KE" sticker. This update includes the "KC " Campaign fixes.
