Evaporator Core Removal

  1. Install the A/C module. Refer to A/C Module Installation  .
  2. Remove the screws that secure the evaporator case halves.
  3. Remove the evaporator core case cover.
  4. Slide the evaporator flange support plate upward to facilitate the removal of the evaporator.

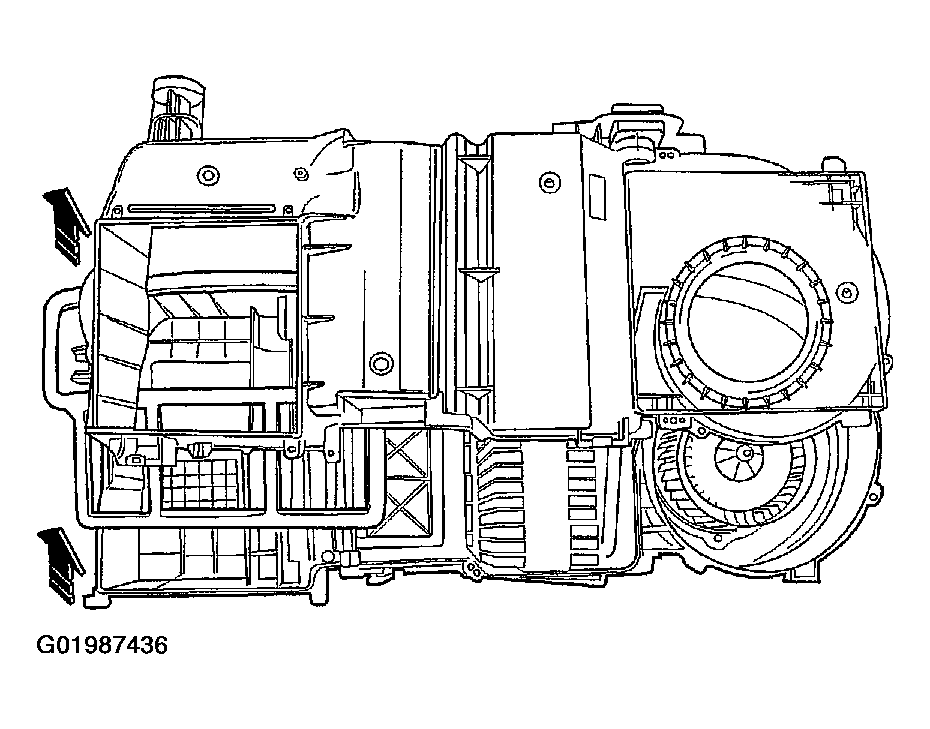

    5. Fig 1: Sliding Evaporator Flange Support Plate Upward
    G01987436Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the evaporator core from the case.
  6. Remove the air conditioning expansion valve. Refer to A/C Expansion Valve Removal  .

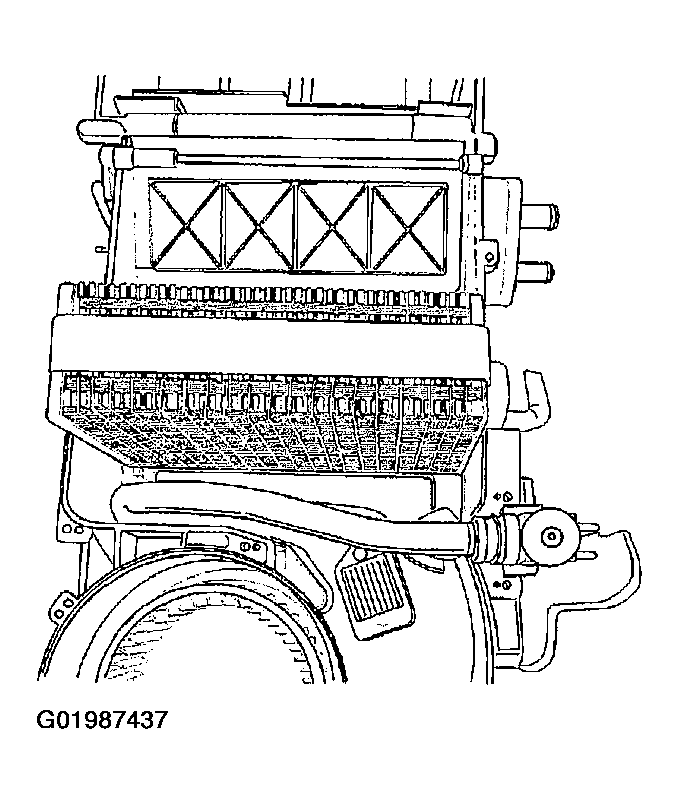

Fig 2: Removing Air Conditioning Expansion Valve
G01987437Courtesy of SUZUKI OF AMERICA CORP.
