Ignition Coil Installation
Installation should follow the removal procedure in the reverse order.
Install the ignition coils.
Tighten
Tighten the ignition coil retaining bolts to 6~8 N.m (53~71 lb-in).

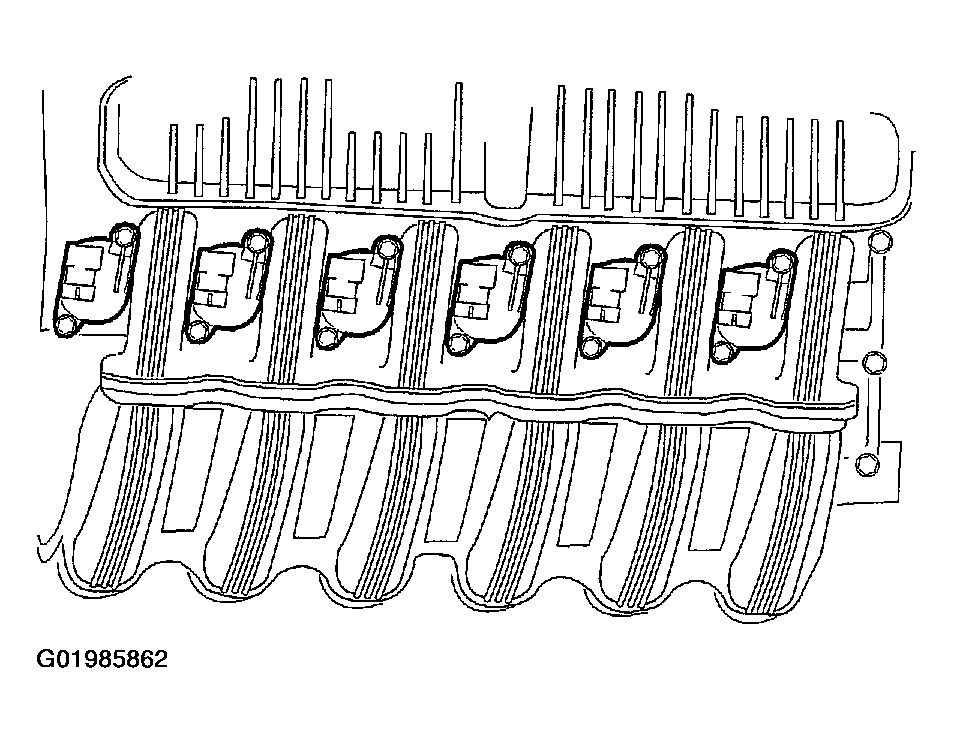

Fig 1: Installing Ignition Coils
Courtesy of SUZUKI OF AMERICA CORP.
