Crankshaft Position (CKP) Sensor Removal

  1. Disconnect the negative battery cable.
  2. Remove the air filter outlet hose.

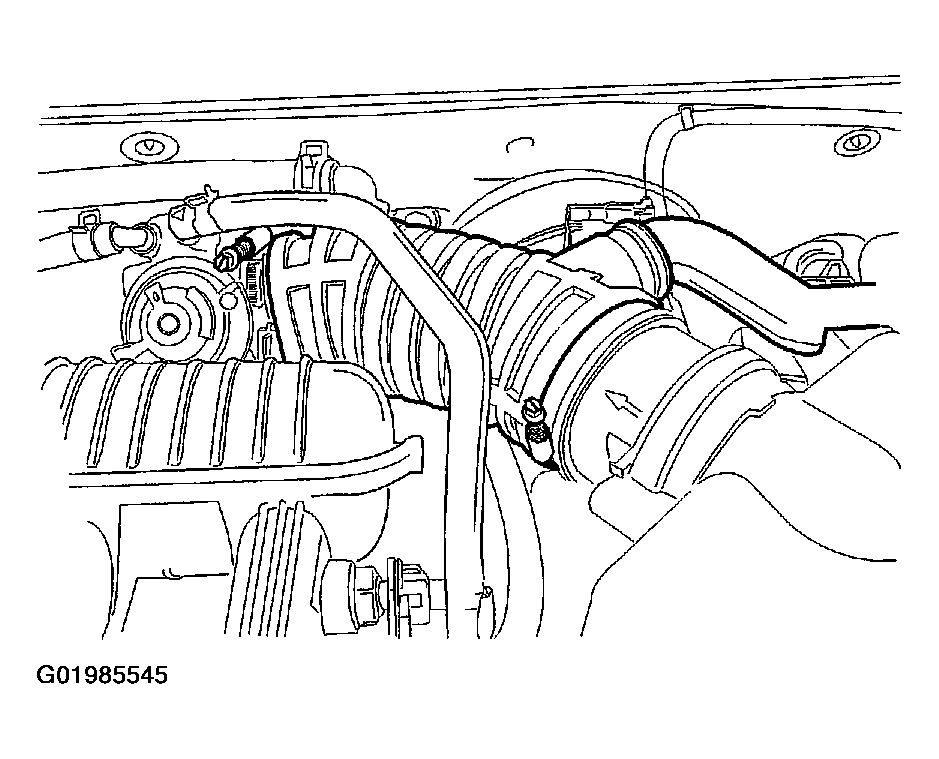

    3. Fig 1: Removing Air Filter Outlet Hose
    G01985545Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the crankshaft position (CKP) sensor wiring harness connector.

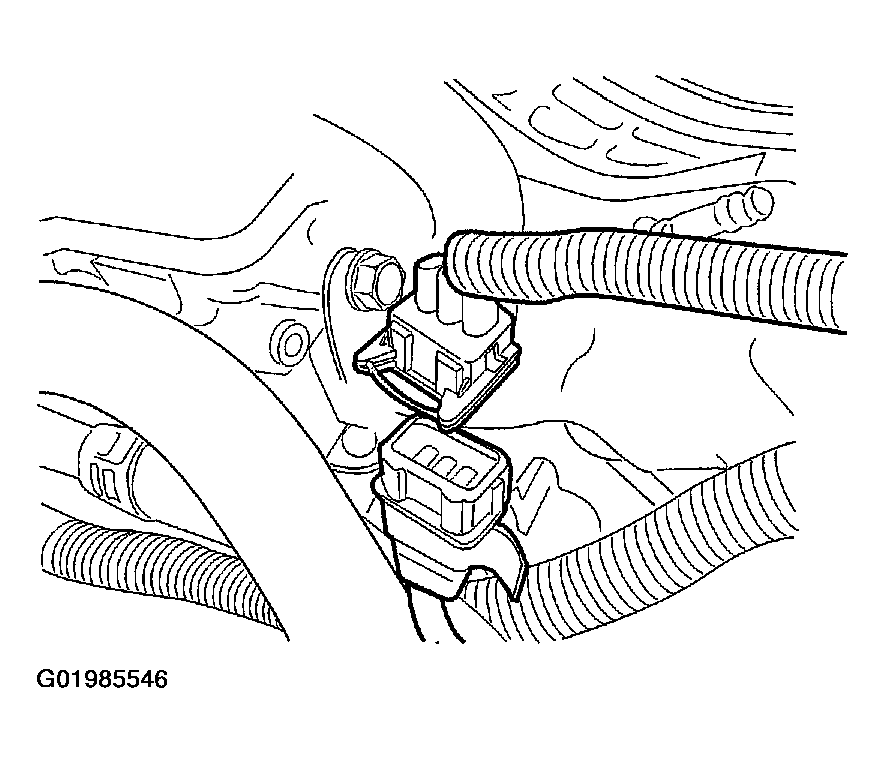

    4. Fig 2: Disconnecting CKP Sensor Wiring Harness Connector
    G01985546Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the crankshaft position (CKP) sensor heat shield housing.

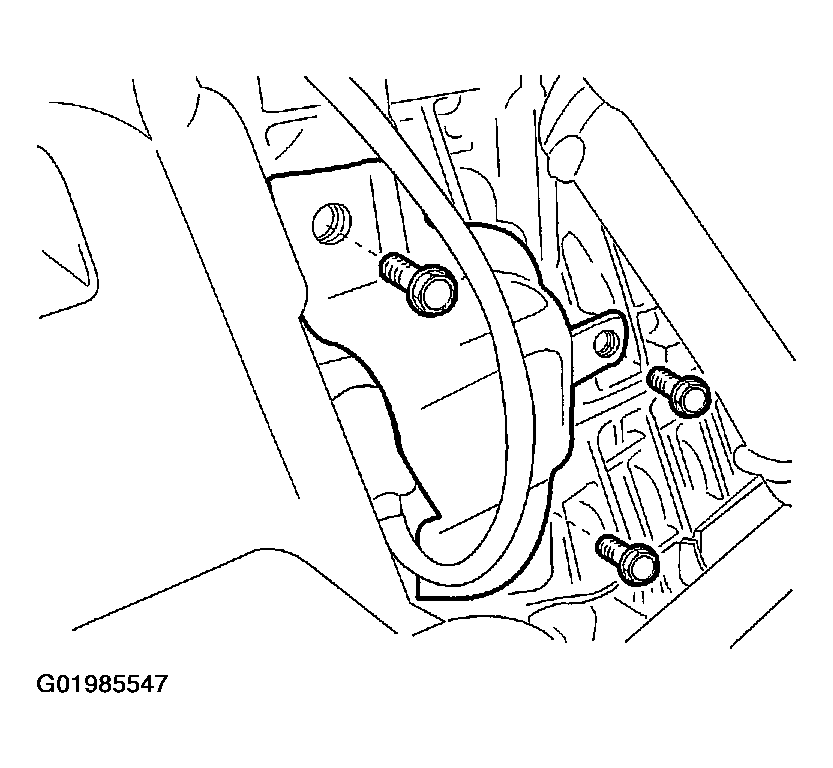

    5. Fig 3: Removing CKP Sensor Heat Shield Housing
    G01985547Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the CKP sensor.

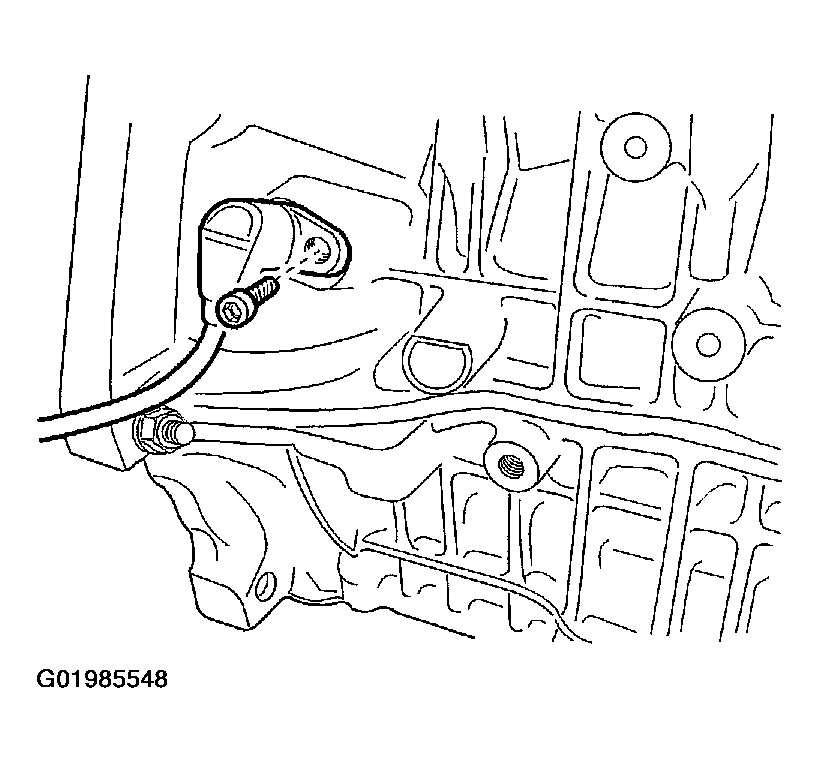

Fig 4: Removing CKP Sensor
G01985548Courtesy of SUZUKI OF AMERICA CORP.
