Crankshaft Position (CKP) Sensor Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Install the crankshaft position (CKP) sensor.

    Tighten

    1. Tighten the CKP sensor retaining bolt to 5-8 N.m (44-71 lb-in).

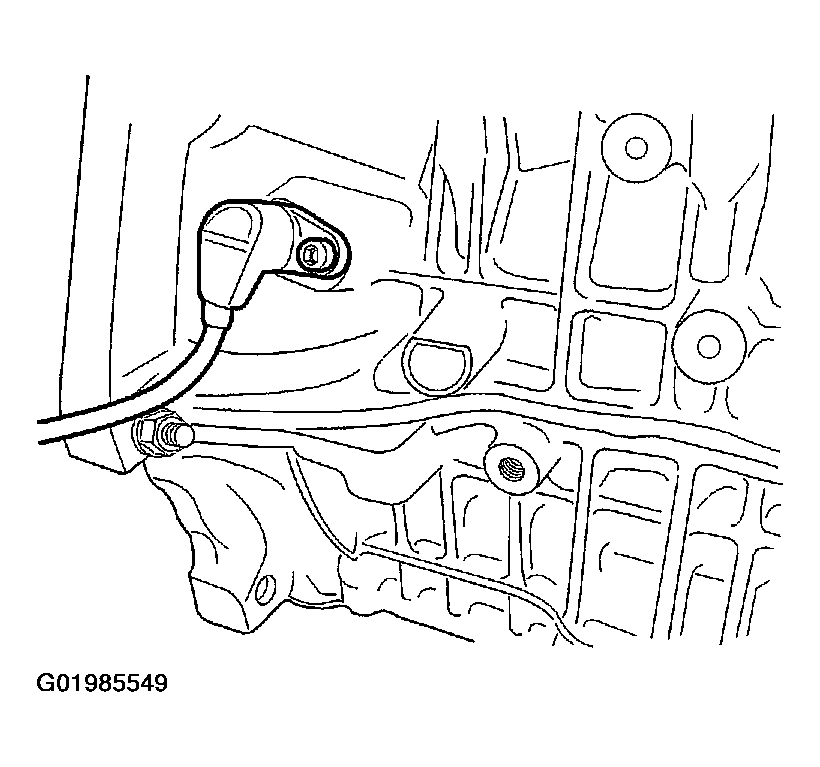

    3. Fig 1: Installing CKP Sensor
    G01985549Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the CKP sensor heat shield housing.

    Tighten

    1. Tighten the CKP sensor heat shield housing bolt to 7-9 N.m (62-80 lb-in).

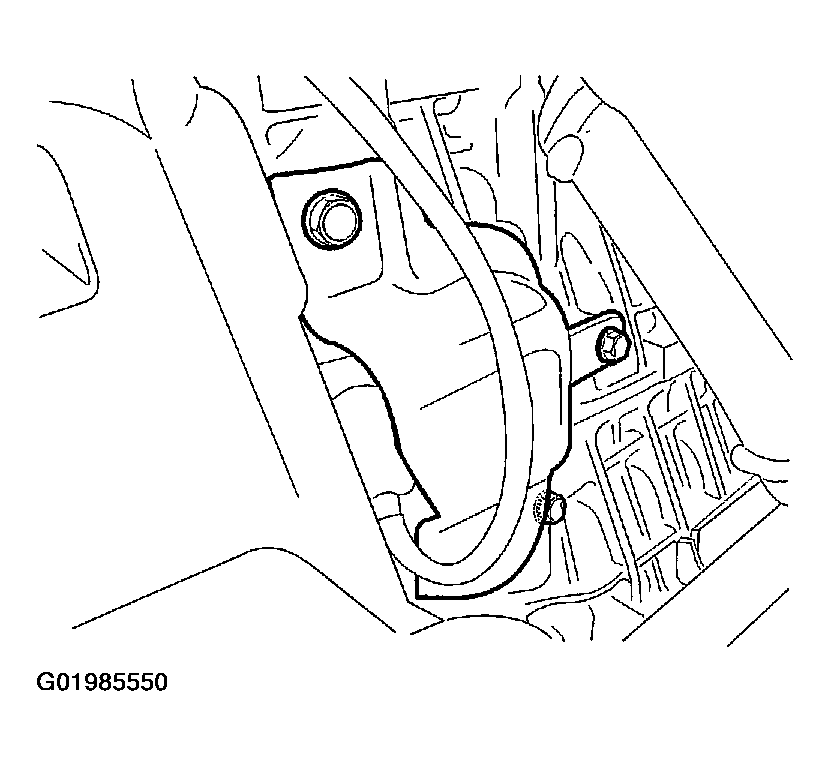

Fig 2: Installing CKP Sensor Heat Shield Housing
G01985550Courtesy of SUZUKI OF AMERICA CORP.
