DTC P0342: Camshaft Position (CMP) Sensor Malfunction (No Signal): Notes

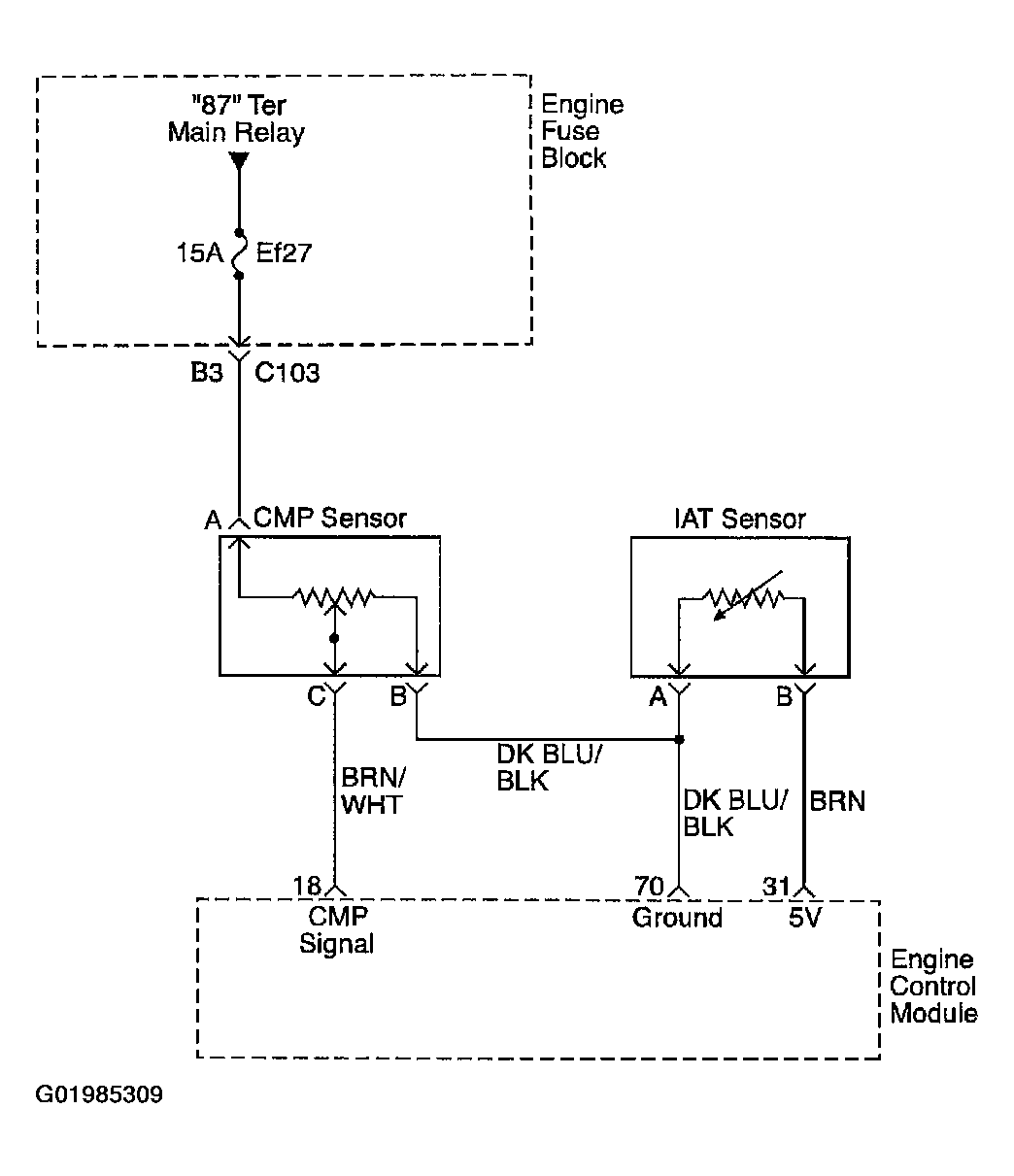

Fig 1: DTC P0342: Camshaft Position (CMP) Sensor Malfunction (No Signal) - System Wiring Diagram
G01985309Courtesy of SUZUKI OF AMERICA CORP.
