Oil Pan / Oil Pump Installation

  1. Installation should follow the removal procedure in the reverse order.
  2. Discard used oil pump oil ring and install new one.
  3. Tighten the oil suction pipe-to-oil pump retaining bolts, oil suction pipe bracket bolt, and the oil pump retaining bolt.
    1. Tighten

    Tighten the oil suction pipe-to-oil pump retaining bolts to 8-12 N.m (106-124 lb-in).

    Tighten the oil suction pipe bracket bolt to 8-12 N.m (106-124 lb-in).

    Tighten the oil pump retaining bolts to 18-22 N.m (13-16 lb-ft).

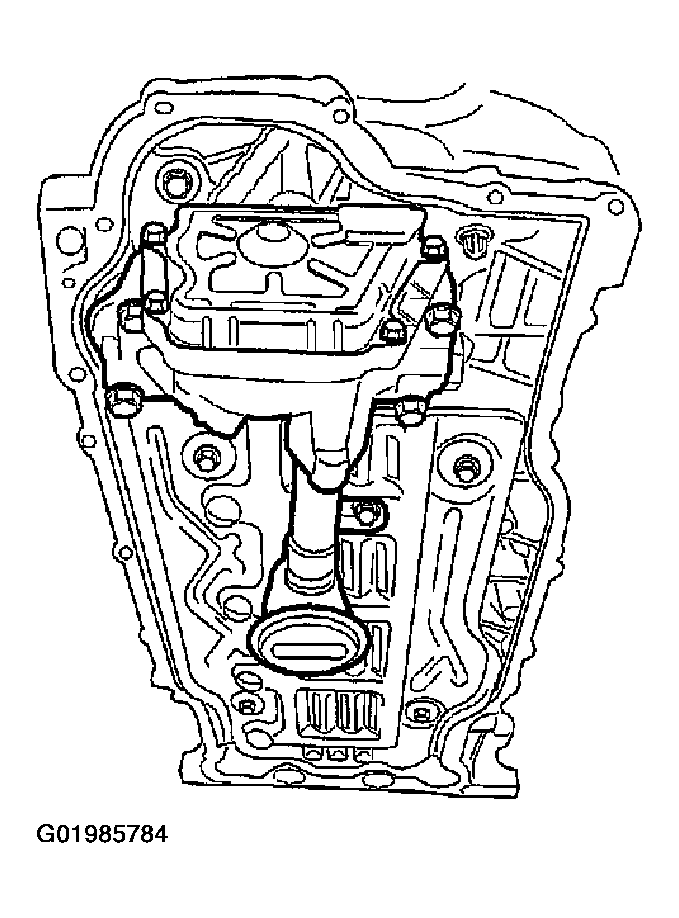

    4. Fig 1: Tightening Oil Suction Pipe-To-Oil Pump Retaining Bolts
    G01985784Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the oil pump sprocket.
    NOTE: Make sure that the dotted surface on the sprocket faces toward the oil pump.
    1. Tighten

    Tighten the oil pump sprocket retaining nut to 18-22 N.m (13-16 lb-ft).

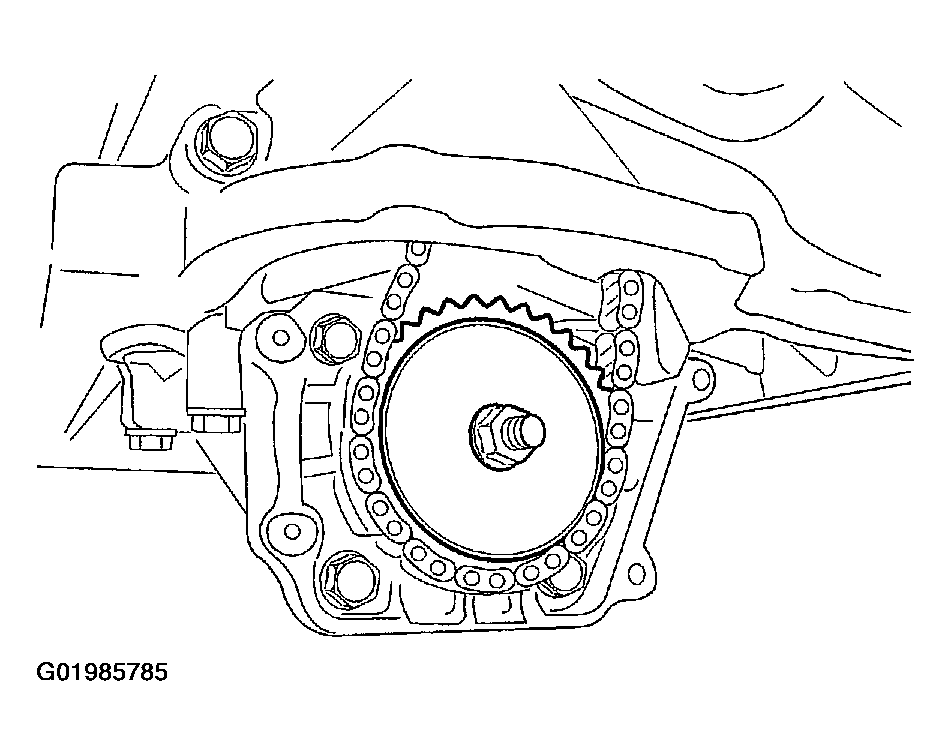

    5. Fig 2: Installing Oil Pump Socket
    G01985785Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the oil pump sprocket cover.
    1. Tighten

    Tighten the oil pump sprocket cover retaining bolts to 5-7 N.m (44-62 lb-in).

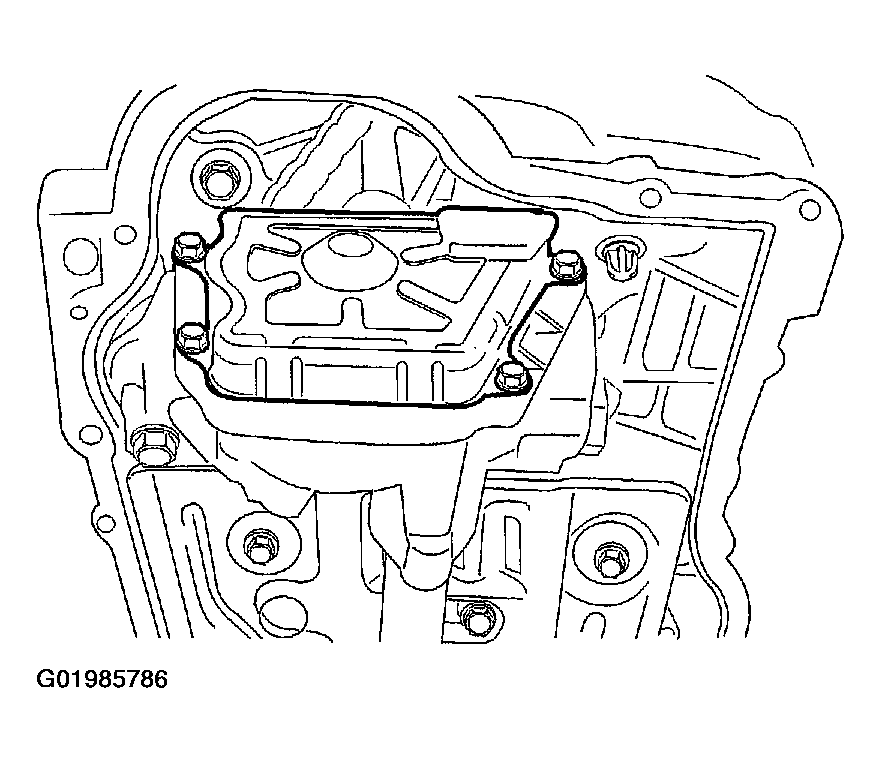

    6. Fig 3: Installing Oil Pump Sprocket Cover
    G01985786Courtesy of SUZUKI OF AMERICA CORP.
  6. After cleaning the remaining liquid gasket and oil, apply new liquid gasket (Loctite® 5900 - M8585) on the oil pan.

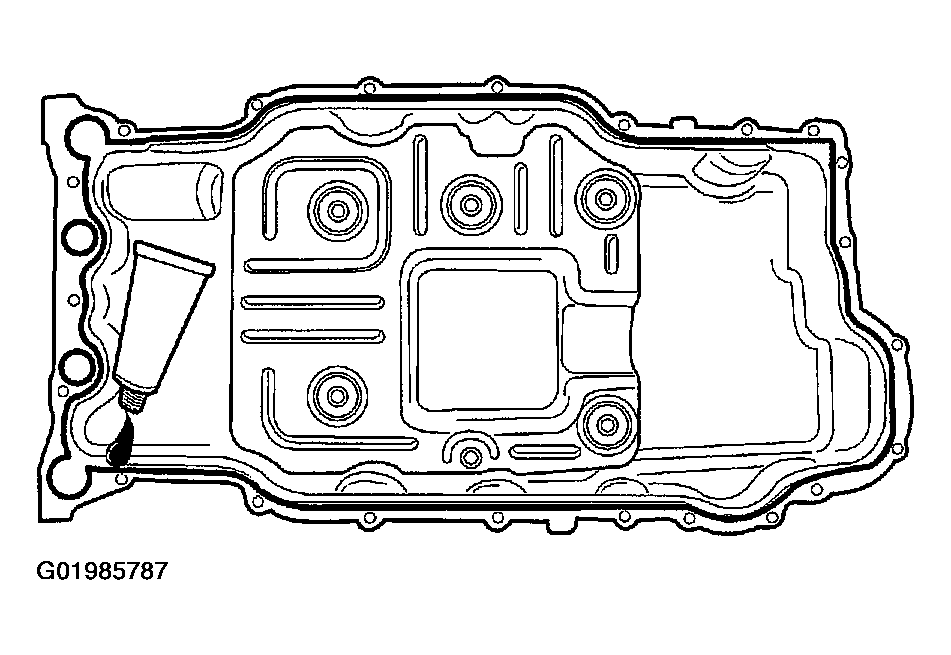

    7. Fig 4: Applying Liquid Gasket On Oil Pan
    G01985787Courtesy of SUZUKI OF AMERICA CORP.
  7. After cleaning the remaining liquid gasket and oil on the bed plate flange, install the oil pan.
    1. Tighten

    Tighten the oil pan retaining bolts to 8-12 N.m (71-106 lb-in).

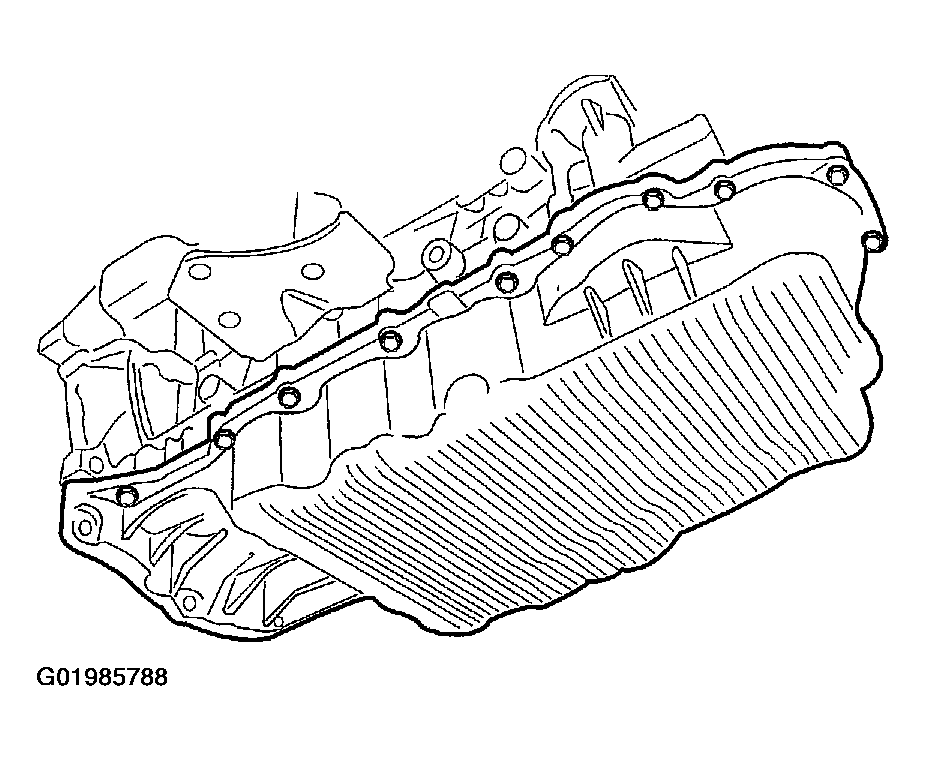

    8. Fig 5: Installing Oil Pan
    G01985788Courtesy of SUZUKI OF AMERICA CORP.
  8. Tighten the center front suspension member bolts.
    1. Tighten

    Tighten the center front suspension member bolts to 80-100 N.m (59-74 lb-ft).

  9. Tighten the front engine mount bracket-to-damper bush bolt.
    1. Tighten

    Tighten the front engine mount bracket-to-damper bush bolt to 70-90 N.m (52-66 lb-ft).

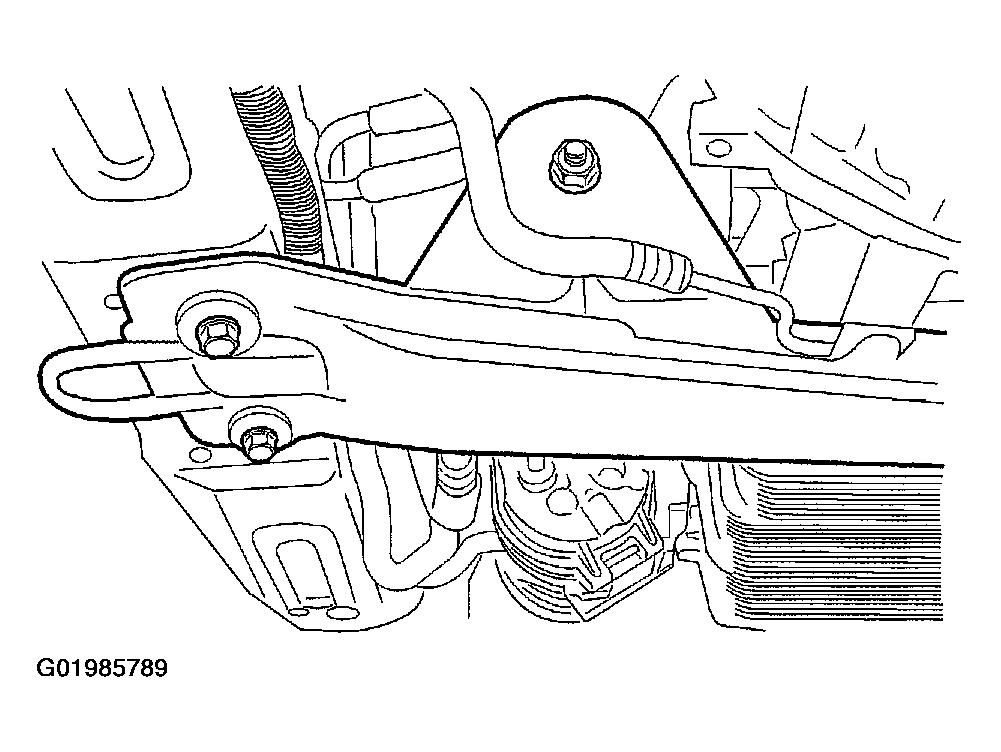

    10. Fig 6: Tightening Front Engine Mount Bracket-To-Damper Bush Bolt
    G01985789Courtesy of SUZUKI OF AMERICA CORP.
  10. Tighten the oil pan flange-to-transaxle bolt.
    1. Tighten

    Tighten the oil pan flange-to-transaxle bolt to 27-35 N.m (20-26 lb-ft).

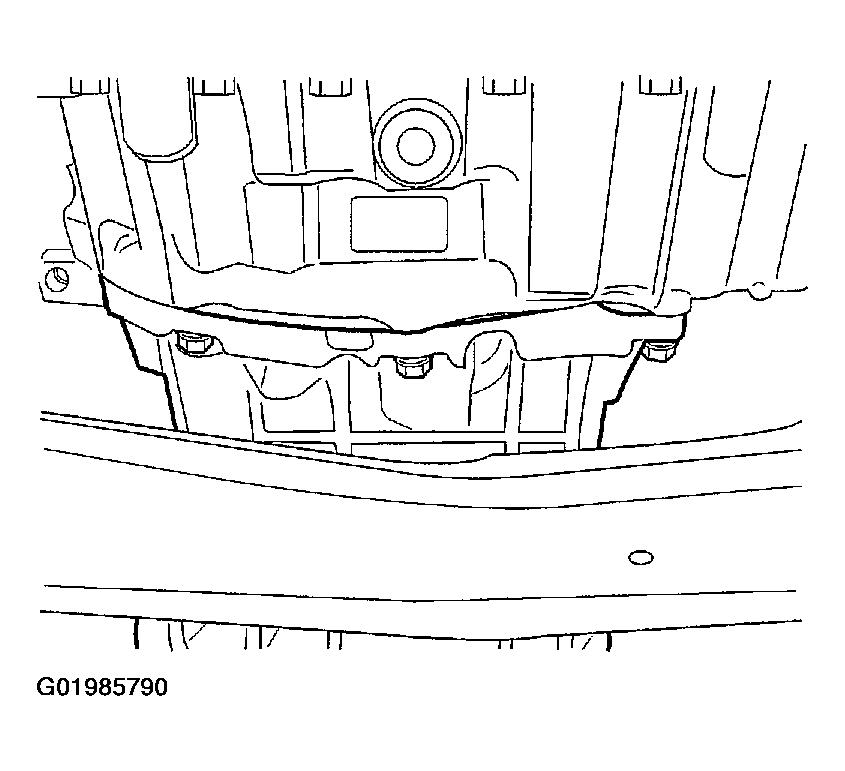

    11. Fig 7: Tightening Oil Pan Flange-To-Transaxle Bolt
    G01985790Courtesy of SUZUKI OF AMERICA CORP.
  11. Discard used oil pan drain plug washer and replace it with a new one.
  12. Install the oil pan drain plug.
    1. Tighten

    Tighten the oil pan drain plug to 35-45 N.m (26-33 lb-ft).

  13. Refill the engine with engine oil.
  14. Install the engine under cover.
    1. Tighten

    Tighten the engine under cover retaining bolts to 17-27 N.m (13-20 lb-ft).

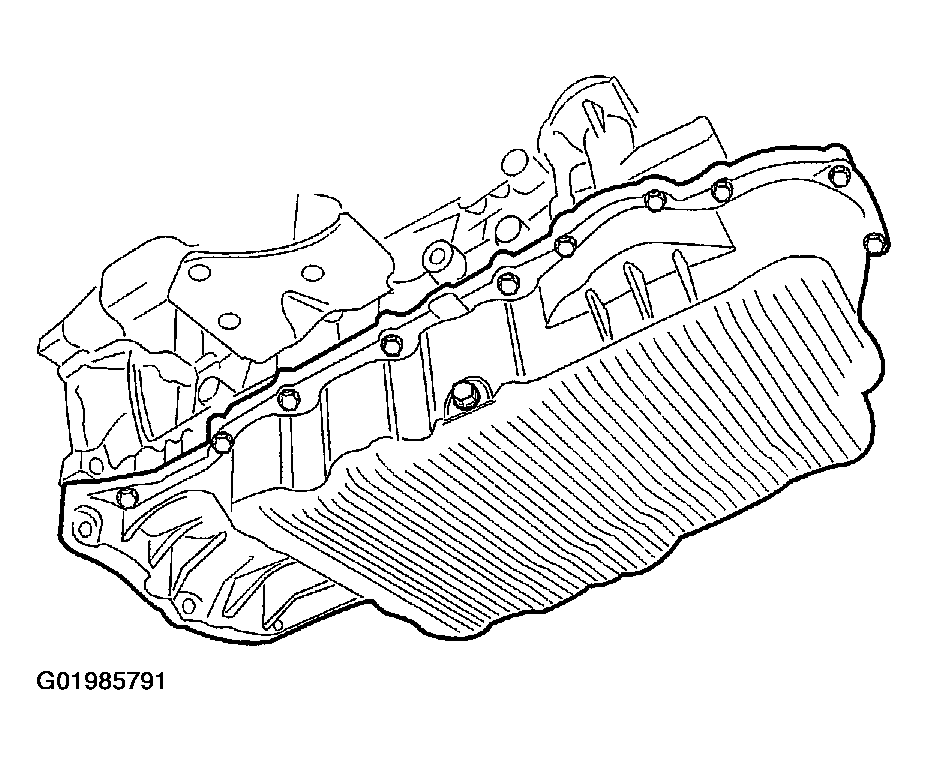

Fig 8: Installing Engine Under Cover
G01985791Courtesy of SUZUKI OF AMERICA CORP.
