Oil Pressure Test

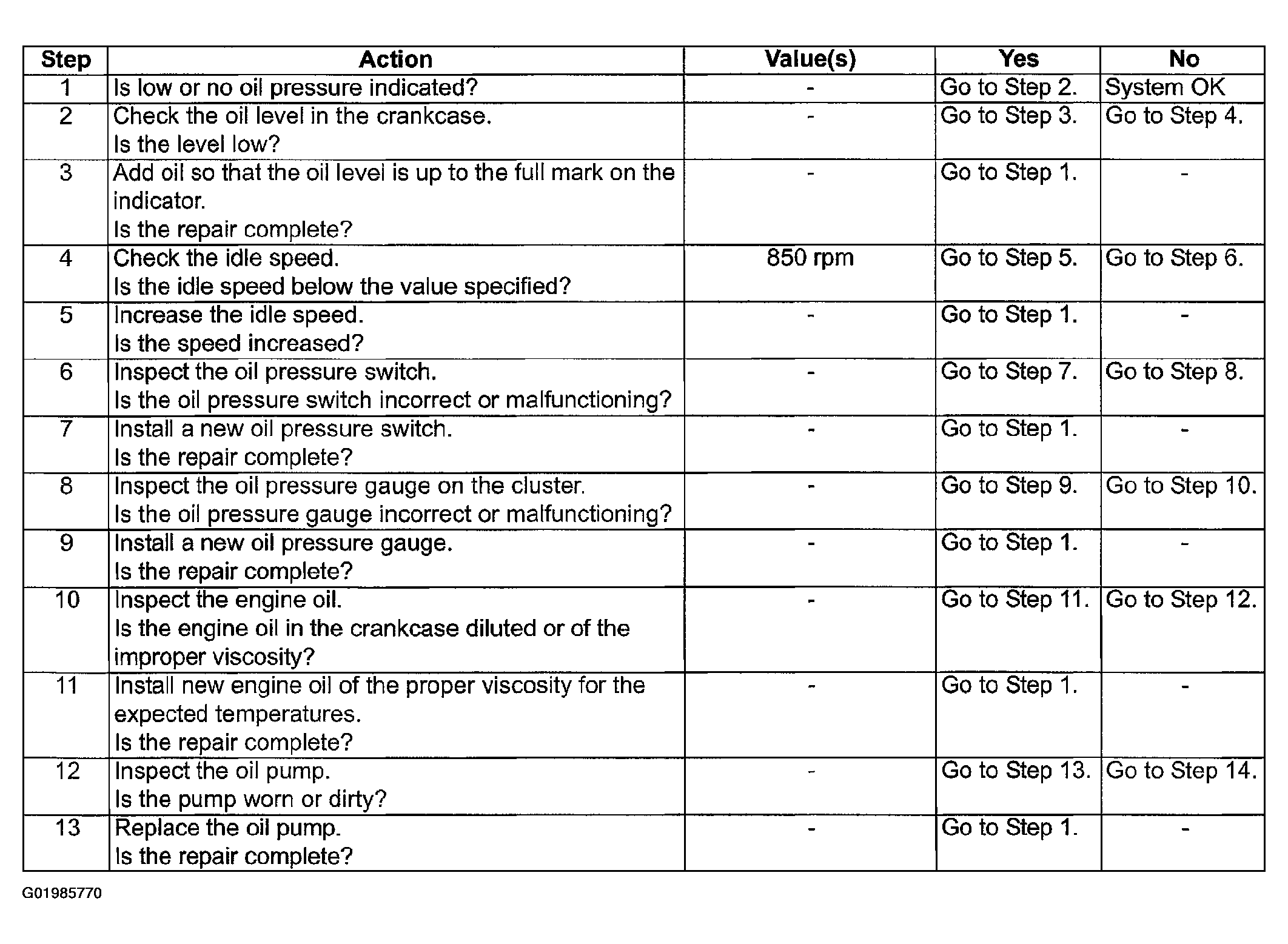

Fig 1: Oil Pressure Test Chart (1 Of 2)
G01985770Courtesy of SUZUKI OF AMERICA CORP.

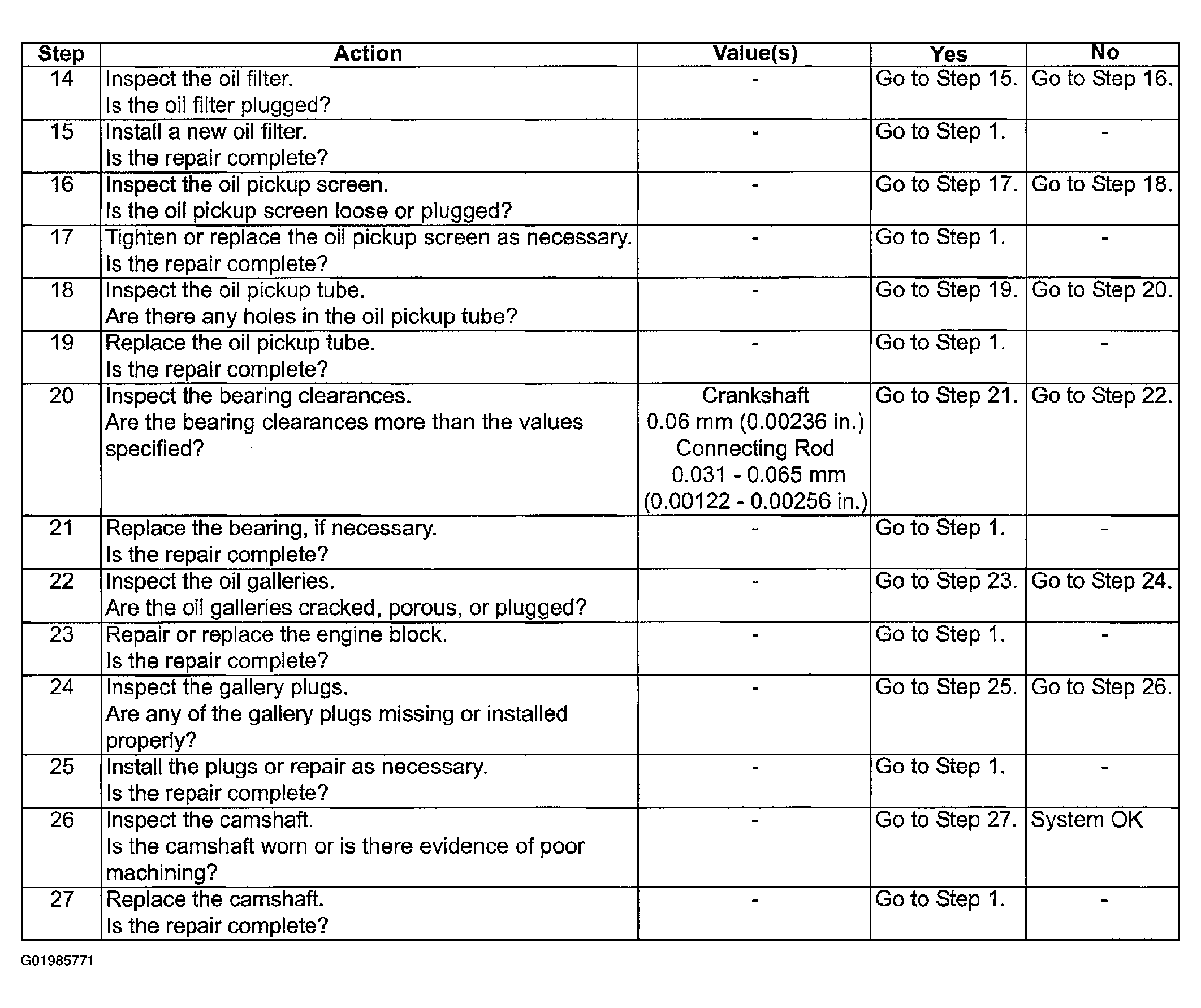

Fig 2: Oil Pressure Test Chart (2 Of 2)
G01985771Courtesy of SUZUKI OF AMERICA CORP.
