Fuel Filter Removal
WARNING:
The fuel system is under pressure. To avoid fuel spillage and the risk of personal injury or fire, it is necessary to relieve the fuel system pressure before disconnecting the fuel lines.
- Relieve the fuel system pressure. Refer to Fuel System Pressure Relief .
- Disconnect the negative battery cable.

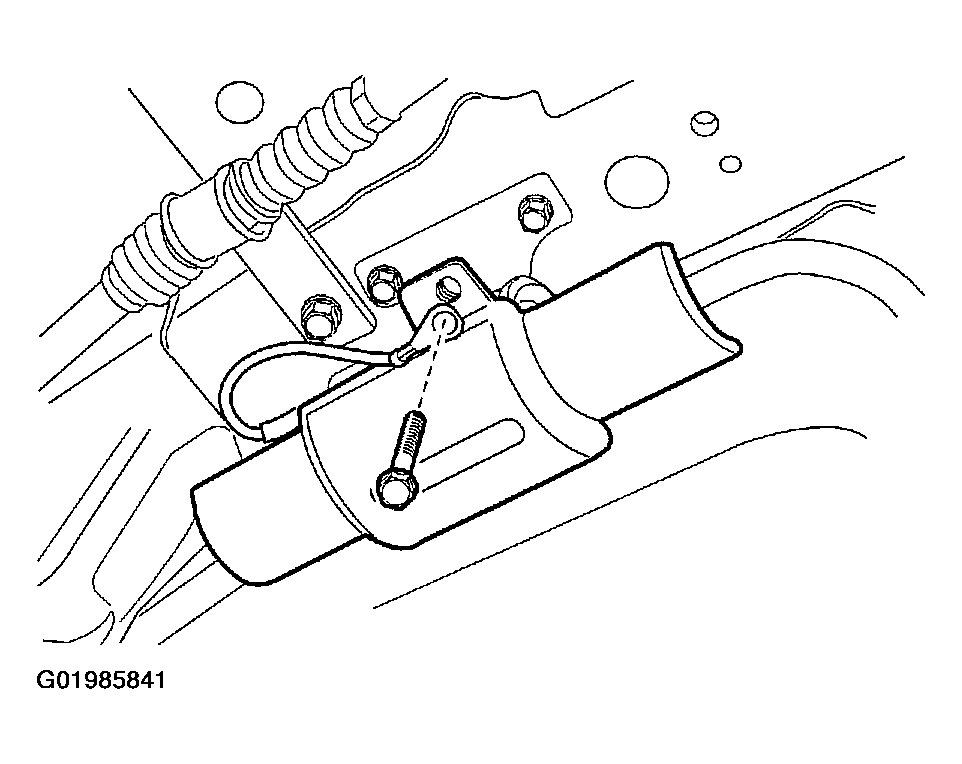

- Remove the fuel filter protector located on the underbody.
- Disconnect the rear fuel feeding tube connector and the rear fuel filter tube connector.
