Muffler - Front Installation

Connect the front muffler to the rubber hanger.
Attach the front muffler and the gasket to the rear muffler using the nuts. Secure the front muffler to the rubber hanger.
Tighten
1. Tighten the front muffler-to-rear muffler nuts to 40 N.m (30 lb-ft).

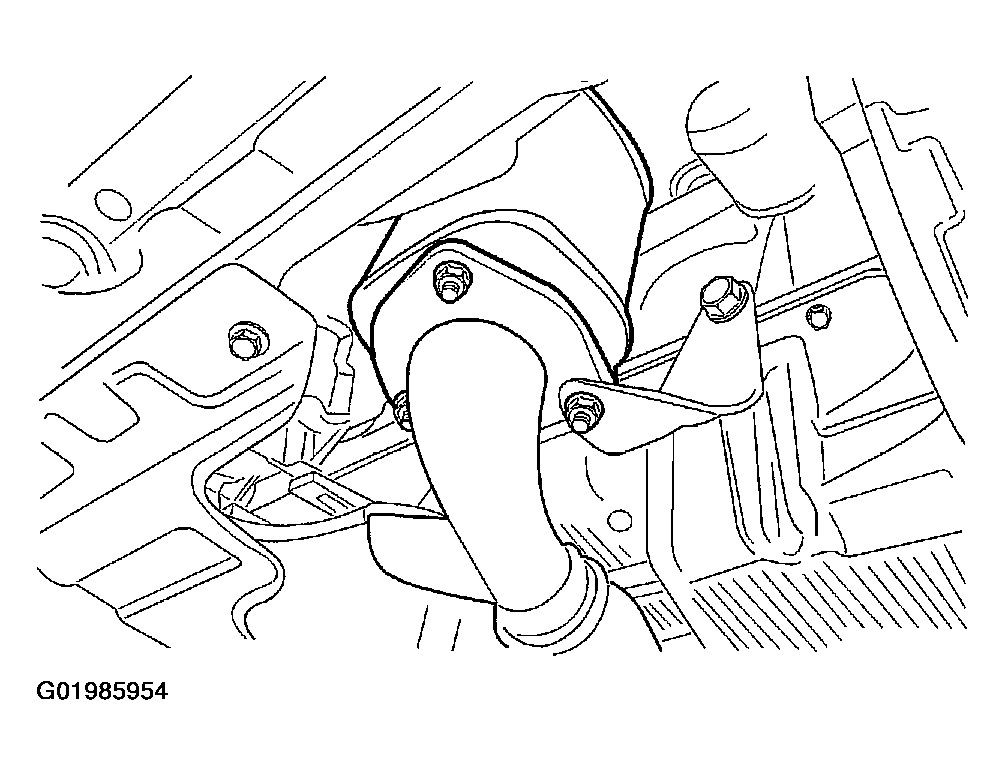

Fig 1: Attaching Front Muffler & Gasket To Rear Muffler

Courtesy of SUZUKI OF AMERICA CORP.

Secure the front muffler assembly to the exhaust front pipe with the nuts.
Tighten
1. Tighten the front muffler-to-exhaust front pipe nuts to 30 N.m (22 lb-ft).

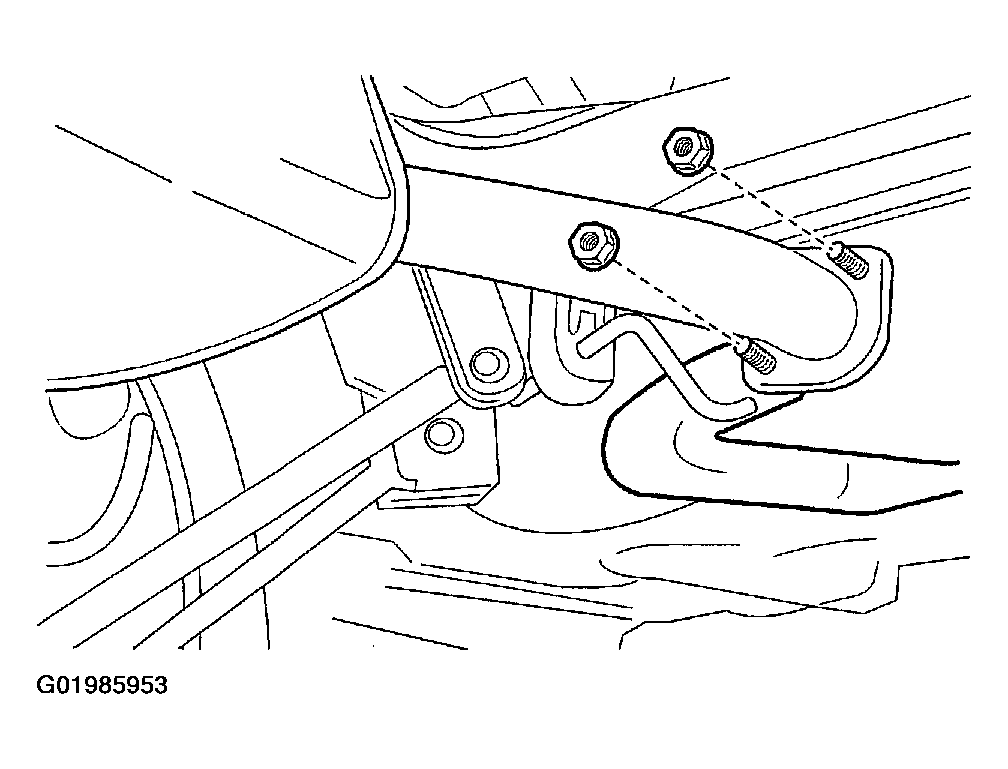

Fig 2: Securing Front Muffler Assembly

Courtesy of SUZUKI OF AMERICA CORP.
