Exhaust Front Pipe Installation

  1. Install the exhaust front pipe and the gasket.
  2. Install the exhaust front muffler to exhaust front pipe nuts.

    Tighten

    1. Tighten the front muffler to exhaust front pipe nuts to 30 N.m (22 lb-ft).

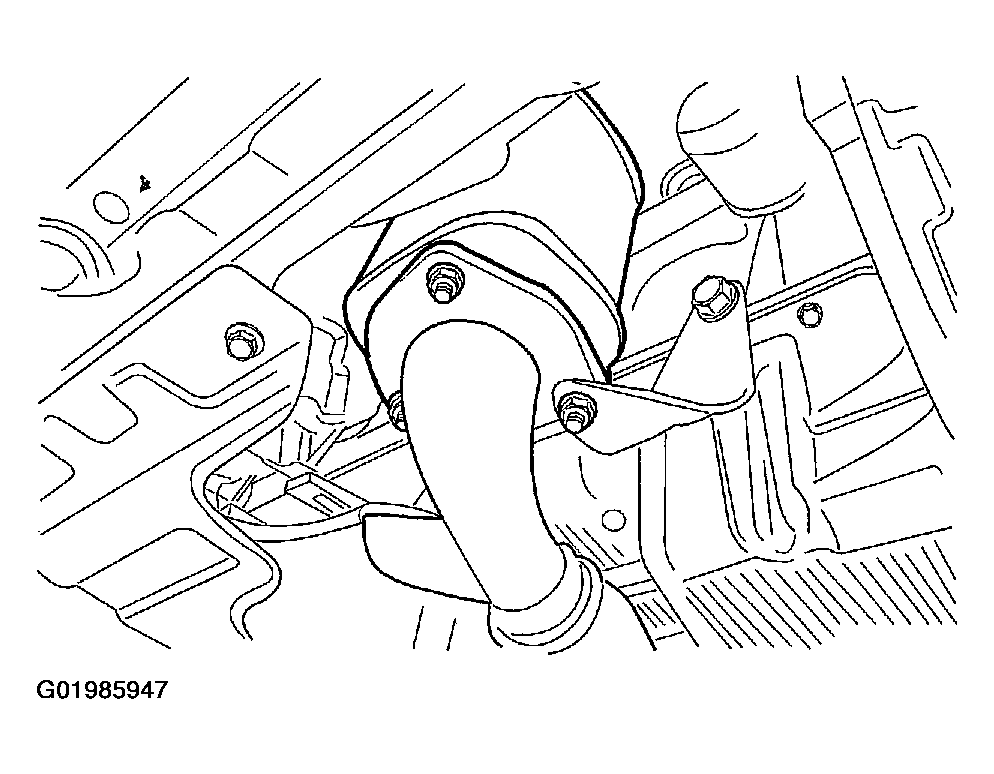

    3. Fig 1: Installing Exhaust Front Muffler To Exhaust Front Pipe Nuts
    G01985947Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the exhaust front pipe from the rubber hanger.

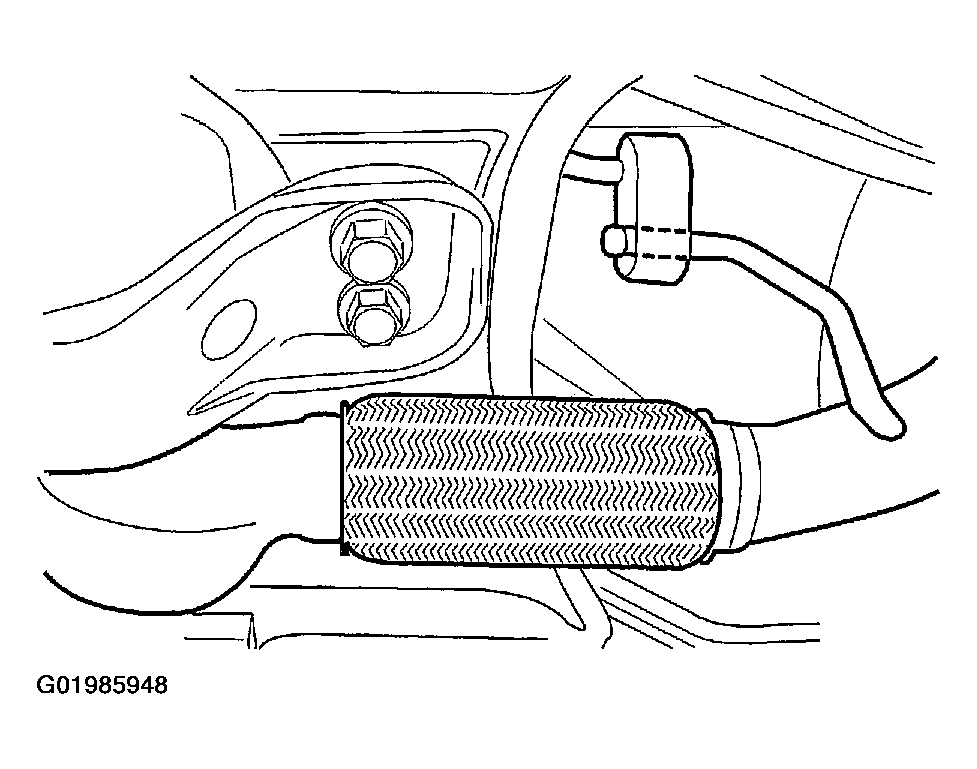

    4. Fig 2: Connecting Exhaust Front Pipe From Rubber Hanger
    G01985948Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the exhaust lower bracket.
  5. Install the exhaust lower bracket bolts.

    Tighten

    1. Tighten the exhaust lower bracket bolts to 40 N.m (30 lb-ft).
  6. Install the exhaust front pipe nuts and the gasket.

    Tighten

    1. Tighten the exhaust front pipe nuts to 40 N.m (30 lb-ft).

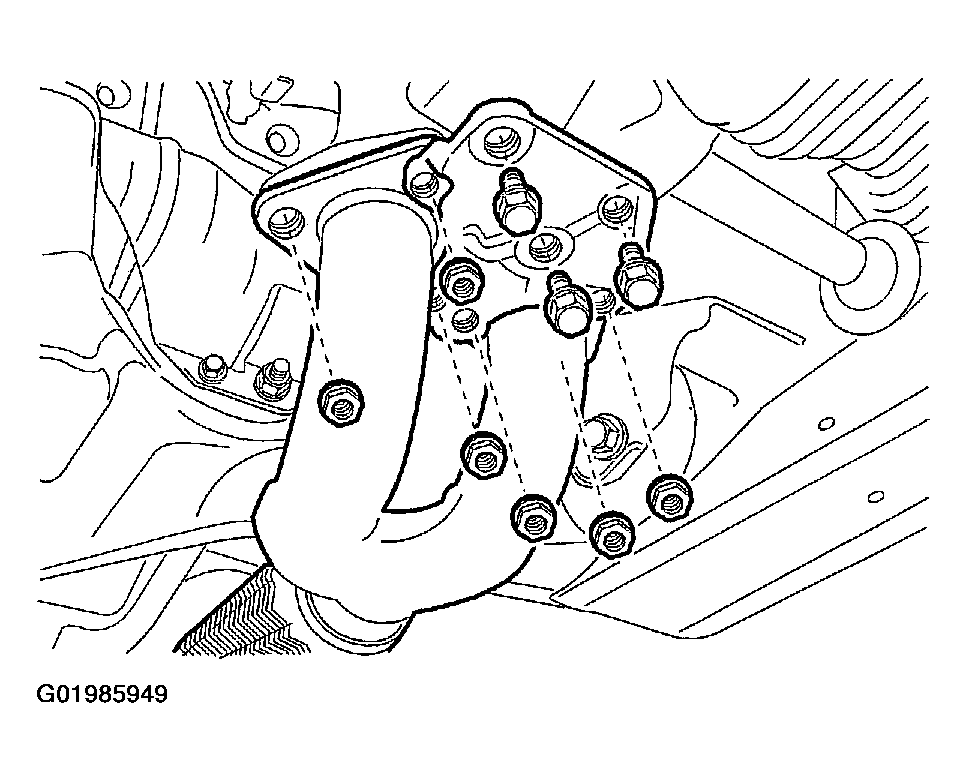

Fig 3: Installing Exhaust Front Pipe Nuts & Gasket
G01985949Courtesy of SUZUKI OF AMERICA CORP.
