Instrument Cluster Indicator Lamps Specifications

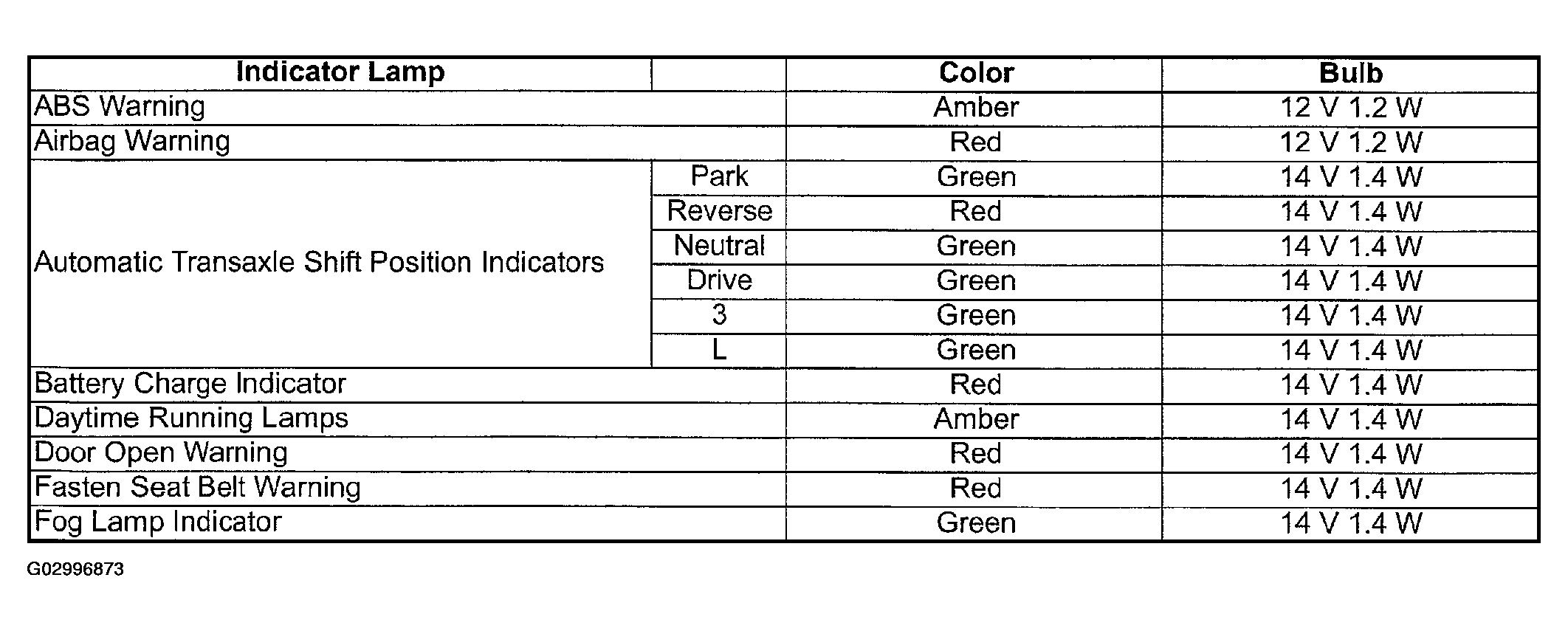

Fig 1: Instrument Cluster Indicator Lamps Specifications (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

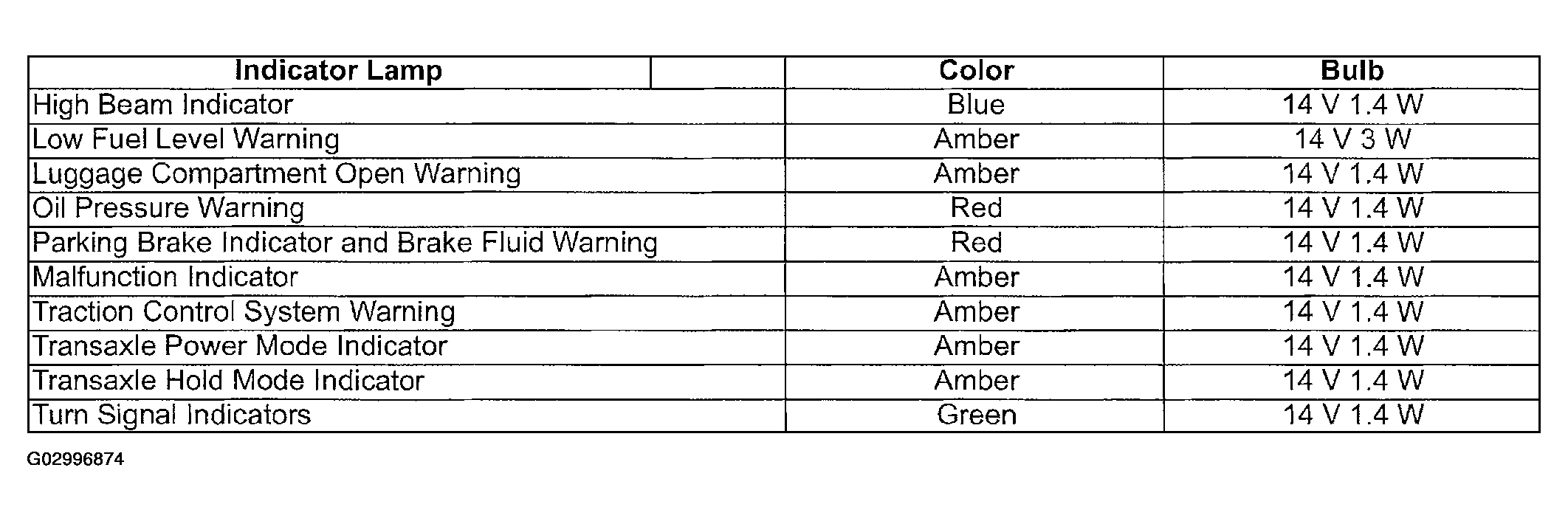

Fig 2: Instrument Cluster Indicator Lamps Specifications (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
