Speedometer / Odometer / Trip Odometer Installation

1. Install the speedometer with the screws.
   1. Tighten the speedometer screws to 2 N.m (18 lb-in).
2. Install the instrument cluster case with the screws.
3. Install the instrument cluster lens.

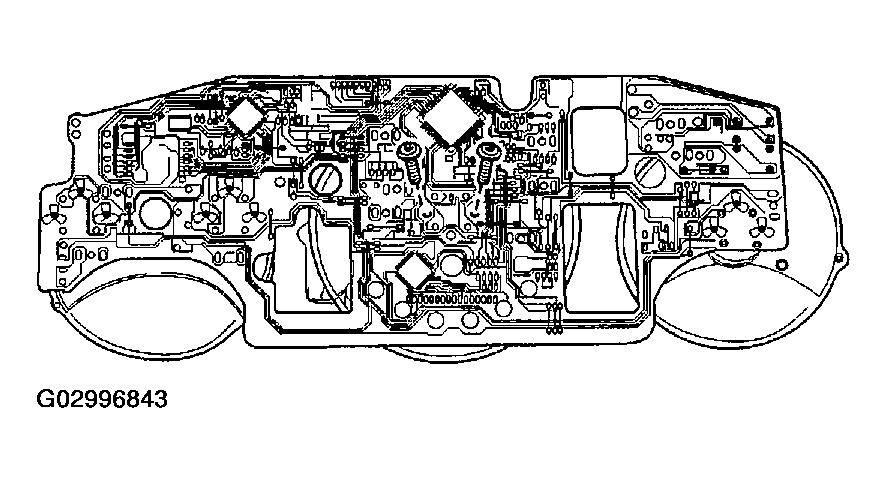

   Fig 1: Installing Instrument Cluster

   Courtesy of SUZUKI OF AMERICA CORP.
4. Install the instrument cluster. Refer to Instrument Cluster Installation  ".
5. Connect the negative battery cable.

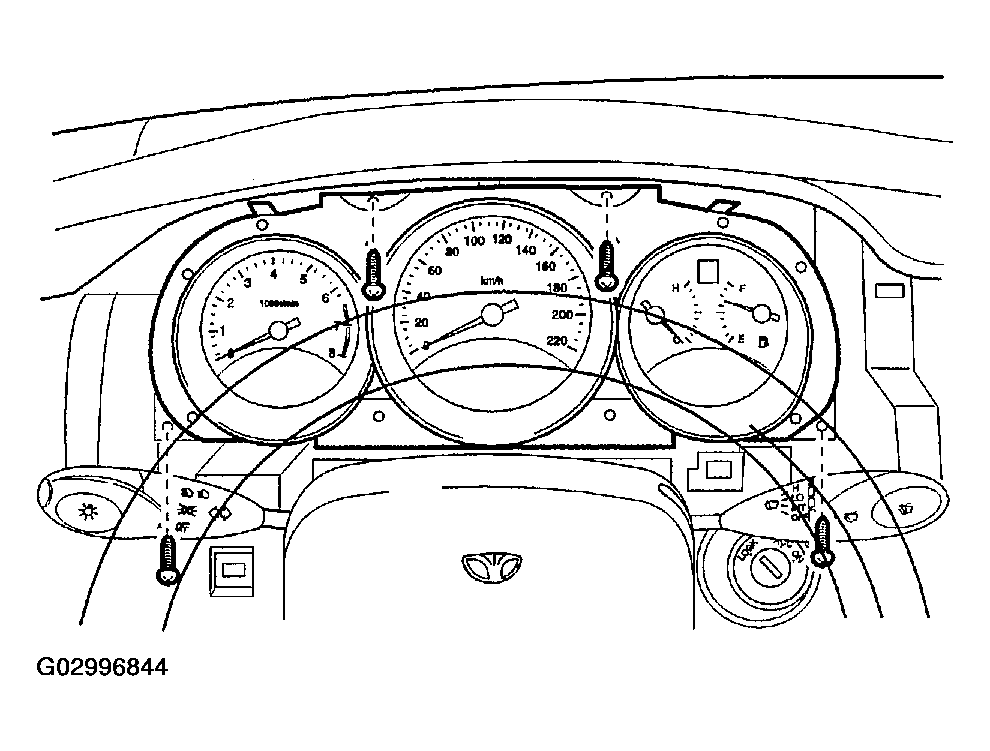

Fig 2: Installing Instrument Cluster

Courtesy of SUZUKI OF AMERICA CORP.
