Ashtray Installation

  1. Install the ashtray lamp.
  2. Install the cigar lighter. Refer to Cigar Lighter Installation  .
  3. Connect the electrical connector.
  4. Install the screws and the ashtray trim panel.
    1. Tighten the ashtray housing screws to 2.5 N.m (22 lb-in).
  5. Install the console cover.
  6. Connect the negative battery cable.

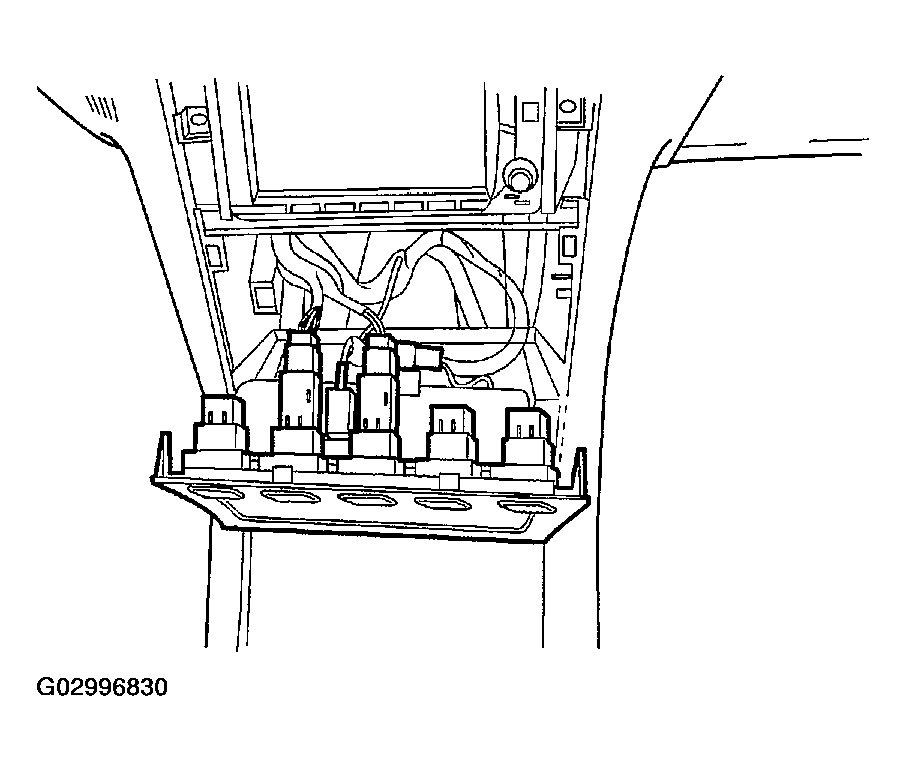

Fig 1: Installing Console Cover
G02996830Courtesy of SUZUKI OF AMERICA CORP.
