Diagnostic Information and Procedures: Speedometer

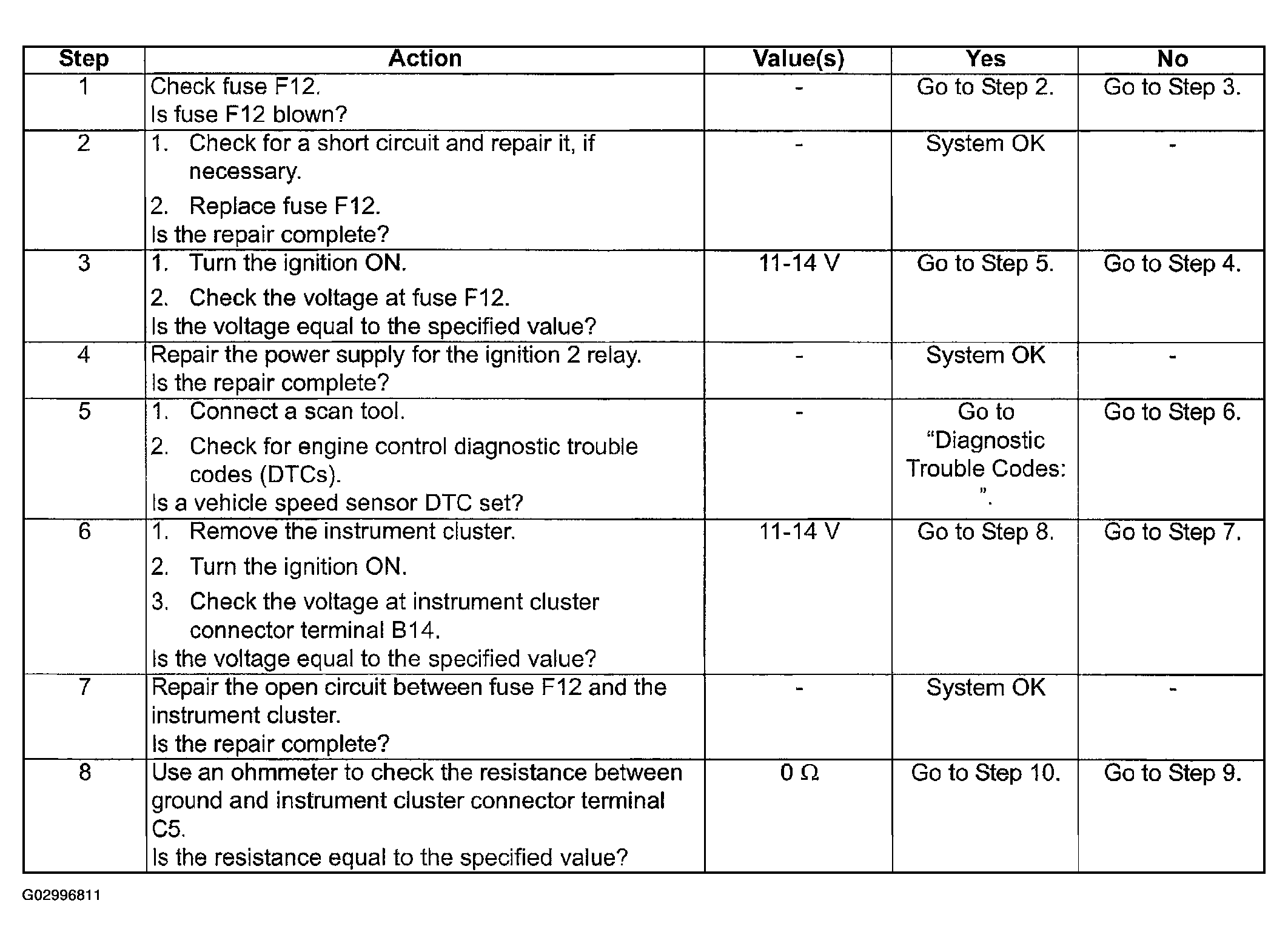

Fig 1: Speedometer Is Inoperative Diagnosis Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

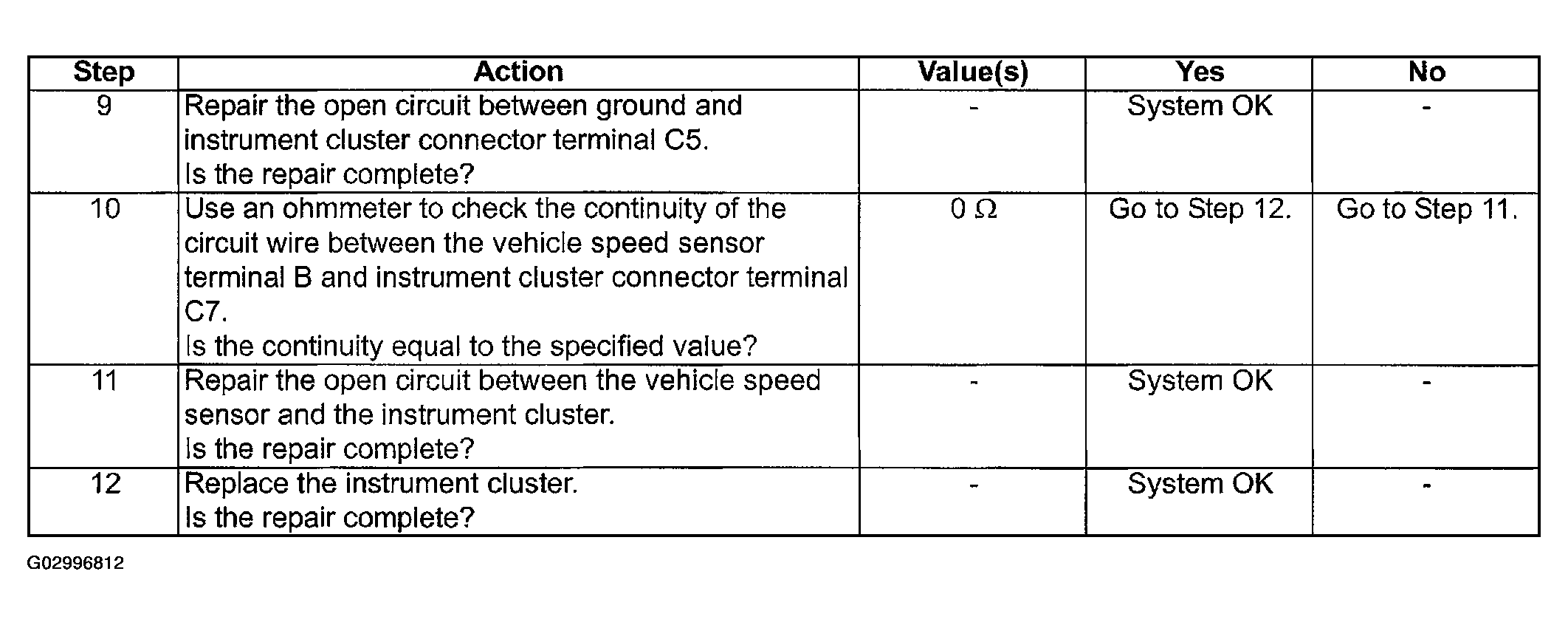

Fig 2: Speedometer Is Inoperative Diagnosis Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
