Main Fuse & Relay Box (Engine Compartment)

For main fuse and relay identification, refer to illustration. See Fig 1 and Fig 2 .

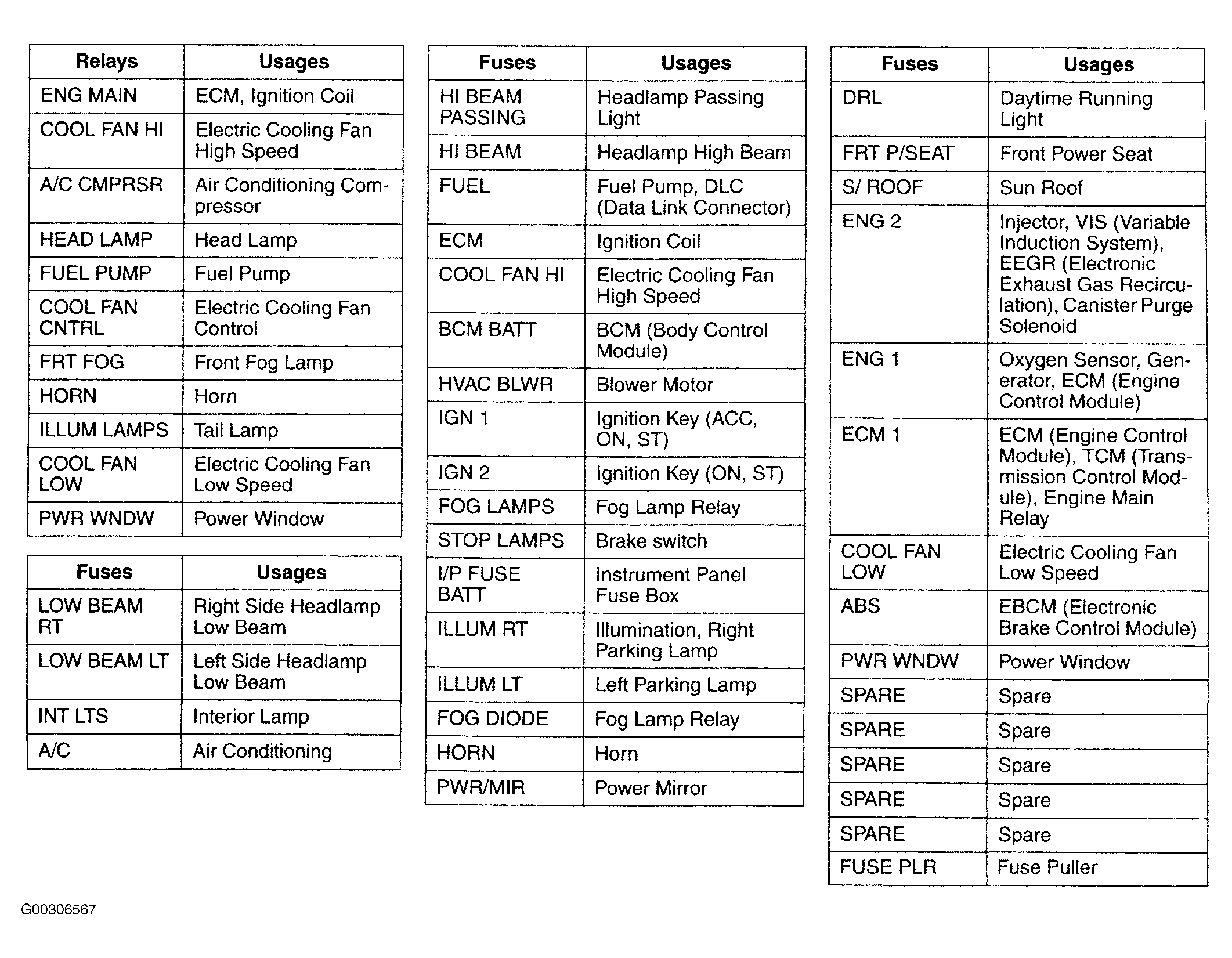

Fig 1: Identifying Engine Compartment & Under Hood Fuse/Relay Box (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

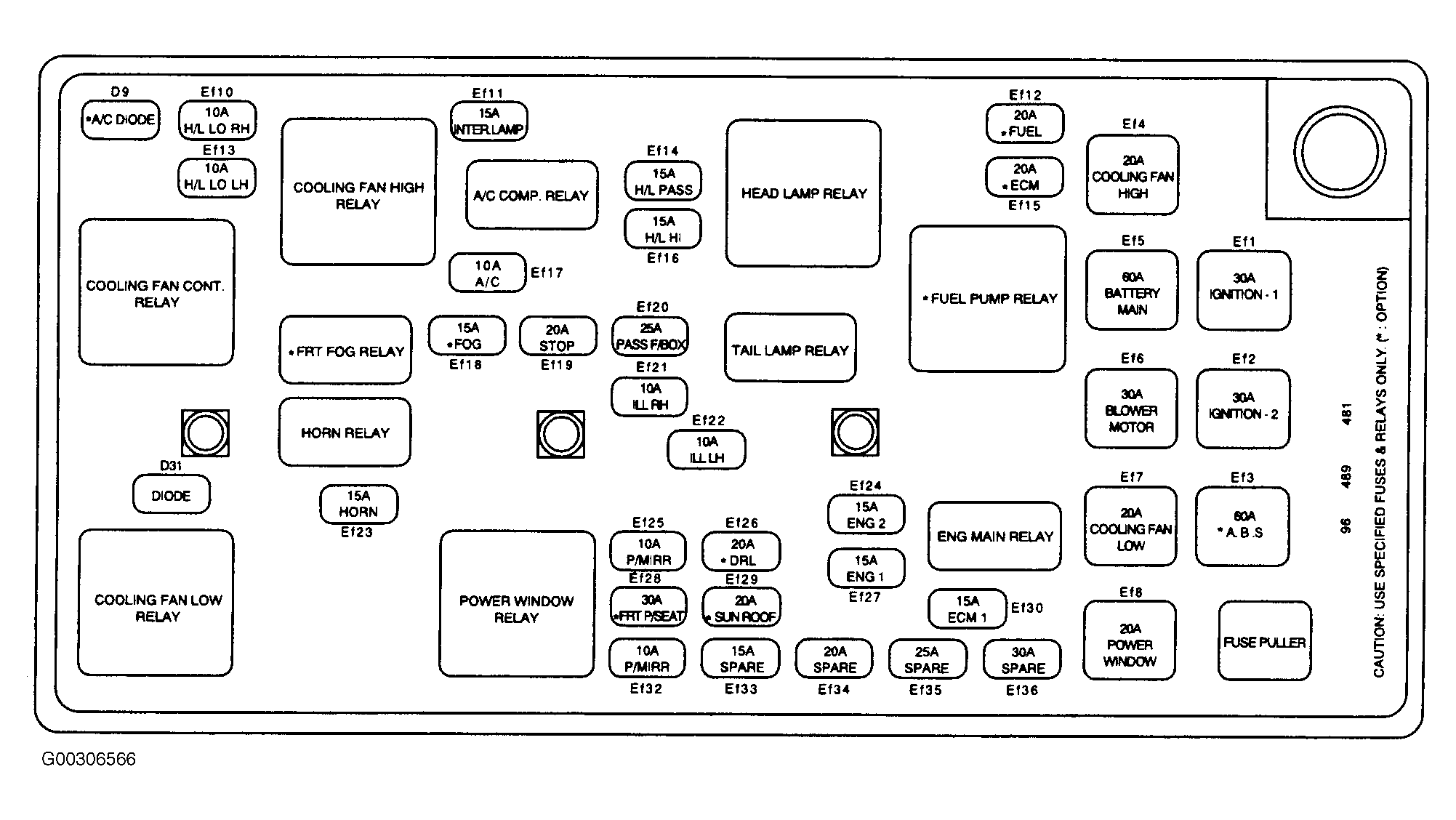

Fig 2: Identifying Engine Compartment & Under Hood Fuse/Relay Box (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
